Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

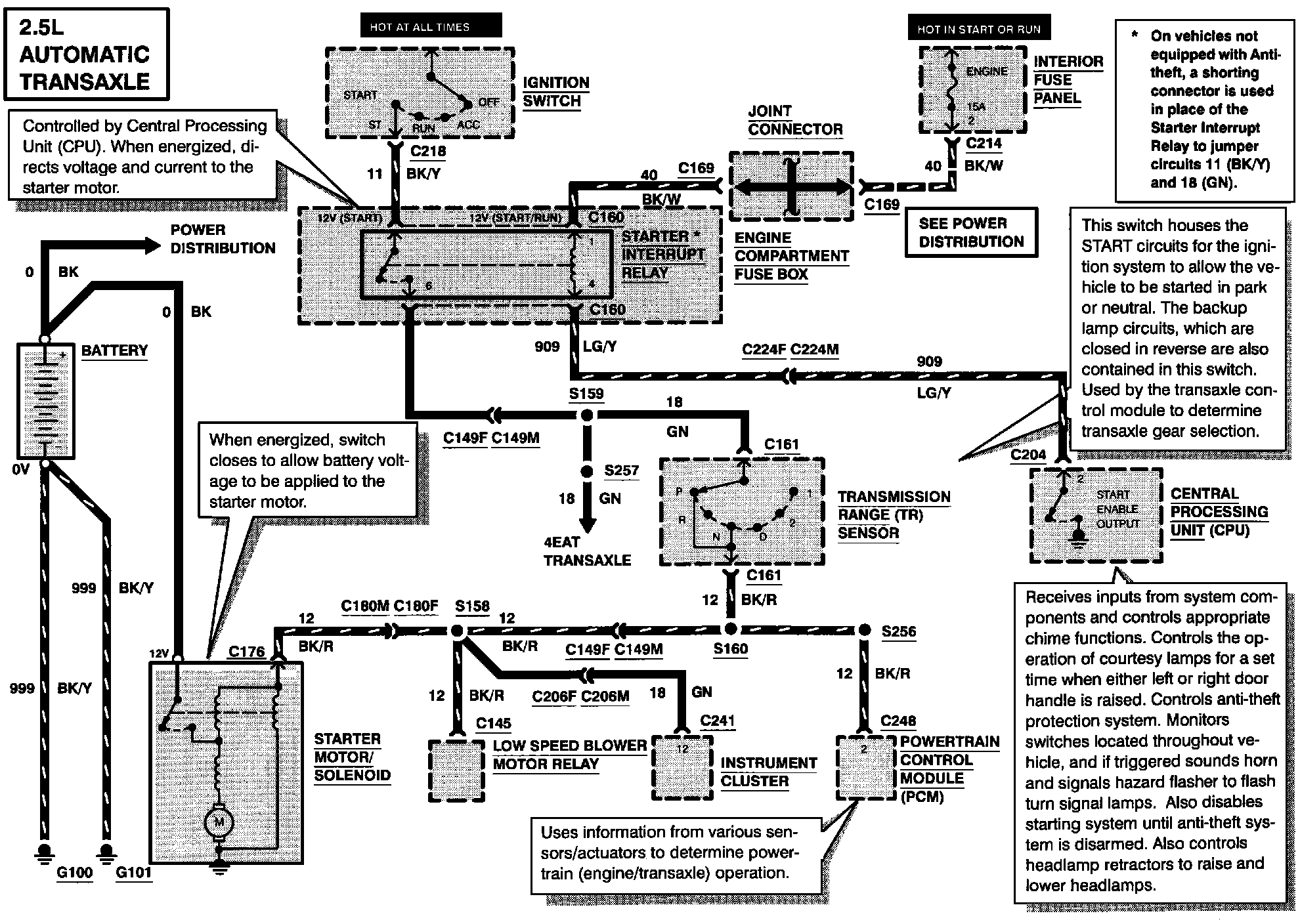

Starting System (Automatic Transaxle):

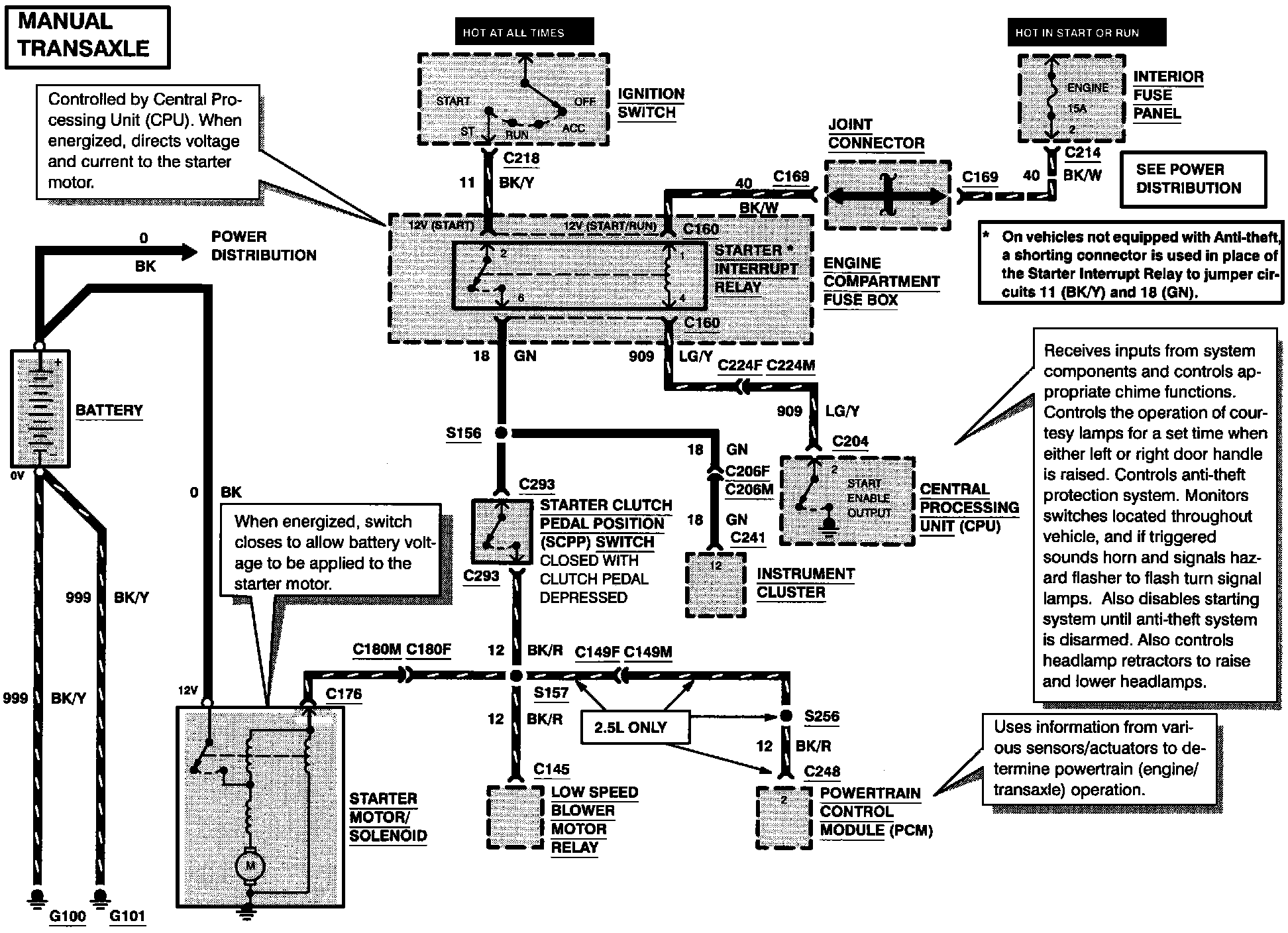

Starting System (Manual Transaxle):
