Behind Instrument Panel Views

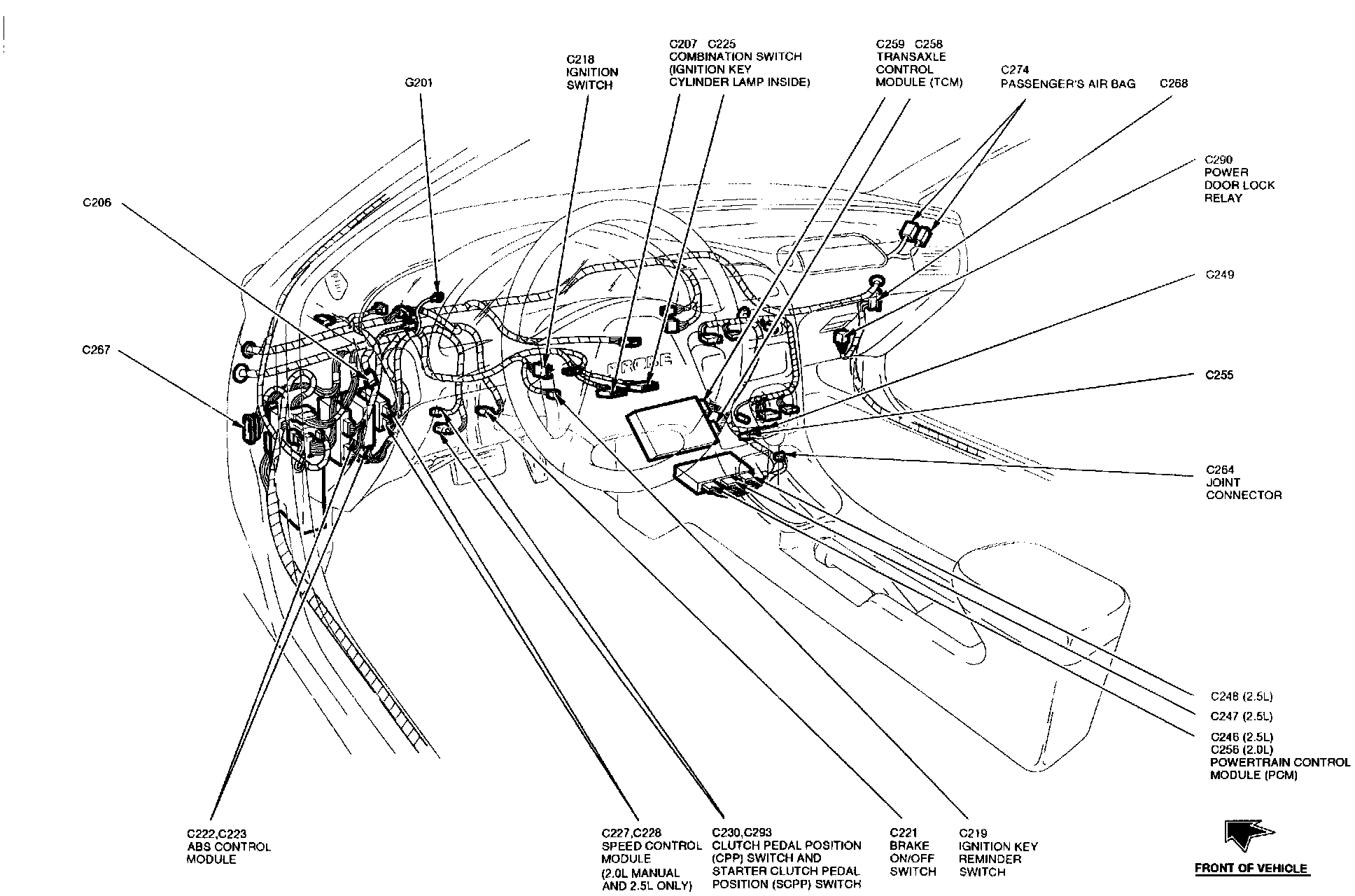

Behind Instrument Panel View:

ANTI-LOCK BRAKE SYSTEM CONTROL MODULE
BRAKE ON/OFF SWITCH
CLUTCH PEDAL POSITION SWITCH
COMBINATION SWITCH
IGNITION KEY REMINDER LAMP
IGNITION SWITCH
JOINT CONNECTOR
PASSENGER'S AIR BAG
POWER DOOR LOCK RELAY
POWERTRAIN CONTROL MODULE
SPEED CONTROL MODULE
STARTER CLUTCH PEDAL POSITION SWITCH
TRANSAXLE CONTROL MODULE

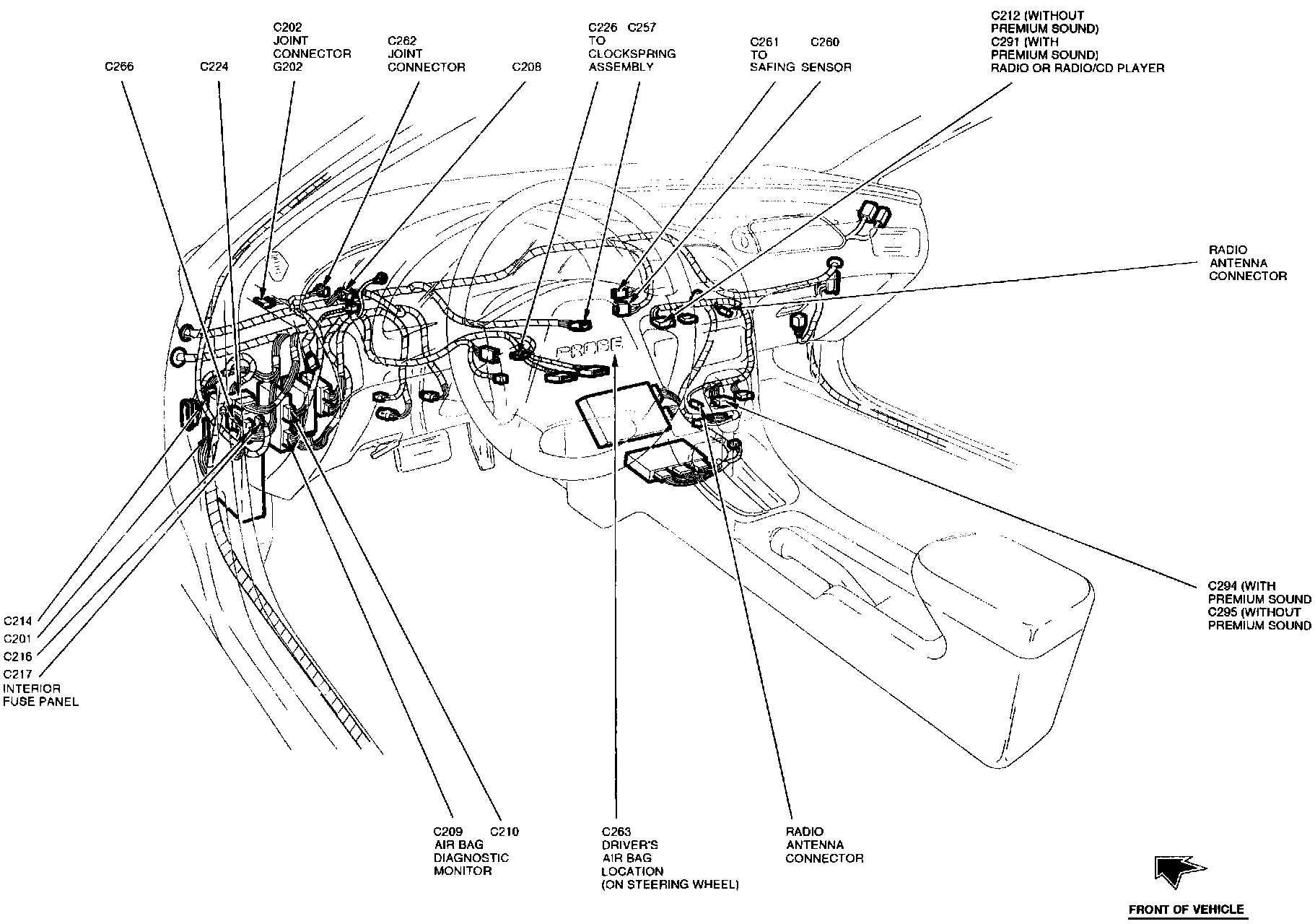

Behind Instrument Panel View:

AIR BAG DIAGNOSTIC MONITOR
CLOCKSPRING ASSEMBLY
DRIVER'S AIR BAG
INTERIOR FUSE PANEL
JOINT CONNECTOR
RADIO ANTENNA CONNECTOR
RADIO OR RADIO/COMPACT DISC PLAYER
SAFING SENSOR

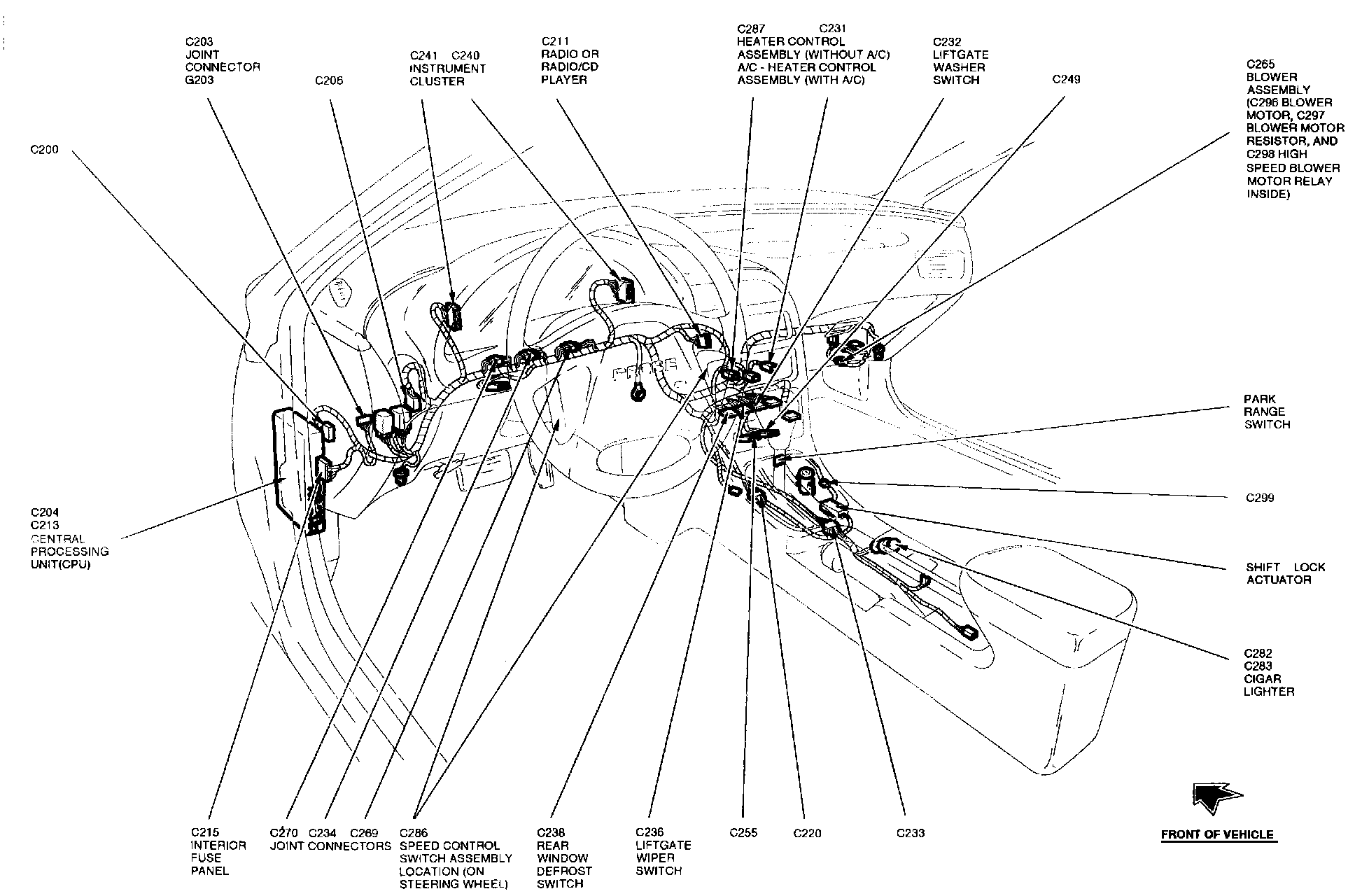

Behind Instrument Panel View:

A/C-HEATER CONTROL ASSEMBLY
BLOWER ASSEMBLY
BLOWER MOTOR
BLOWER MOTOR RESISTOR
CENTRAL PROCESSING UNIT
CIGAR LIGHTER
HEATER CONTROL ASSEMBLY
HIGH SPEED BLOWER MOTOR RELAY
INSTRUMENT CLUSTER
INTERIOR FUSE PANEL
JOINT CONNECTORS
LIFTGATE WASHER SWITCH
LIFTGATE WIPER SWITCH
PARK RANGE SWITCH
RADIO
RADIO/COMPACT DISC PLAYER
REAR WINDOW DEFROST SWITCH
SHIFT LOCK ACTUATOR
SPEED CONTROL SWITCH ASSEMBLY

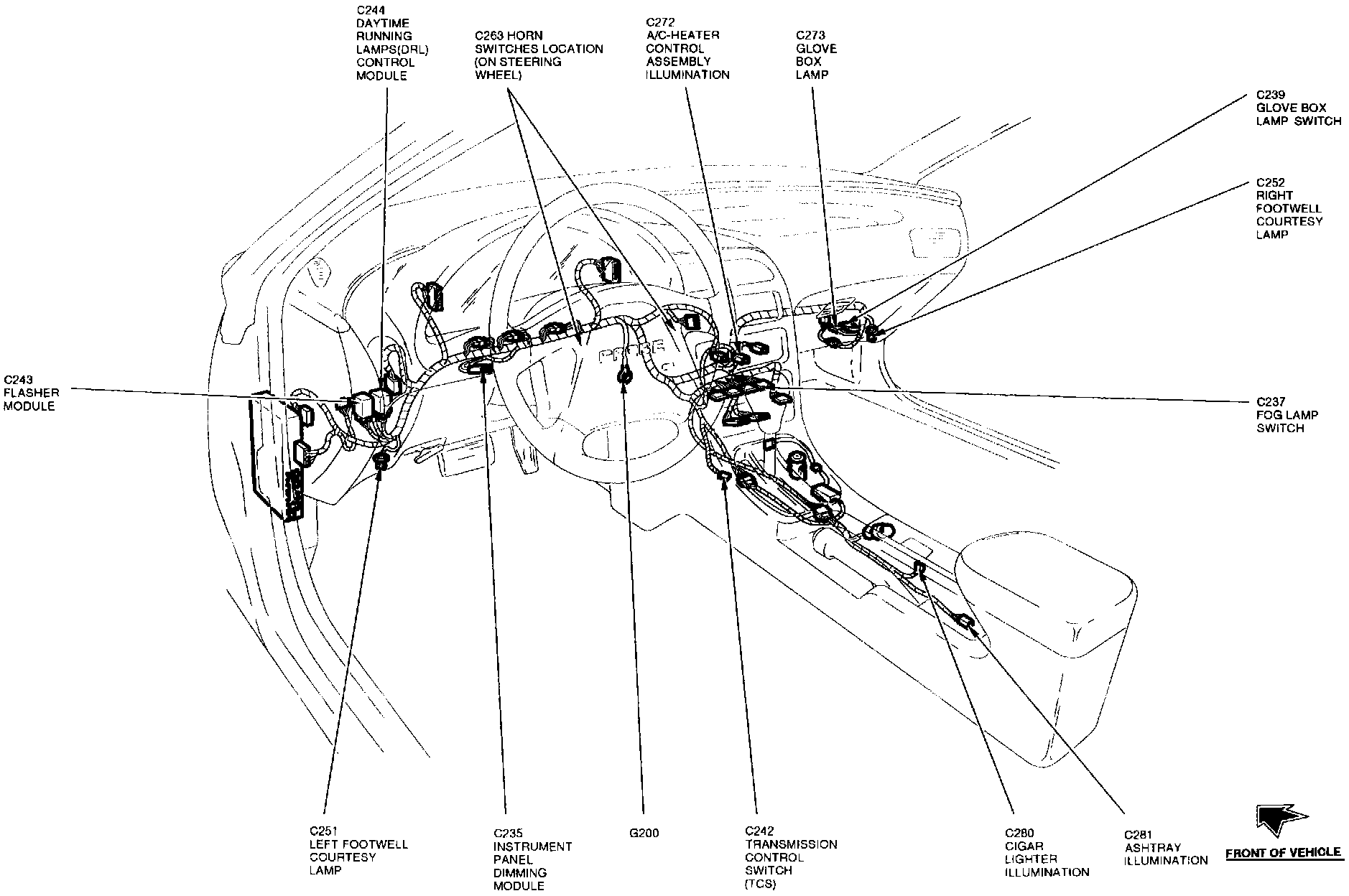

Behind Instrument Panel View:

A/C-HEATER CONTROL ASSEMBLY ILLUMINATION
ASHTRAY ILLUMINATION
CIGAR LIGHTER ILLUMINATION
DAYTIME RUNNING LAMPS CONTROL MODULE
FLASHER MODULE
FOG LAMP SWITCH
GLOVE BOX LAMP
GLOVE BOX LAMP SWITCH
HORN SWITCHES
INSTRUMENT PANEL DIMMING MODULE
LEFT FOOTWELL COURTESY LAMP
RIGHT FOOTWELL COURTESY LAMP
TRANSMISSION CONTROL SWITCH
