Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1995
>>
Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests
>>
STG - Switch to Ground
>>

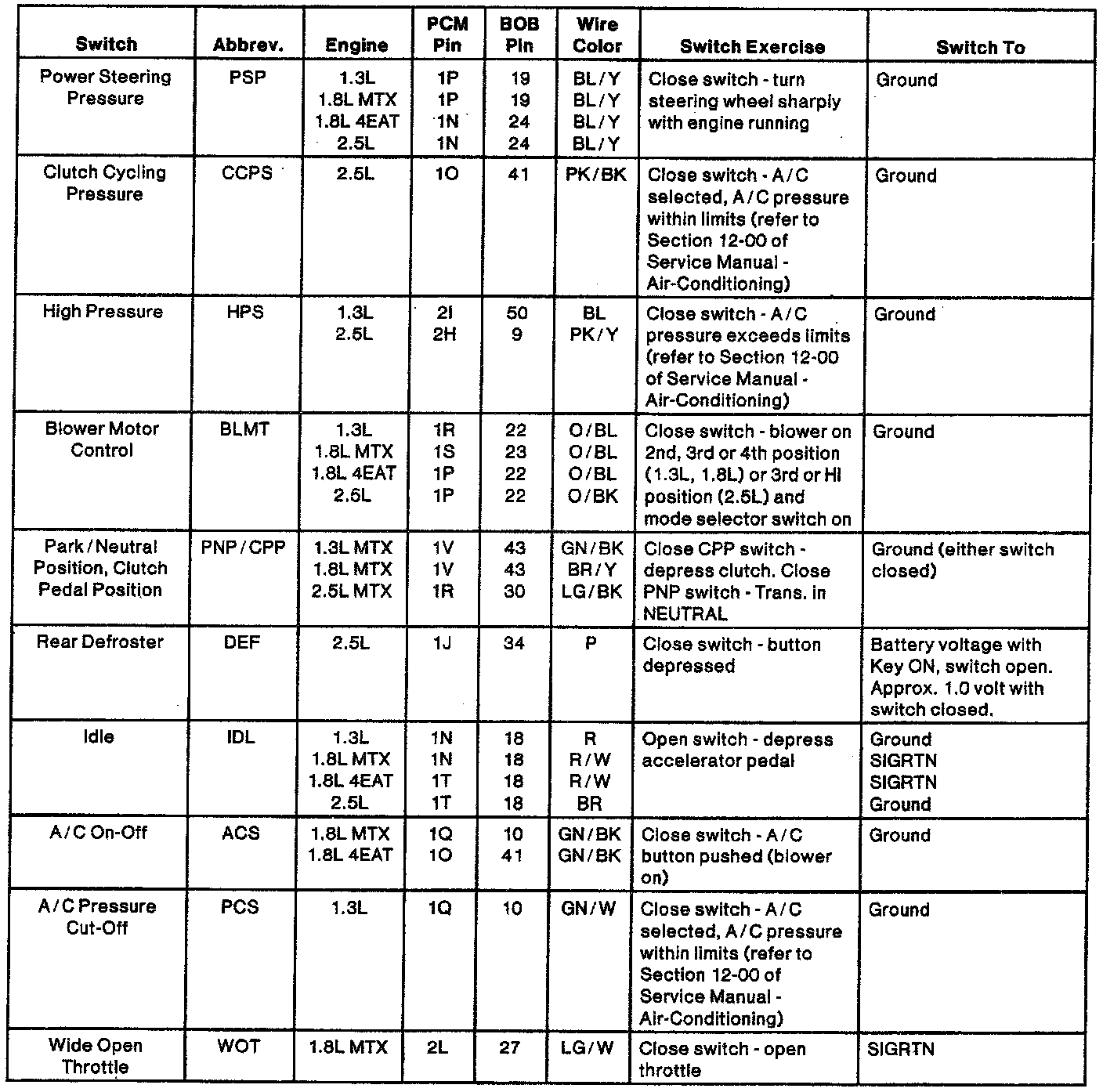

STG Circuit Data
STG Circuit Data
Circuit Data Sheet:
