Home >> Ford >> 1995 >> Taurus V6-182 3.0L DOHC SHO >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

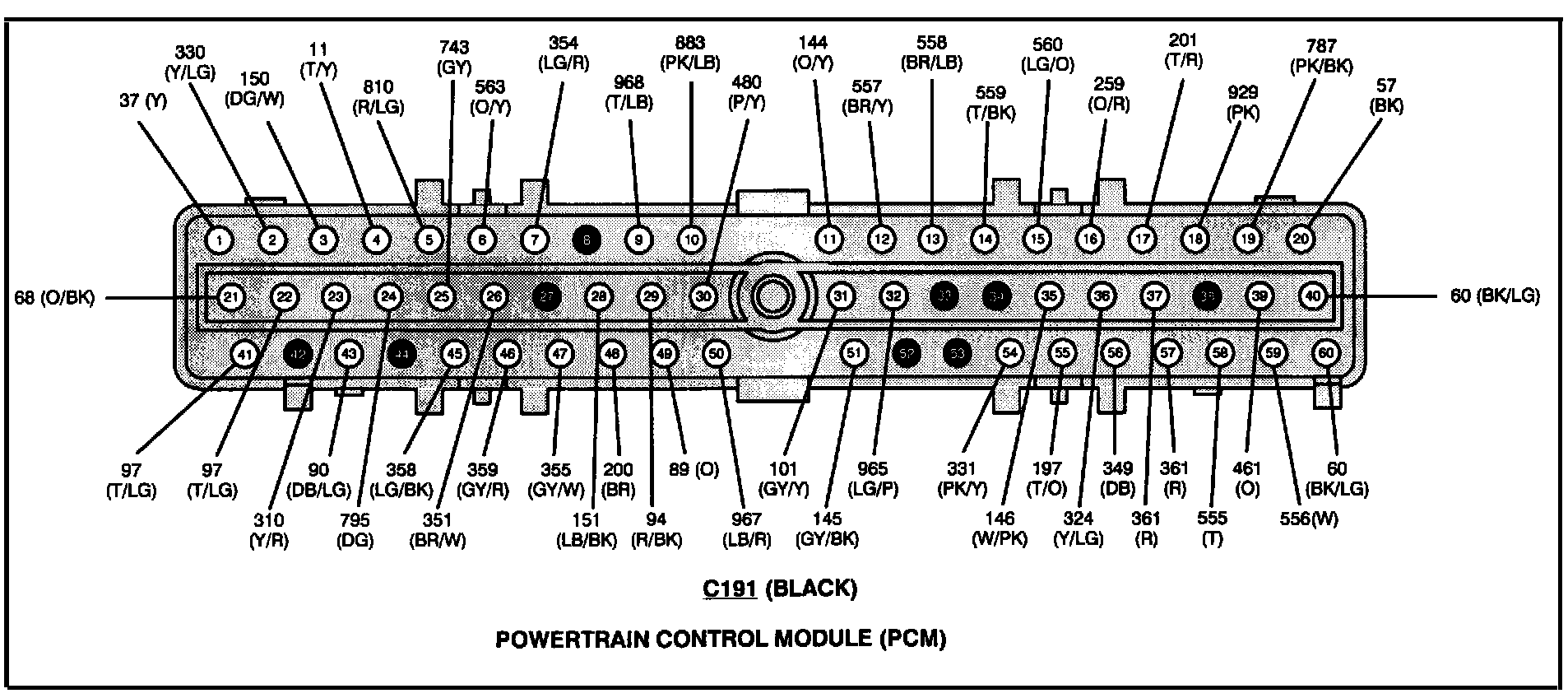

Powertrain Control Module (Part 1 0f 2):



Powertrain Control Module (Part 2 0f 2):
