Engine Views

Engine View:

ANTI-LOCK BRAKE CONTROL MODULE
AX4N/AX4S TRANSAXLE
CONSTANT CONTROL RELAY MODULE
DEACTIVATOR SWITCH
EVAPORATIVE CANISTER PURGE SOLENOID
EGR VACUUM REGULATOR SOLENOID
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE SENSOR
KNOCK SENSOR
LEFT FRONT SIDE MARKER LAMP
LH ELECTRIC COOLING FAN
MASS AIR FLOW SENSOR
POWER STEERING PRESSURE SWITCH
POWERTRAIN CONTROL MODULE
PRESSURE FEEDBACK EGR SENSOR
REFRIGERANT CONTAINMENT SWITCH
RH ELECTRIC COOLING FAN
RIGHT FRONT BRAKE SENSOR
TURBINE SHAFT SPEED SENSOR
VEHICLE SPEED SENSOR

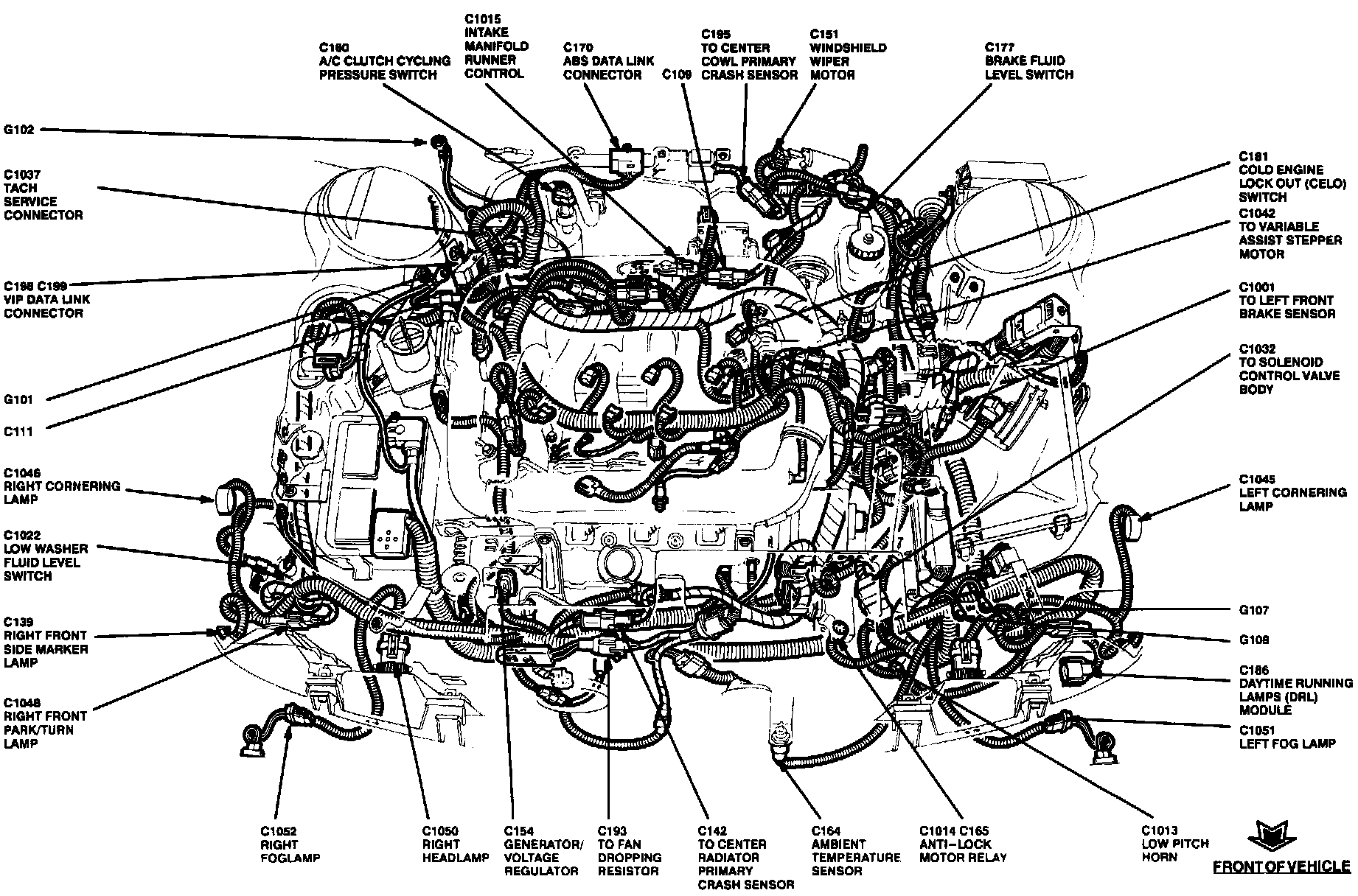

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
AMBIENT TEMPERATURE SENSOR
ANTI-LOCK BRAKE SYSTEM DATA LINK CONNECTOR
ANTI-LOCK MOTOR RELAY
BRAKE FLUID LEVEL SWITCH
CENTER COWL PRIMARY CRASH SENSOR
CENTER RADIATOR PRIMARY CRASH SENSOR
COLD ENGINE LOCK OUT SWITCH
DAYTIME RUNNING LAMPS MODULE
FAN DROPPING RESISTOR
GENERATOR/VOLTAGE REGULATOR
INTAKE MANIFOLD RUNNER CONTROL
LEFT CORNERING LAMP
LEFT FOG LAMP
LEFT FRONT BRAKE SENSOR
LOW PITCH HORN
LOW WASHER FLUID LEVEL SWITCH
RIGHT CORNERING LAMP
RIGHT FOG LAMP
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT HEADLAMP
SOLENOID CONTROL VALVE BODY
TACH SERVICE CONNECTOR
VARIABLE ASSIST STEPPER MOTOR
VIP DATA LINK CONNECTOR
WINDSHIELD WIPER MOTOR

Engine View:

A/C CLUTCH FIELD COIL
ANTI-LOCK BRAKE FLUID LEVEL SWITCH
ANTI-LOCK POWER RELAY
CAMSHAFT POSITION SENSOR
COOLANT TEMPERATURE SENDER
CRANKSHAFT POSITION SENSOR
ENGINE COMPARTMENT LAMP
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE OIL PRESSURE SWITCH
FUEL INJECTORS
HIGH PITCH HORN
IGNITION COIL
IGNITION CONTROL MODULE
LEFT FRONT PARK/TURN LAMP
LEFT HEADLAMP
LOW ENGINE OIL LEVEL SWITCH
RADIATOR COOLANT SENSOR
RADIO NOISE CAPACITOR
SPARK OUTPUT CHECK CONNECTOR #1
SPARK OUTPUT CHECK CONNECTOR #2
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
STARTER MOTOR/SOLENOID
THROTTLE POSITION SENSOR
TRANSMISSION RANGE SENSOR
VARIABLE ASSIST POWER STEERING DATA LINK CONNECTOR
WINDSHIELD WASHER PUMP MOTOR
