Data Link Connector
>>
Diagrams
>>
Connector Views
>>

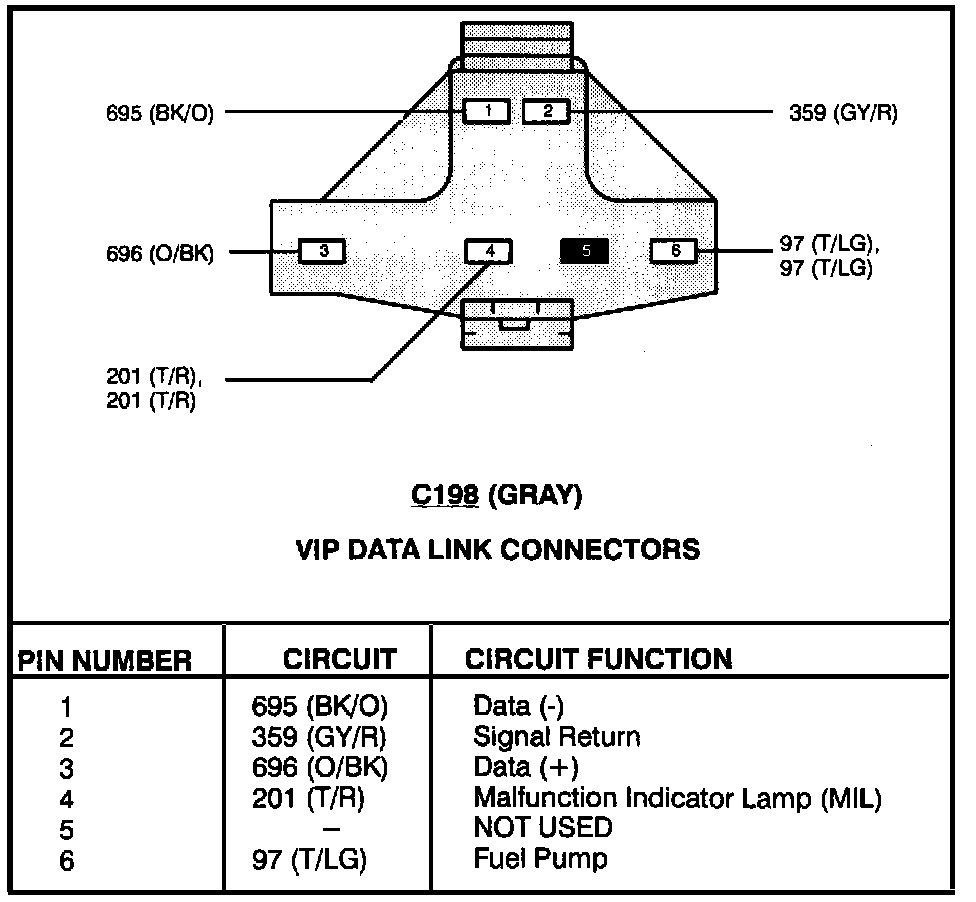

VIP Data Link Connectors
VIP Data Link Connectors
VIP Data Link Connectors:
VIP Data Link Connectors:
