Control Assembly: Testing and Inspection

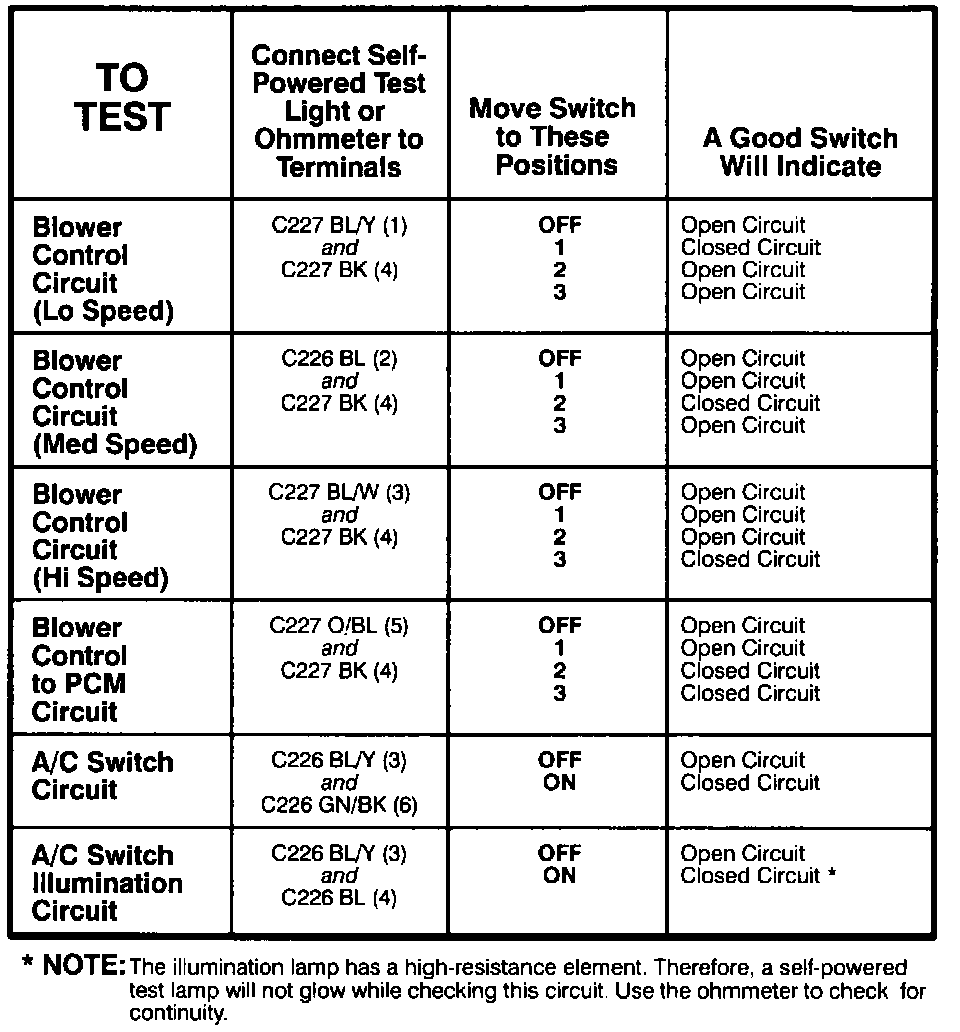

Heater-A/C Control Switch - Component Testing Switch:

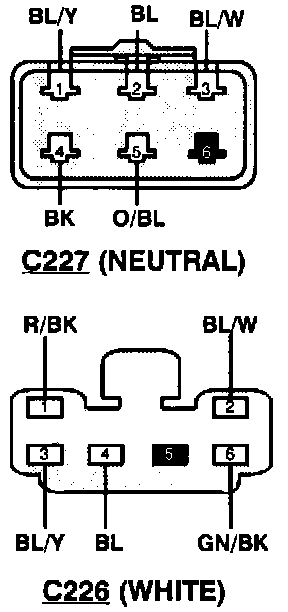

Heater-A/C Control Switch - Terminals:

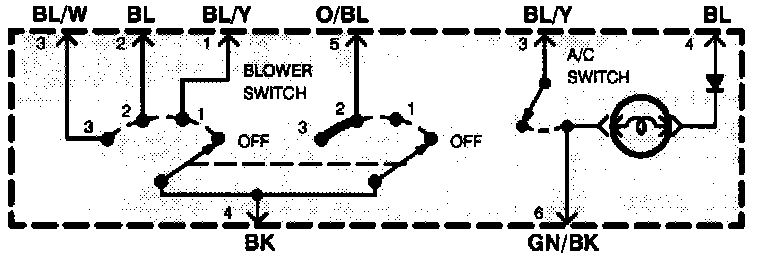

Heater-A/C Control Switch - Schematic - Heater A/C Control Unit:
