Engine Compartment Views

Engine View:

A/C RELAY
ANTI-LOCK BRAKE SYSTEM MAIN RELAY
BATTERY
BLOWER MOTOR RELAY
CANISTER PURGE SOLENOID
CONDENSER FAN MOTOR
COOLING FAN MOTOR
COOLING FAN RELAY
DATA LINK CONNECTOR #1
DAYTIME RUNNING LAMPS RESISTOR
EGR VALVE POSITION SENSOR
ENGINE COMPARTMENT FUSE BOX
ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTORS
GENERATOR/VOLTAGE REGULATOR
HORN
JOINT CONNECTOR
LEFT FRONT SIDE MARKER LAMP
LEFT FRONT TURN SIGNAL LAMP
LH HEADLAMP
RH HEADLAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT FRONT TURN SIGNAL LAMP
WINDSHIELD WIPER MOTOR

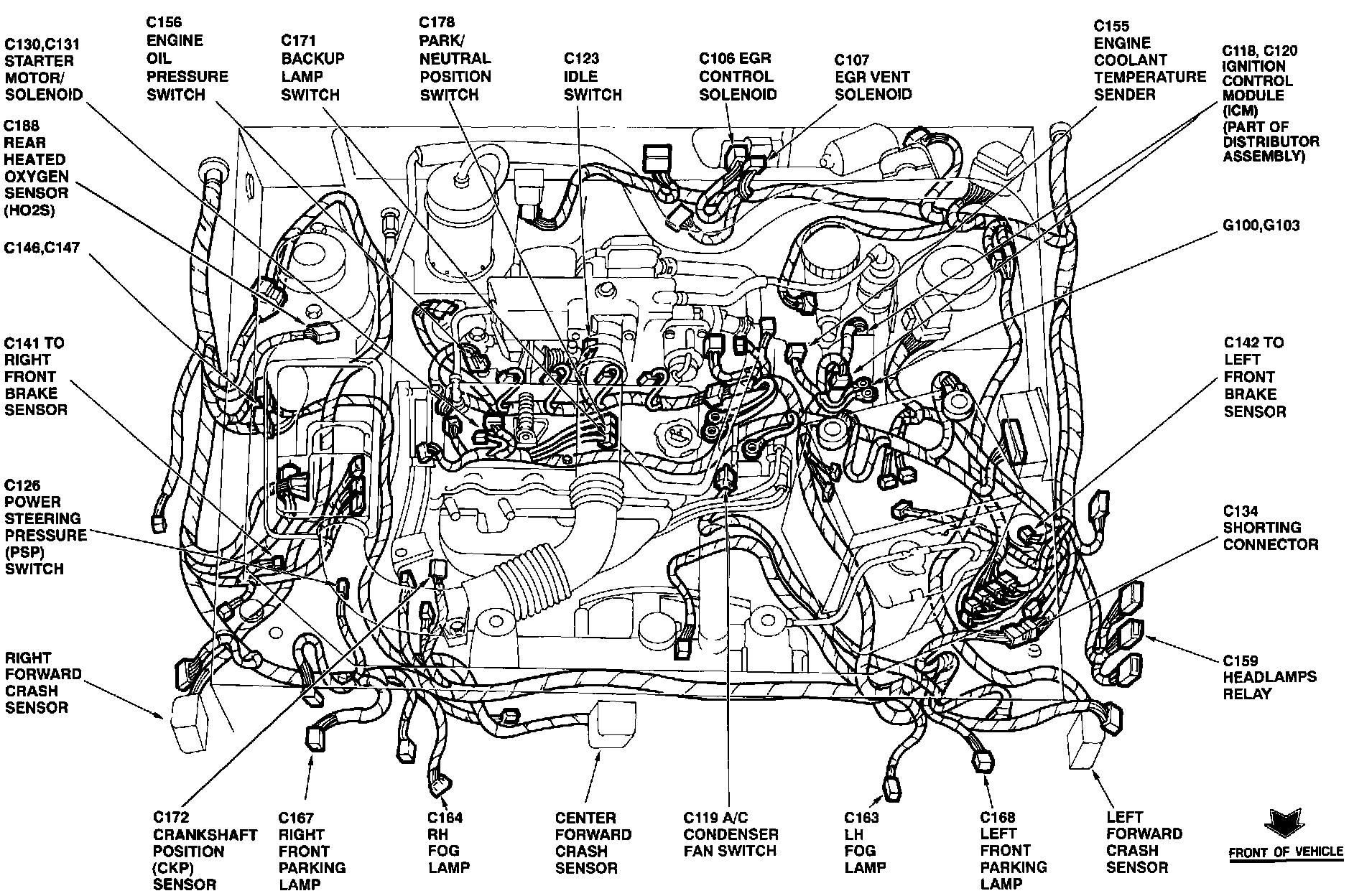

Engine View:

BACKUP LAMP SWITCH
CENTER FORWARD CRASH SENSOR
CONDENSER FAN SWITCH
CRANKSHAFT POSITION SENSOR
EGR CONTROL SOLENOID
EGR VENT SOLENOID
ENGINE COOLANT TEMPERATURE SENDER
ENGINE OIL PRESSURE SWITCH
HEADLAMPS RELAY
IDLE SWITCH
IGNITION CONTROL MODULE
LEFT FORWARD CRASH SENSOR
LEFT FRONT BRAKE SENSOR
LEFT FRONT PARKING LAMP
LH FOG LAMP
PARK/NEUTRAL POSITION SWITCH
POWER STEERING PRESSURE SWITCH
REAR HEATED OXYGEN SENSOR
RH FOG LAMP
RIGHT FORWARD CRASH SENSOR
RIGHT FRONT BRAKE SENSOR
RIGHT FRONT PARKING LAMP
SHORTING CONNECTOR
STARTER MOTOR/SOLENOID

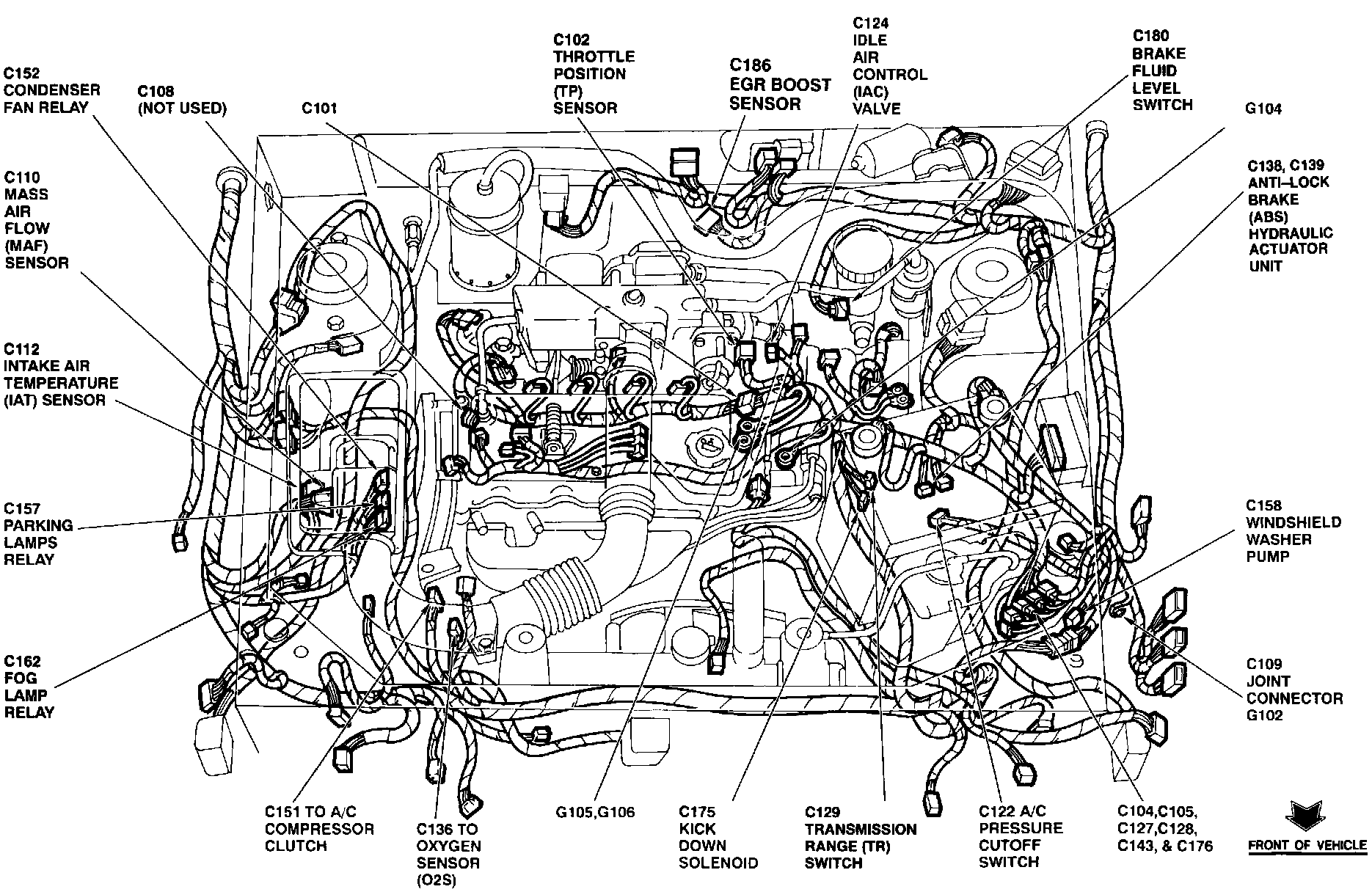

Engine View:

A/C COMPRESSOR CLUTCH
ANTI-LOCK BRAKE SYSTEM HYDRAULIC ACTUATOR UNIT
BRAKE FLUID LEVEL SWITCH
CONDENSER FAN RELAY
EGR BOOST SENSOR
FOG LAMP RELAY
IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE SENSOR
JOINT CONNECTOR
KICK DOWN SOLENOID
MASS AIR FLOW SENSOR
OXYGEN SENSOR
PARKING LAMPS RELAY
PRESSURE CUTOFF SWITCH
THROTTLE POSITION SENSOR
TRANSMISSION RANGE SWITCH
WINDSHIELD WASHER PUMP
