Instrument Panel Views

Instrument Panel View:

A/C EVAPORATIVE DE-ICING SWITCH
AIR BAG DIAGNOSTIC MODULE
BLOWER MOTOR
BLOWER MOTOR RESISTORS
DATA LINK CONNECTOR #2
DAYTIME RUNNING LAMPS RELAY
FUEL PUMP RELAY
HEATER-A/C CONTROL UNIT
HORN RELAY
INSTRUMENT CLUSTER
JOINT CONNECTOR
MULTI-FUNCTION SWITCH
PASSENGER'S AIR BAG
POWERTRAIN CONTROL MODULE
REAR WINDOW DEFROSTER/FOG LAMP SWITCH
WARNING CHIME MODULE

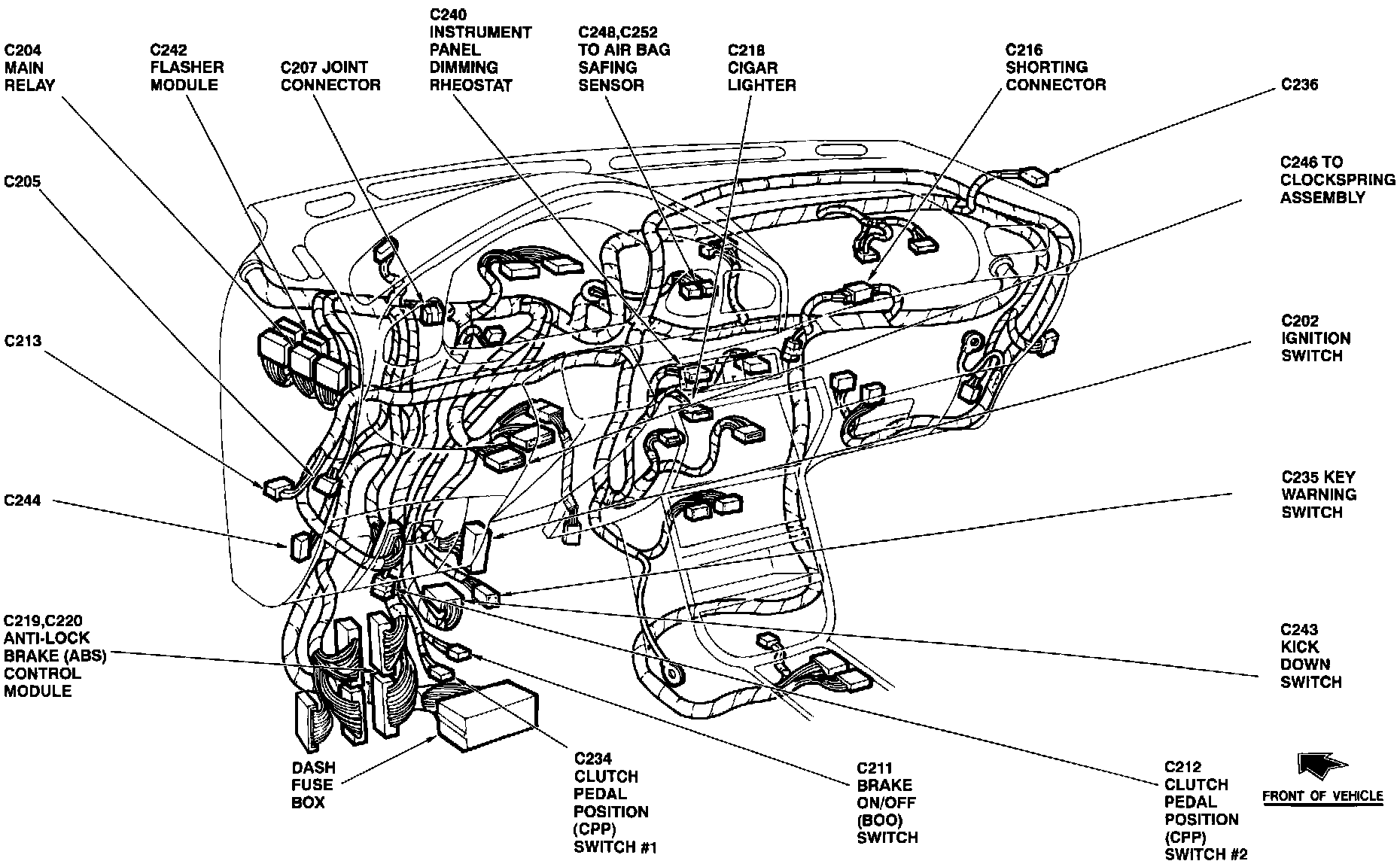

Instrument Panel View:

AIR BAG SAFING SENSOR
ANTI-LOCK BRAKE SYSTEM CONTROL MODULE
BRAKE ON/OFF SWITCH
CIGAR LIGHTER
CLOCKSPRING ASSEMBLY
CLUTCH PEDAL POSITION SWITCH #1
CLUTCH PEDAL POSITION SWITCH #2
DASH FUSE BOX
FLASHER MODULE
IGNITION SWITCH
INSTRUMENT PANEL DIMMING RHEOSTAT
JOINT CONNECTOR
KEY WARNING SWITCH
KICK DOWN SWITCH
MAIN RELAY
SHORTING CONNECTOR
