Home >> Ford >> 1996 >> Escort L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> AM/FM/Compact Disc >> Output

Output

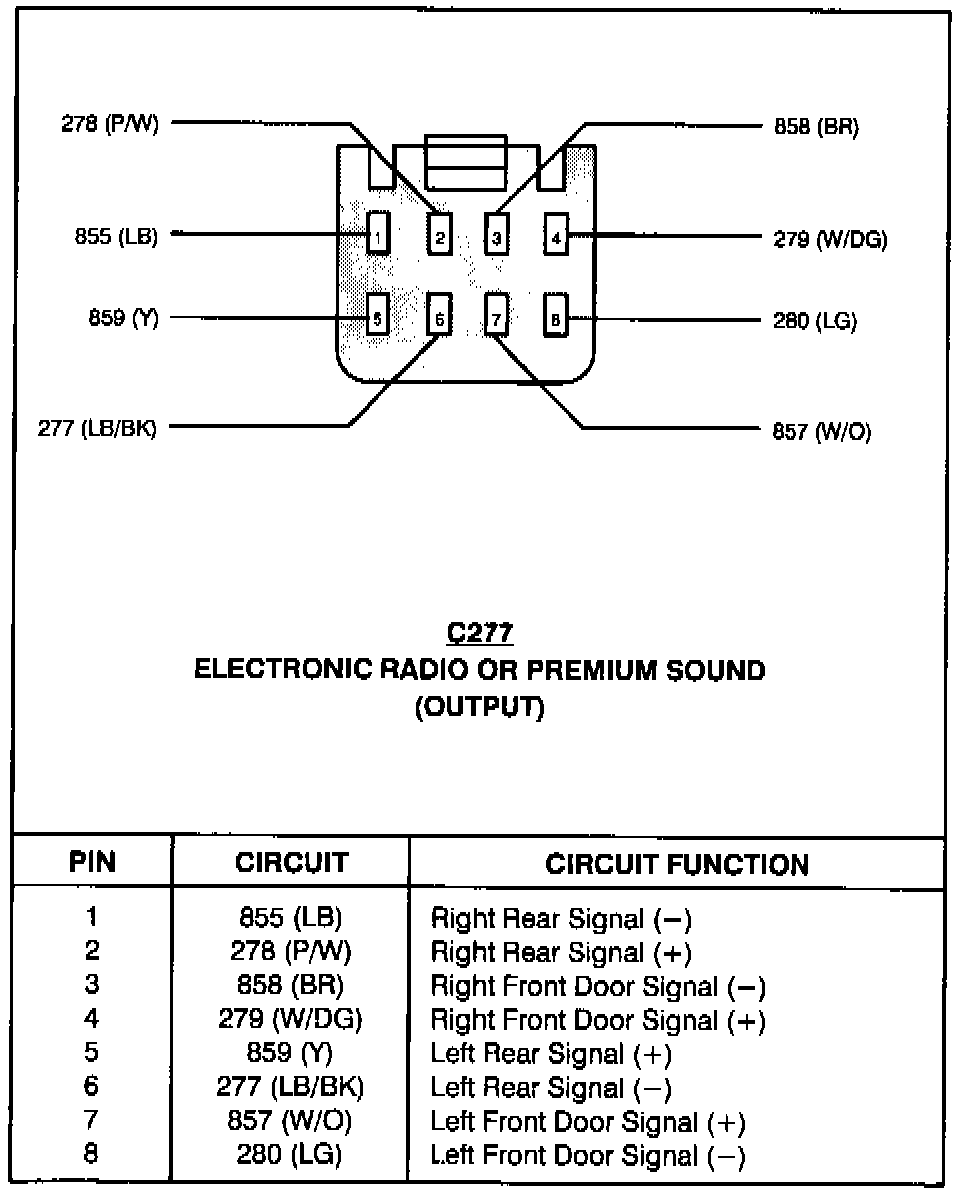

Electronic Radio Or Premium Sound (Output):
