Relationship of Input and Output Devices

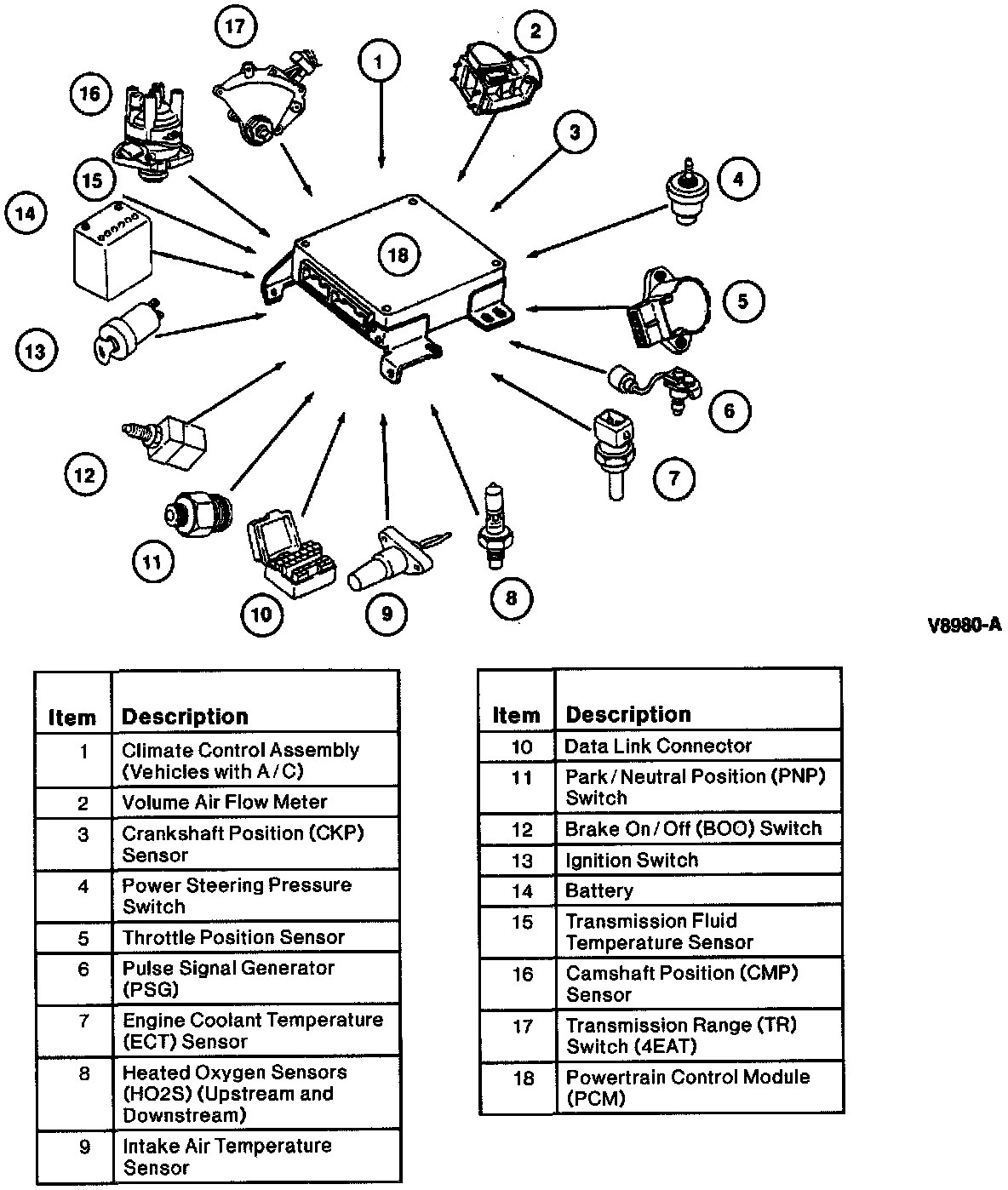

Powertrain Control Module Inputs:

Powertrain Control Module Outputs:

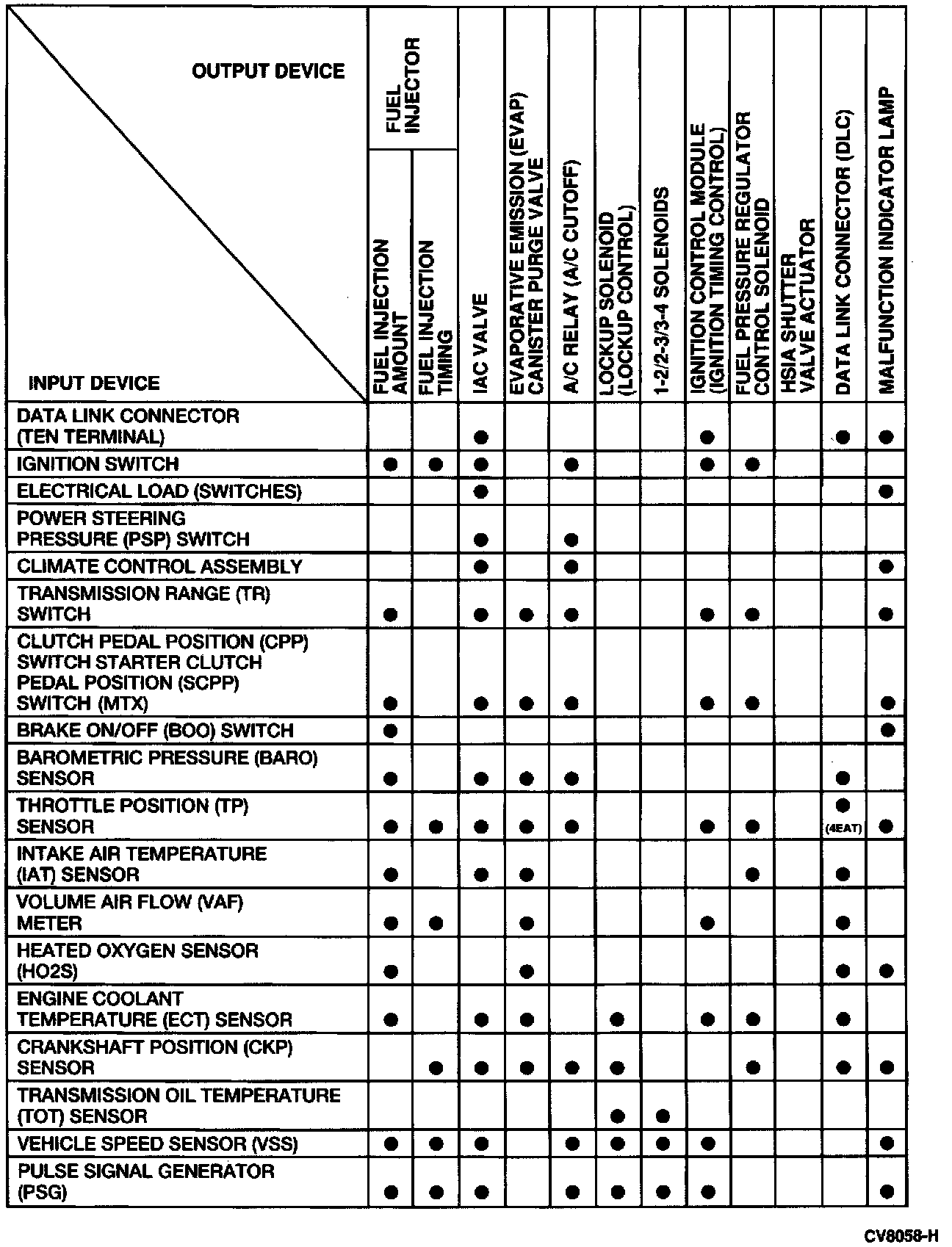

Input/Output Device Relationships:
