Vehicles Built Before 12/14/95
Vehicles Built Before 12/14/95

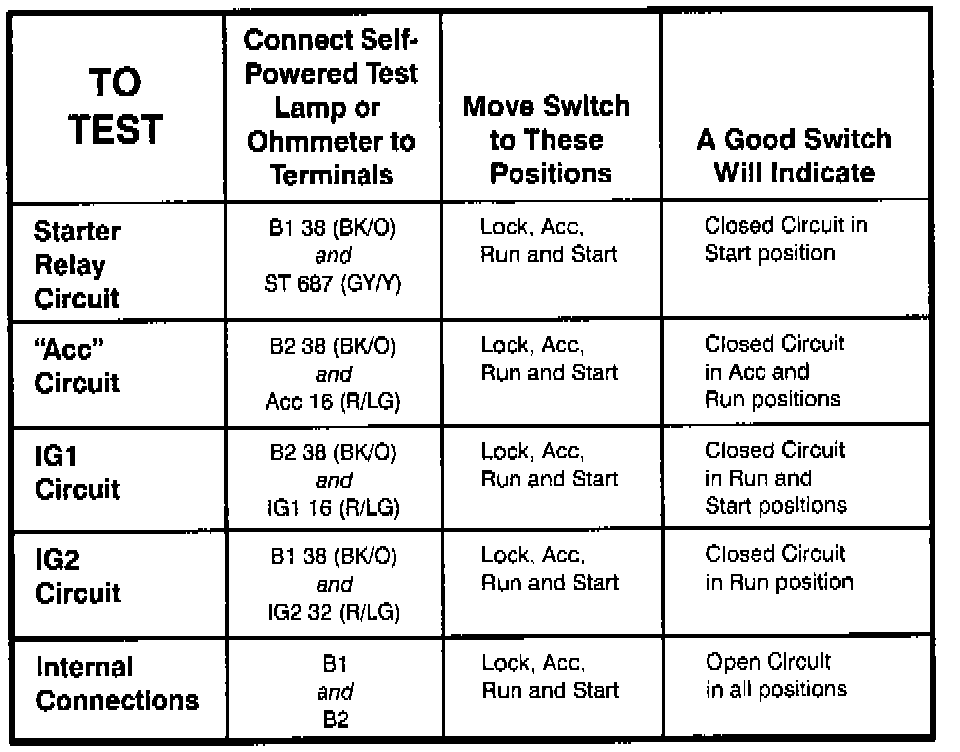

Ignition Switch - Component Testing Procedure:
Ignition Switch - Terminal Locations:

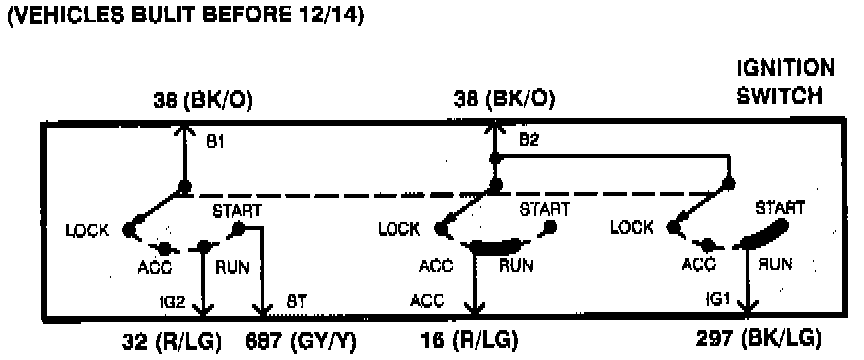

Ignition Switch - Schematic:
