Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Amplifier
>>
Except Subwoofer
Except Subwoofer

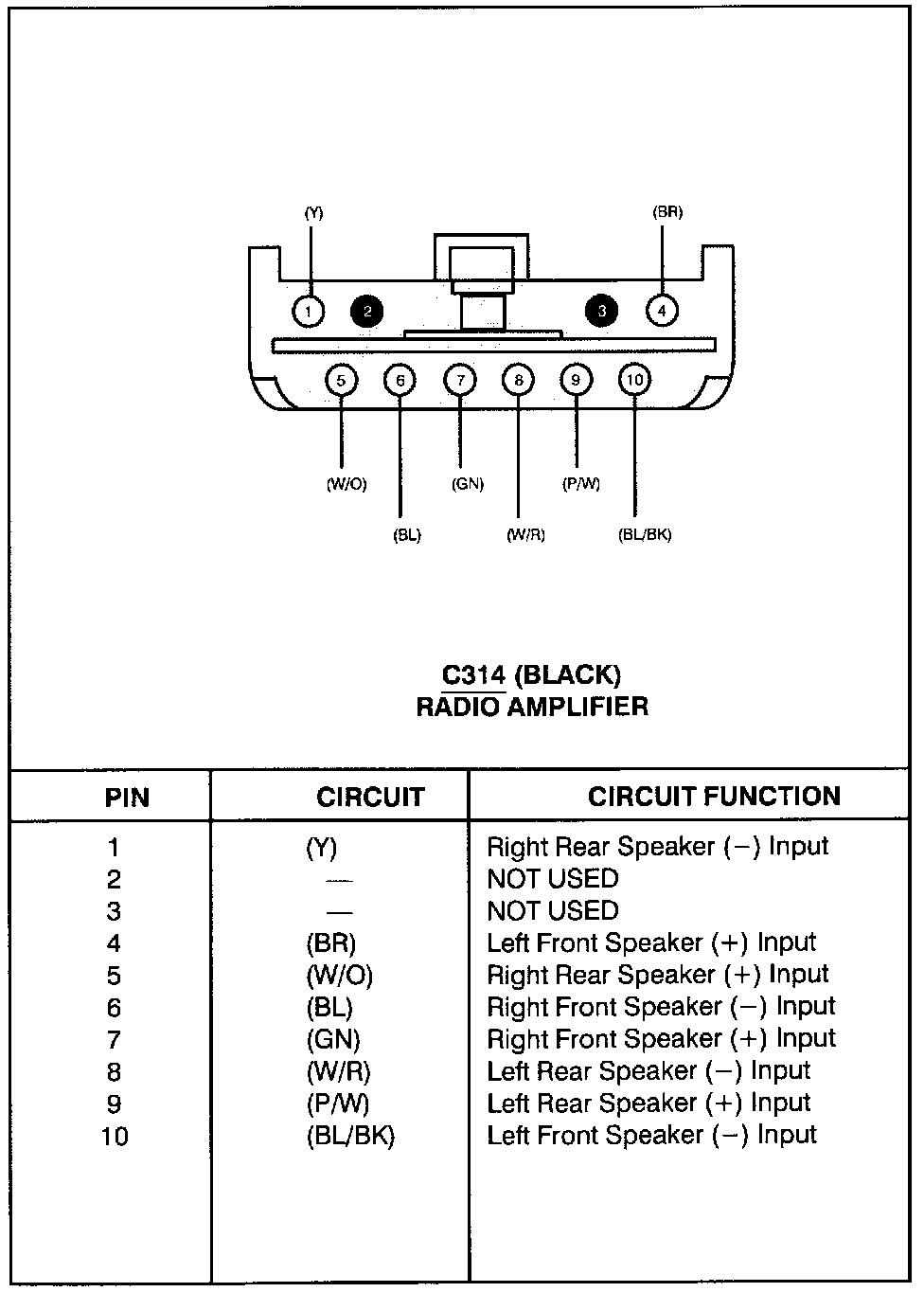

Radio Amplifier (C314):

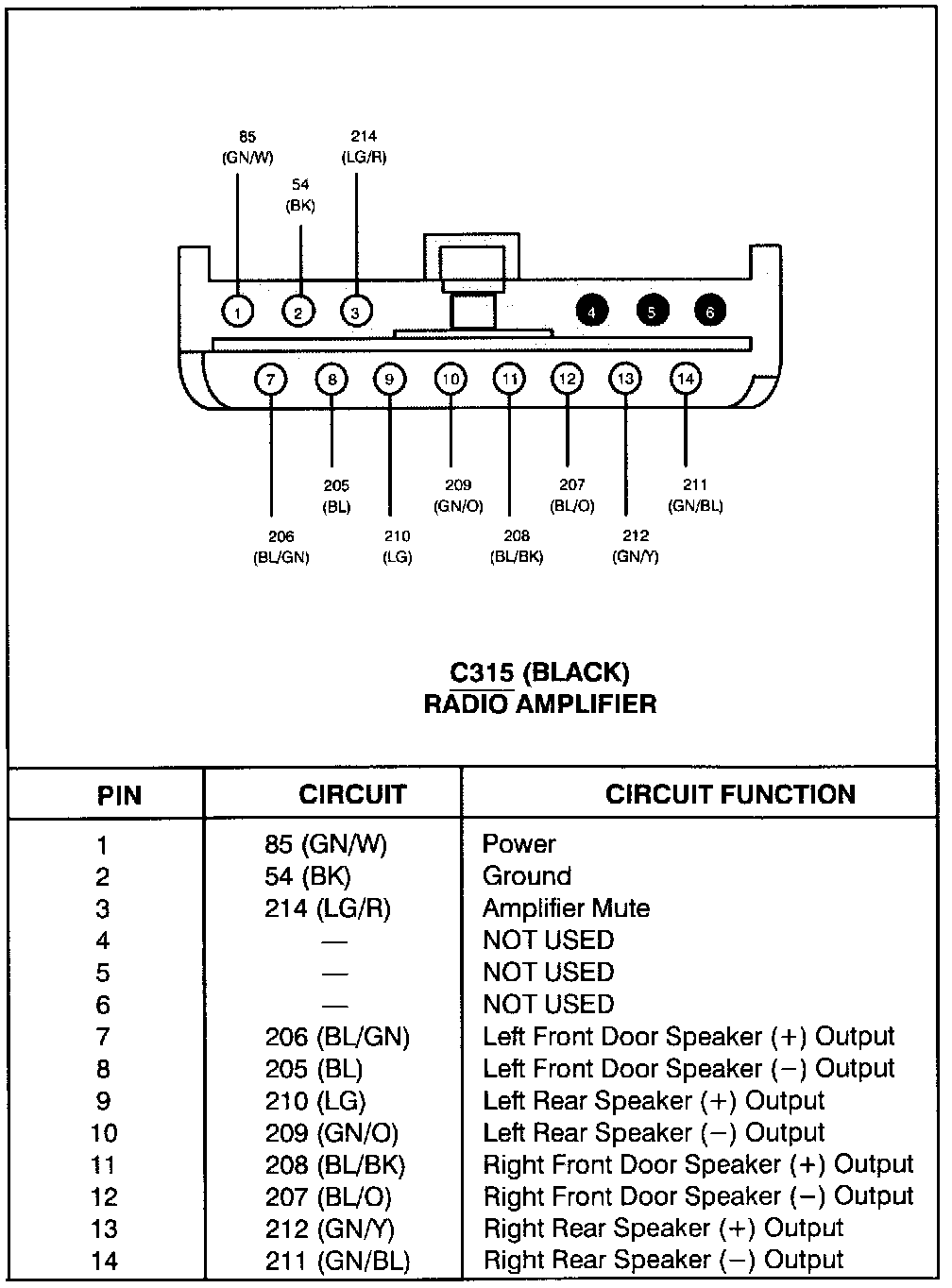

Radio Amplifier (C315):
