Ford
>>
1996
>>
Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Amplifier
>>
With Subwoofer
With Subwoofer

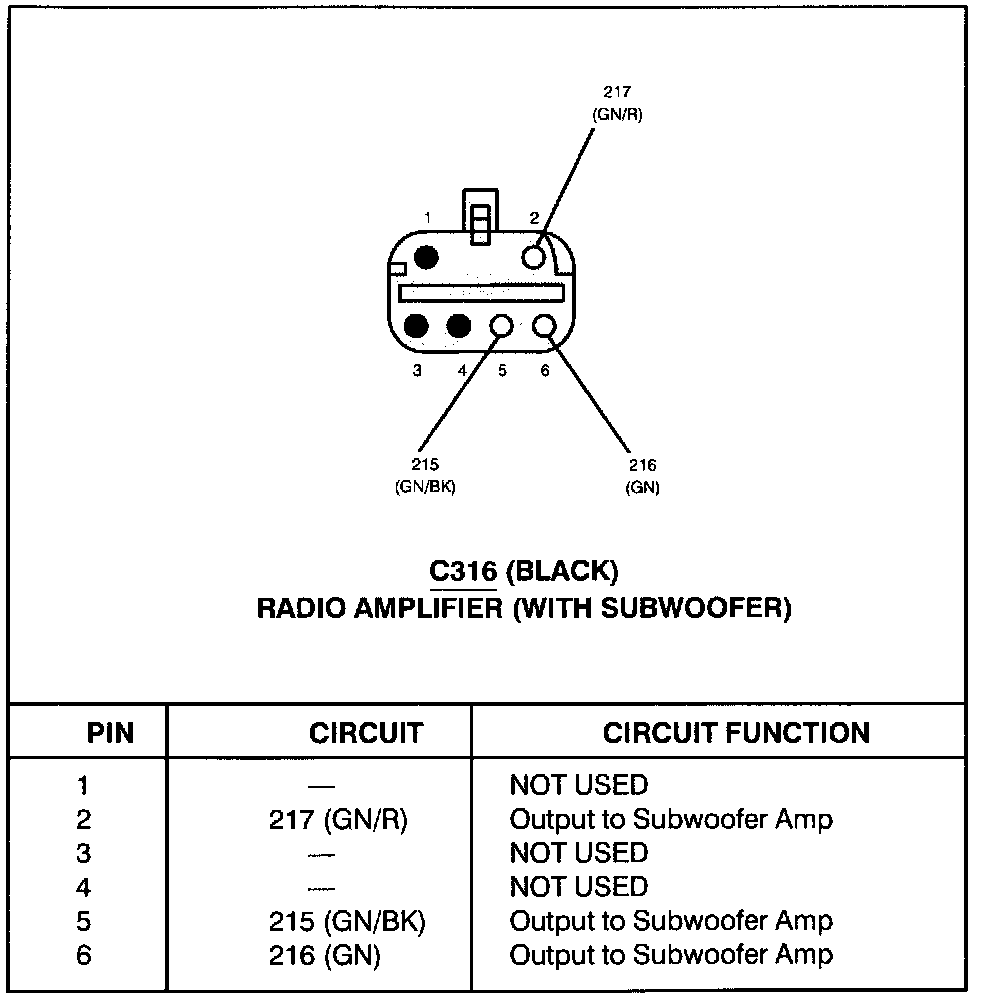

Radio Amplifier (With Subwoofer):
