Anti-Lock Control Module Logic Specifications

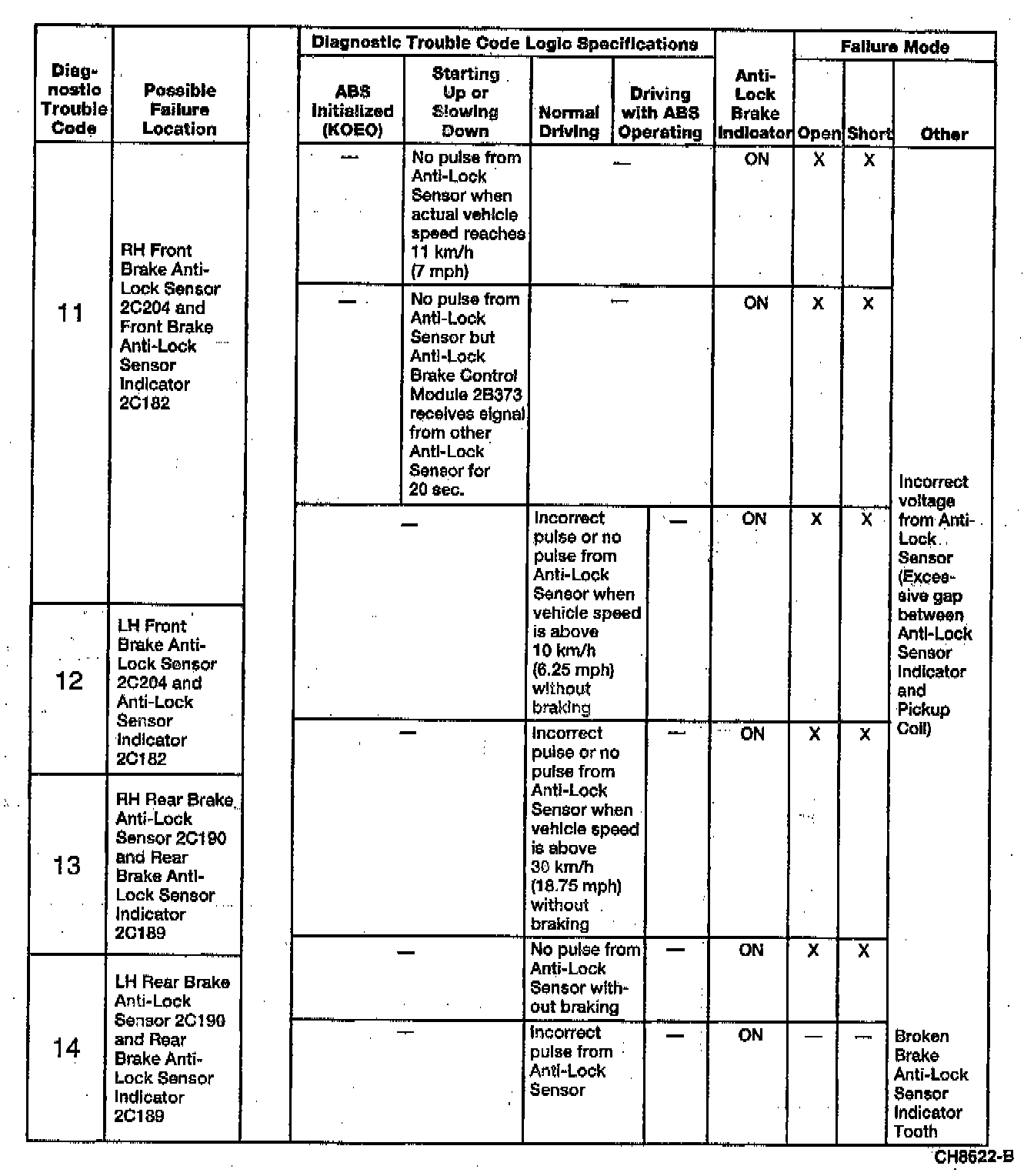

Anti-Lock Brake Control Module Logic Specifications For DTC (Part 1 Of 3):

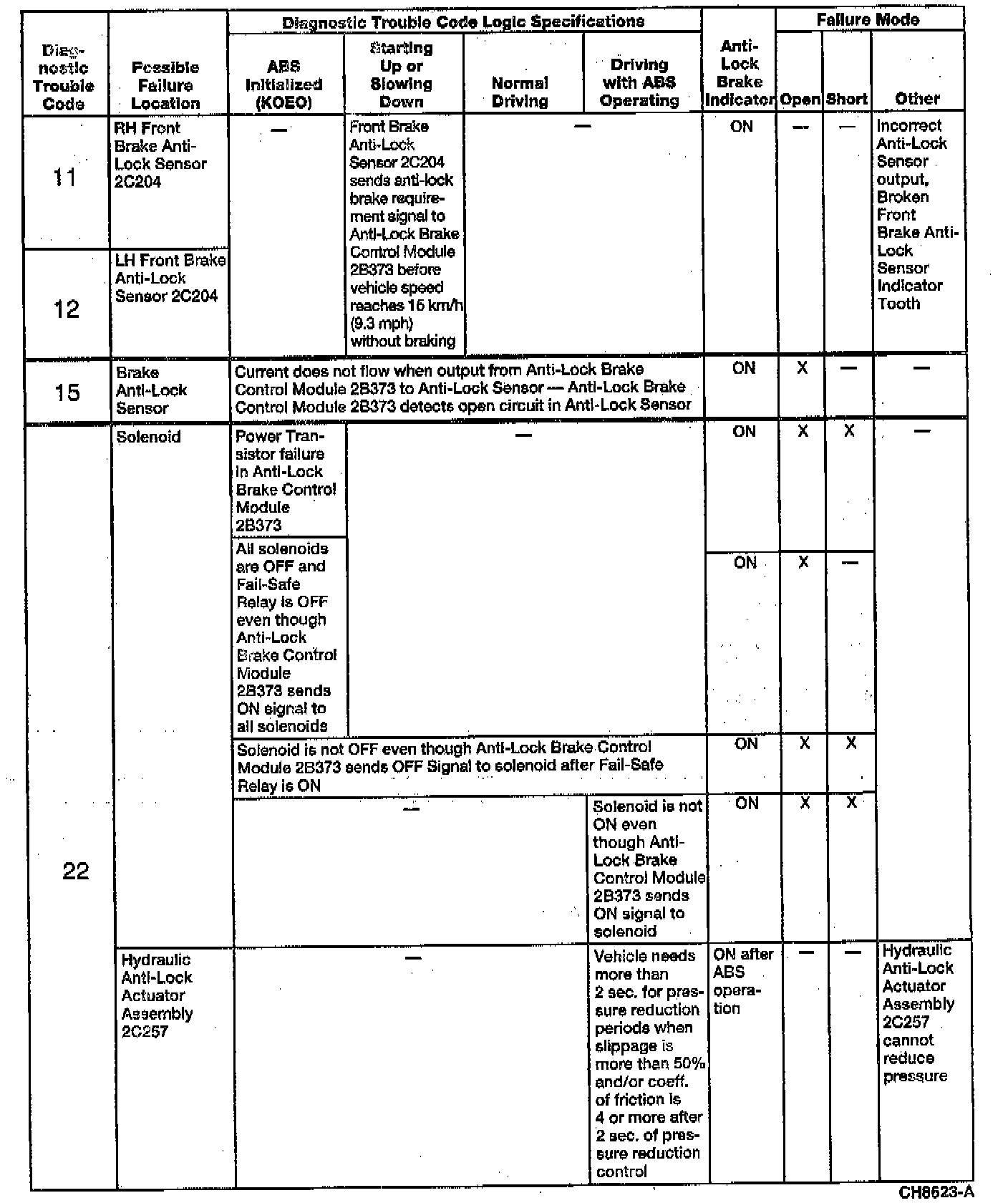

Anti-Lock Brake Control Module Logic Specifications For DTC (Part 2 Of 3):

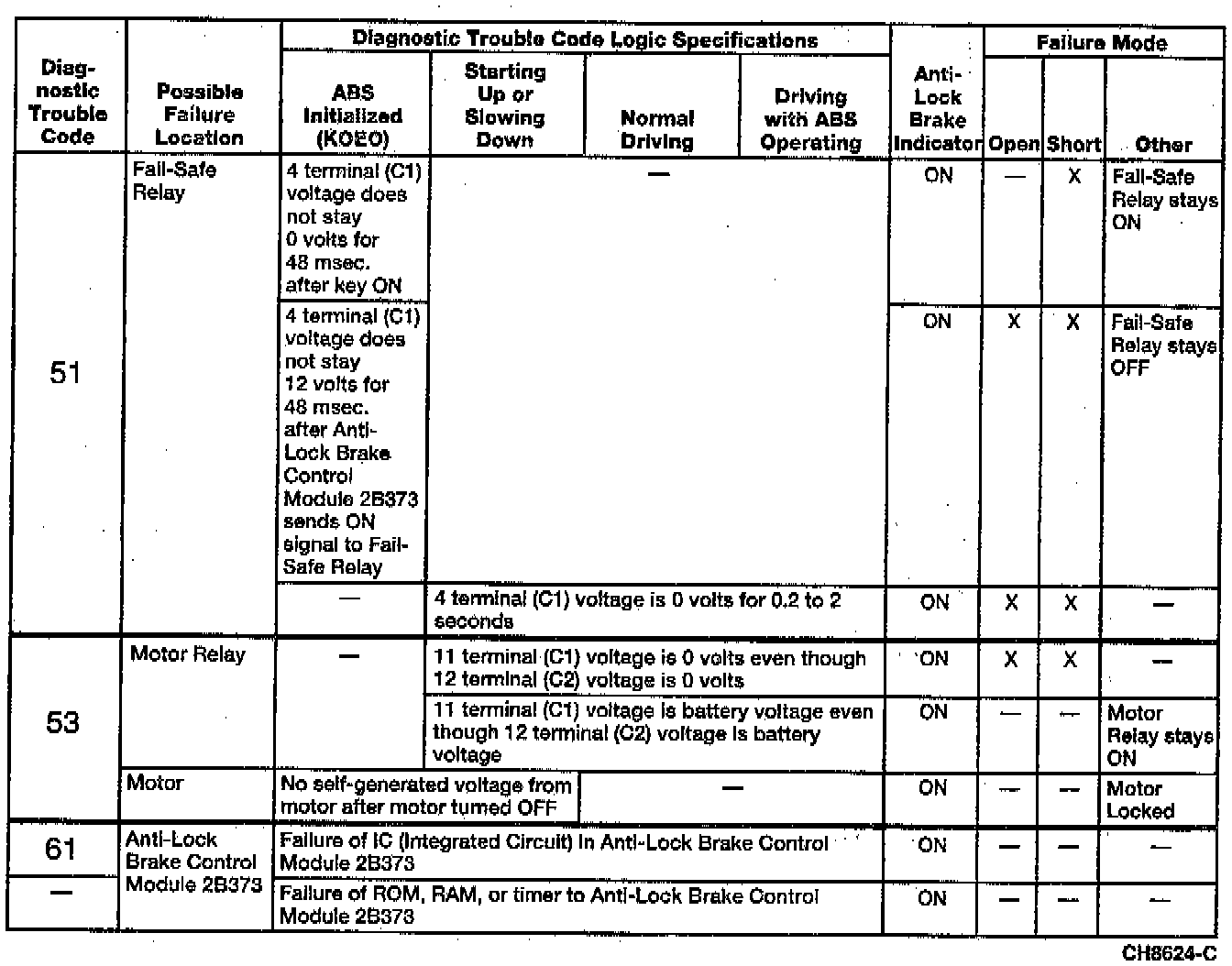

Anti-Lock Brake Control Module Logic Specifications For DTC (Part 3 Of 3):






Anti-Lock Brake Control Module Logic Specifications for Diagnostic Trouble Codes
