Home
>>
Ford
>>
1997
>>
Aspire L4-81 1.3L VIN H MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

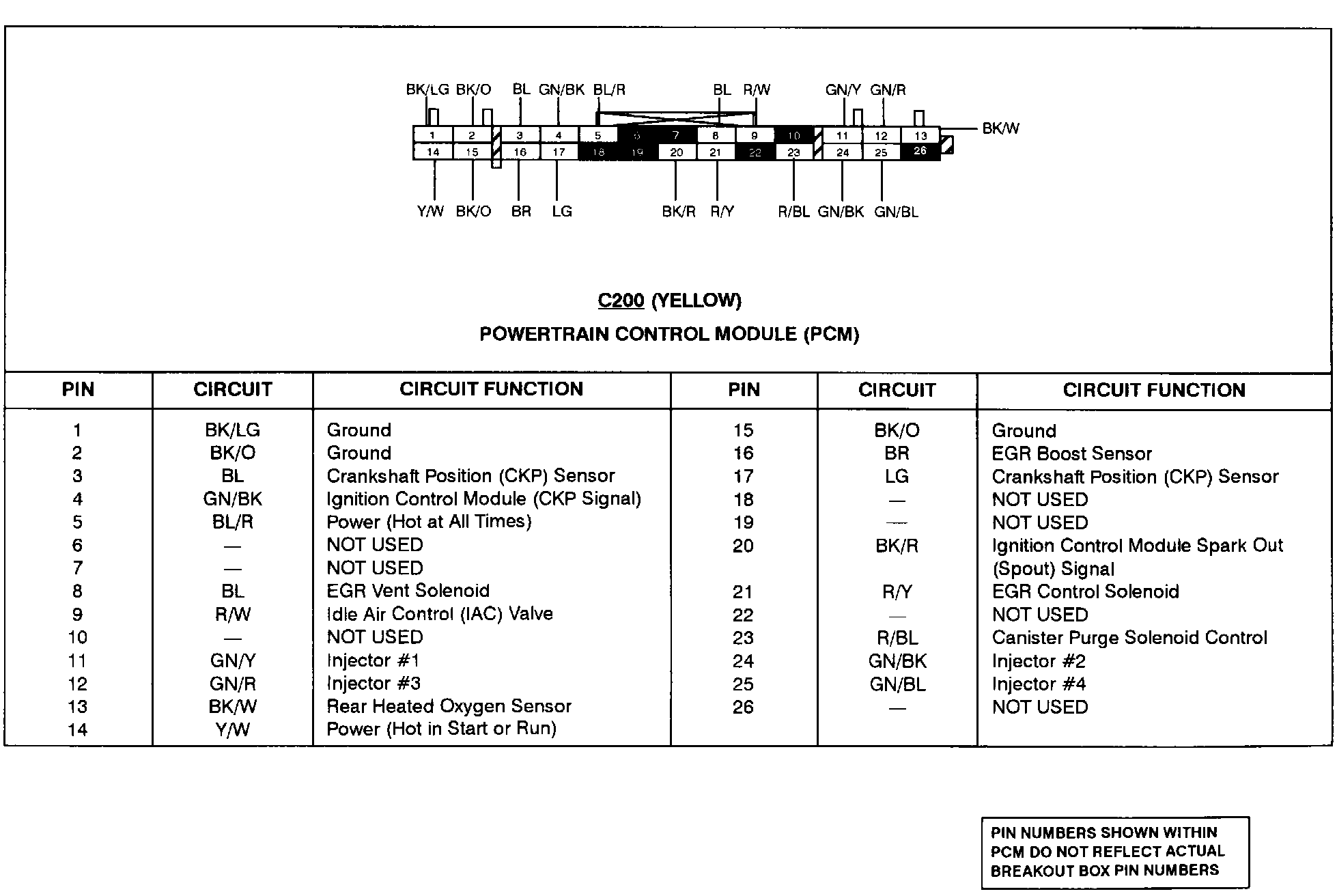

Powertrain Control Module (C200):

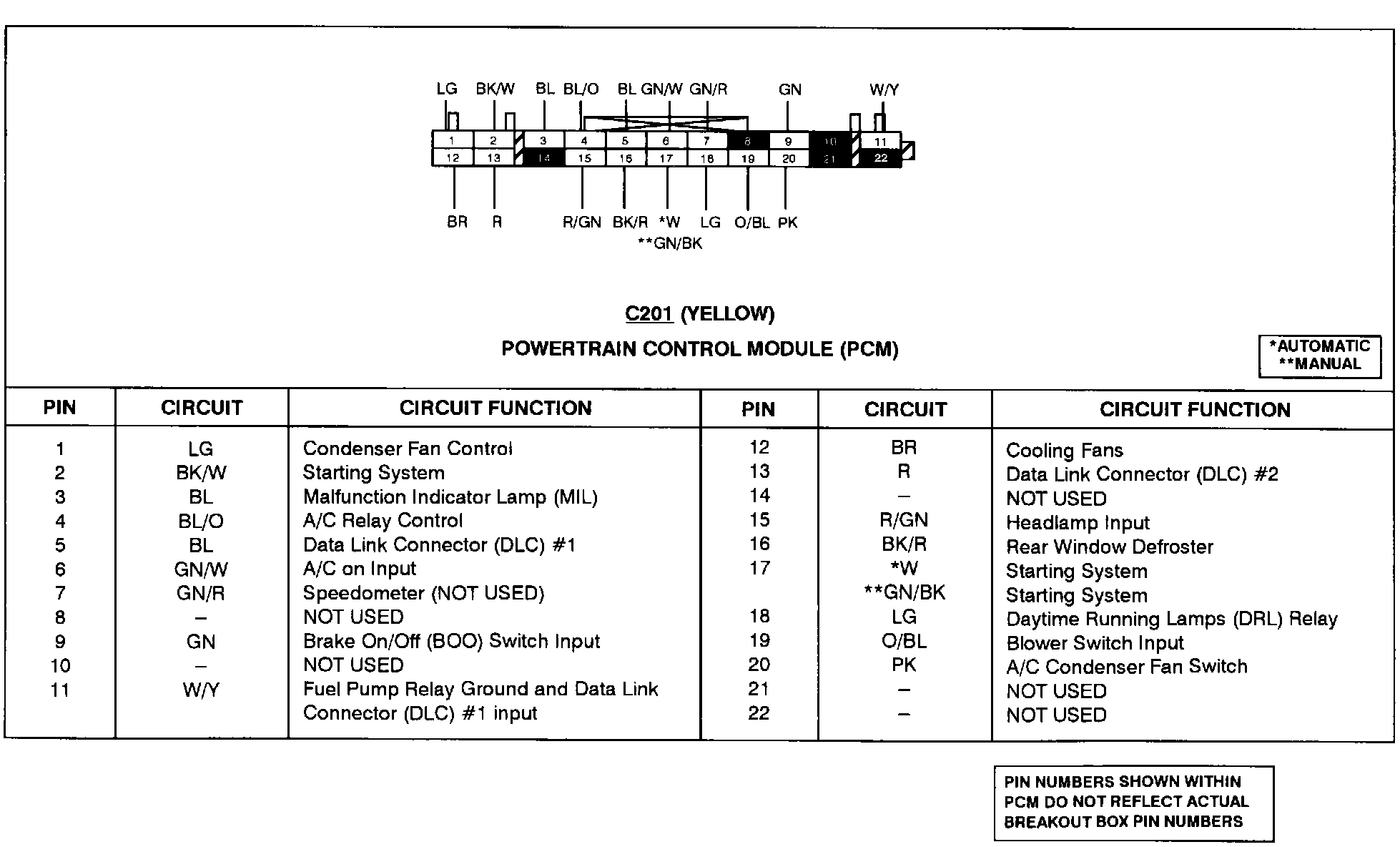

Powertrain Control Module (C201):

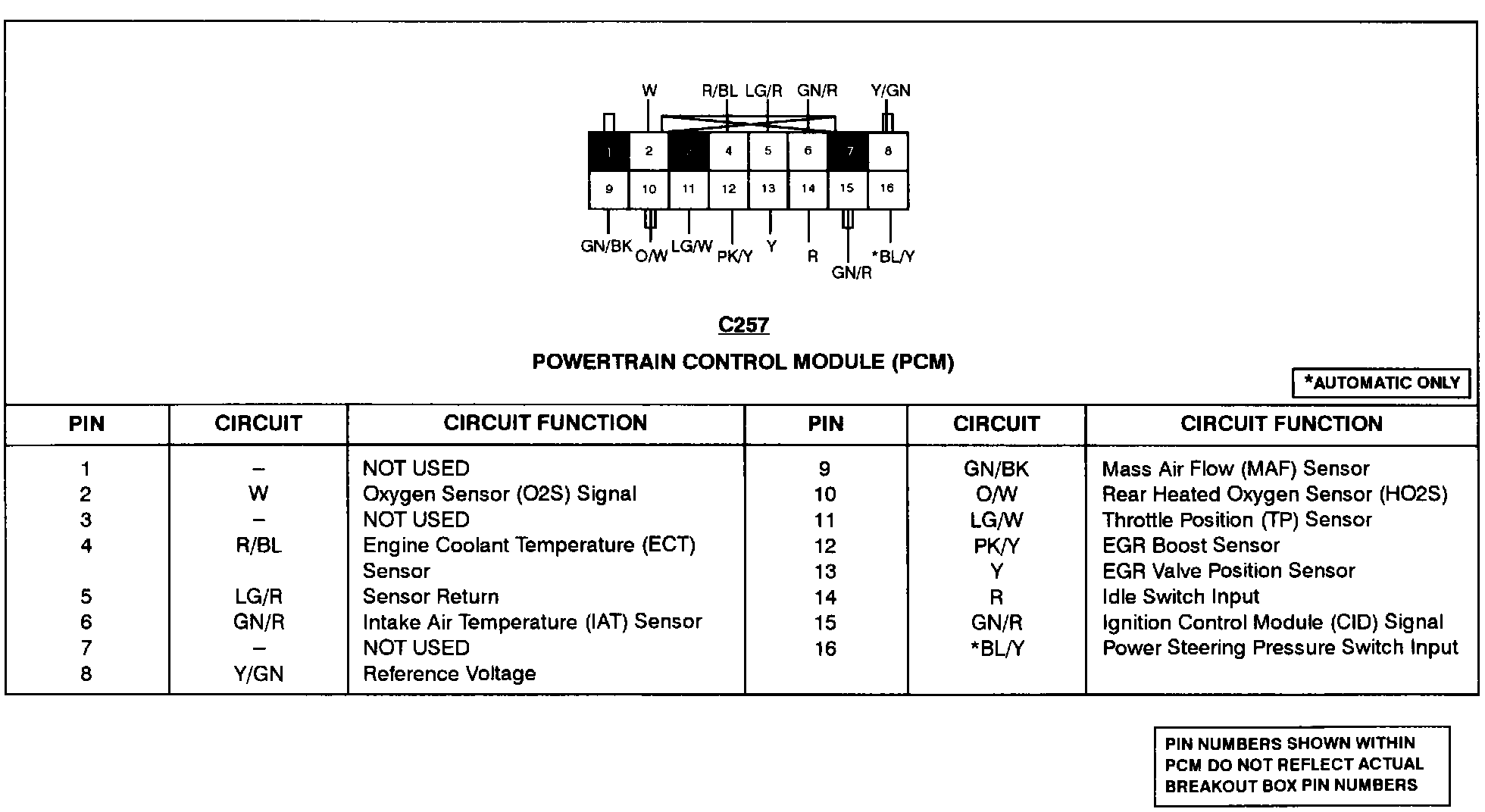

Powertrain Control Module (C257):
