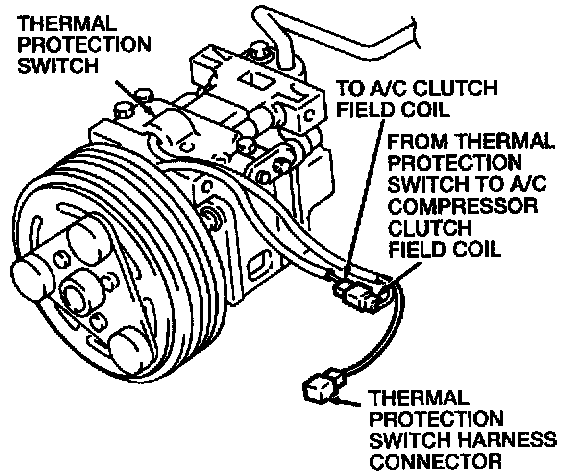

Temperature Control Switch

A thermo protection switch is mounted in the A/C compressor to protect the A/C compressor from overheating. The thermal protection switch will open the A/C compressor clutch field coil circuit if the A/C compressor gets too hot.
