Bulbs

REMOVAL
1. Disconnect the battery ground cable.

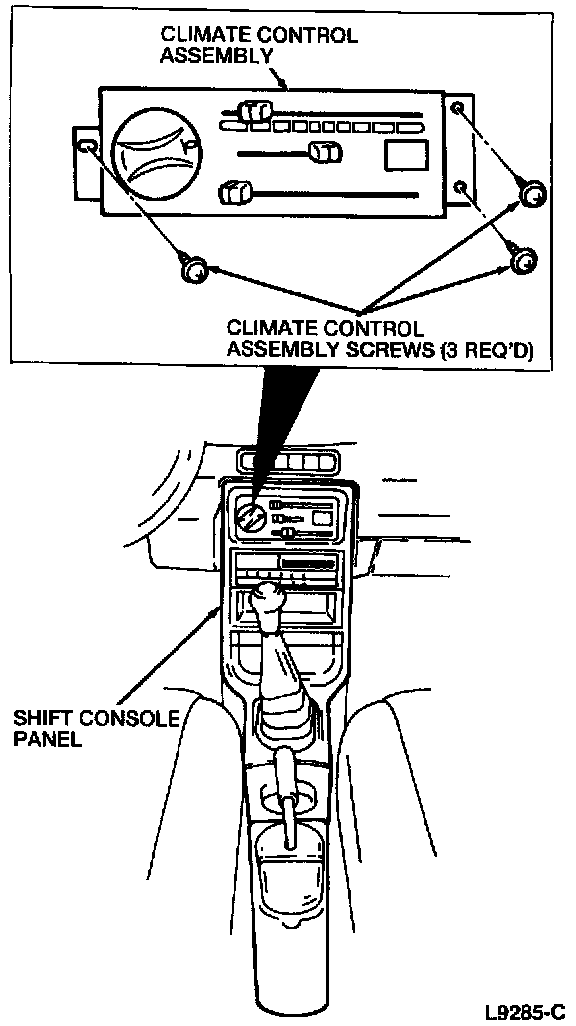

2. Remove the shift console panel.
3. Remove the three climate control assembly screws.
4. Disconnect the climate control assembly electrical connector.
5. Depress the tabs on the air door shafts and remove the three climate control cable ends. Pull the climate control assembly from the vehicle.

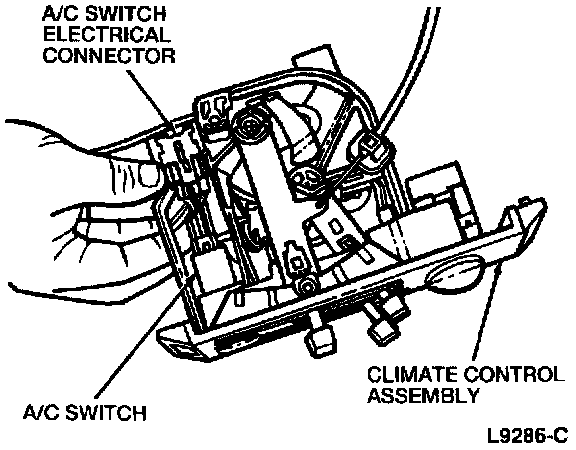

6. Remove the A/C switch electrical connector.

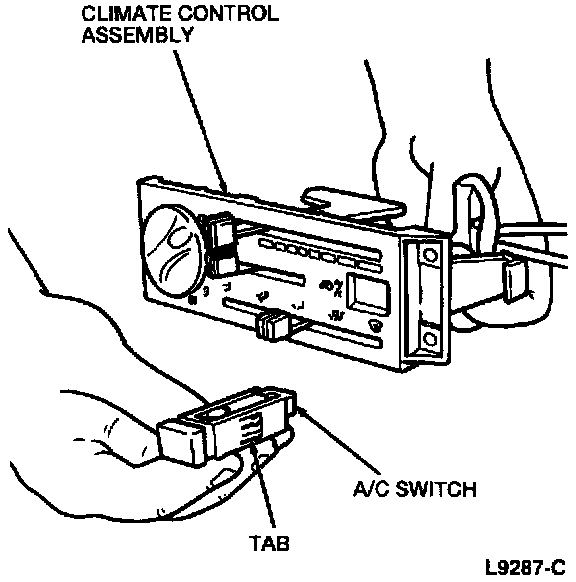

7. Depress the four tabs on the A/C switch and remove the A/C switch from the climate control assembly.
8. Twist and pull out to remove the A/C switch miniature bulb from the A/C switch.

INSTALLATION
To install, reverse the removal procedure.
