Climate Control Assembly Switch - A/C

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the shift console panel.
3. Remove the three climate control assembly screws.
4. Disconnect the climate control assembly electrical connector.
5. Depress the tabs on the air door shafts and remove the three climate control cable ends. Pull the climate control assembly from the vehicle.

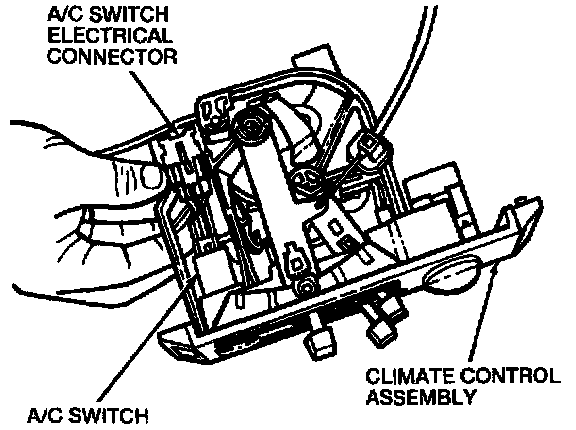

6. Remove the A/C switch electrical connector.

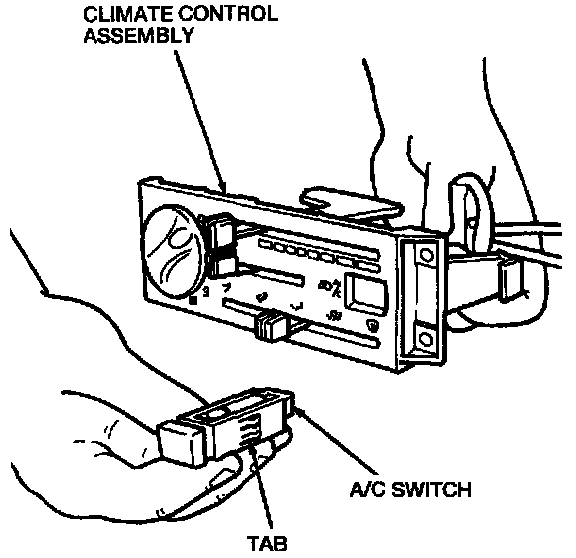

7. Depress the tabs on the A/C switch and remove the A/C switch from the climate control assembly.

INSTALLATION
To install, reverse the removal procedure.
