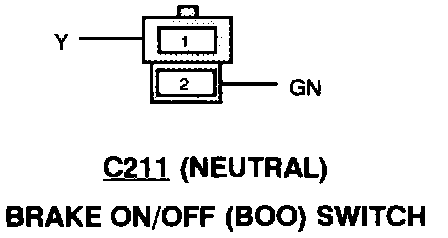

Typical Brake Pedal Position Switch:

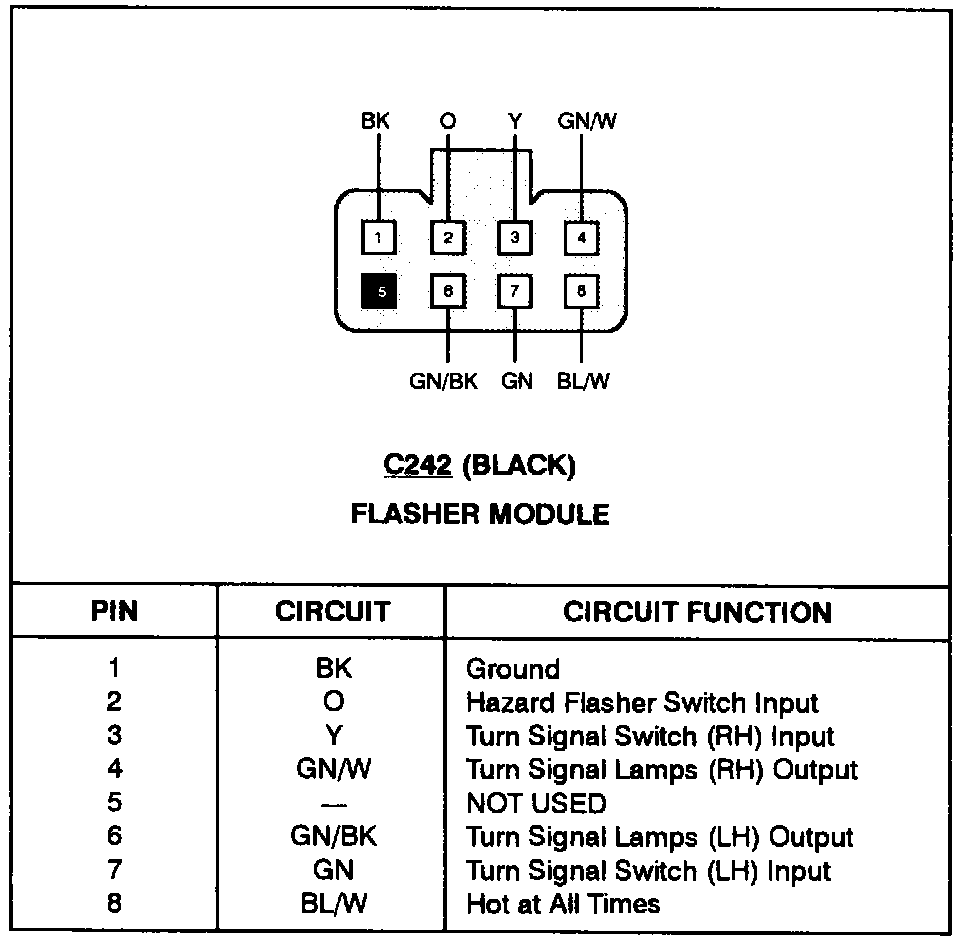

Flasher Module:

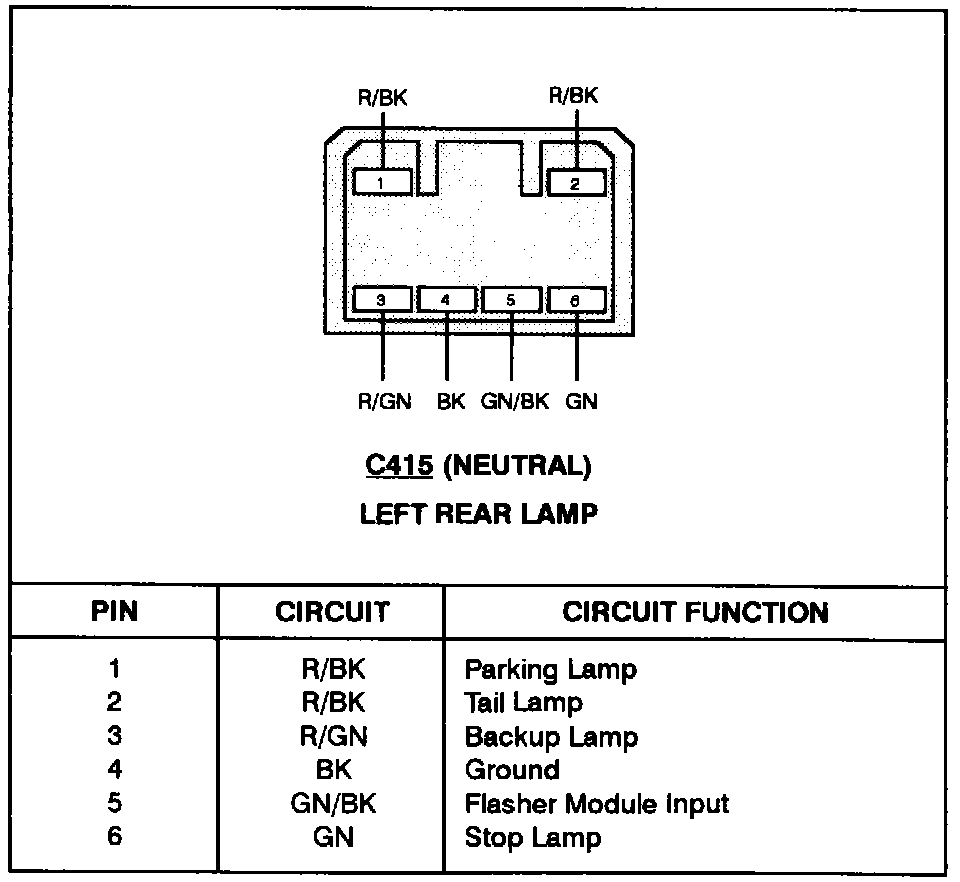

Left Rear Lamp:

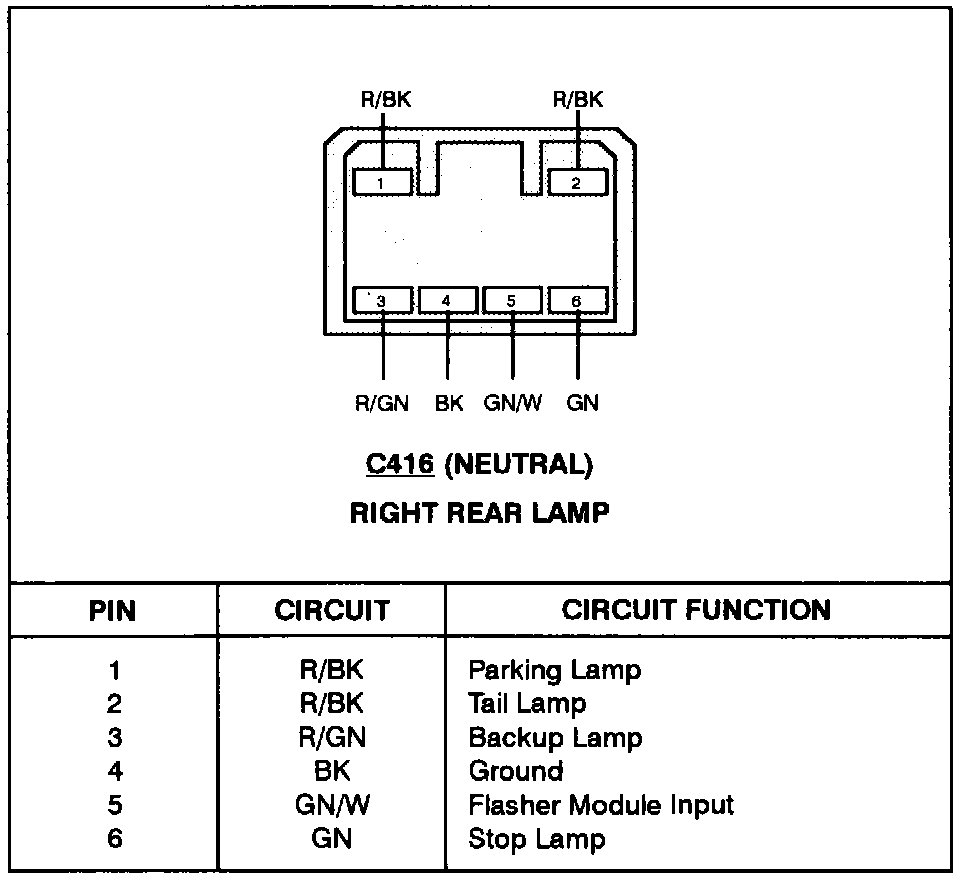

Right Rear Lamp:

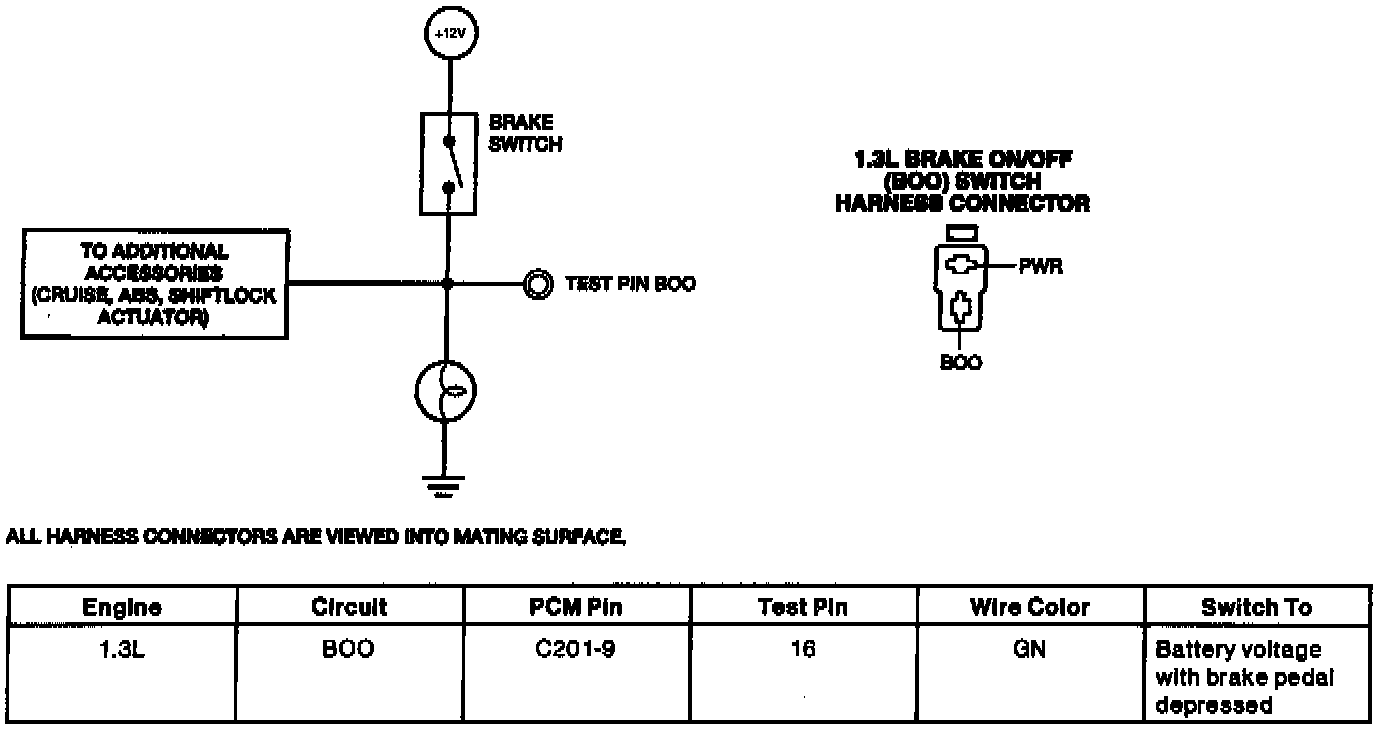

Brake ON/OFF Switch:
