Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1997
>>
Aspire L4-81 1.3L VIN H MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
H - Fuel Control
>>

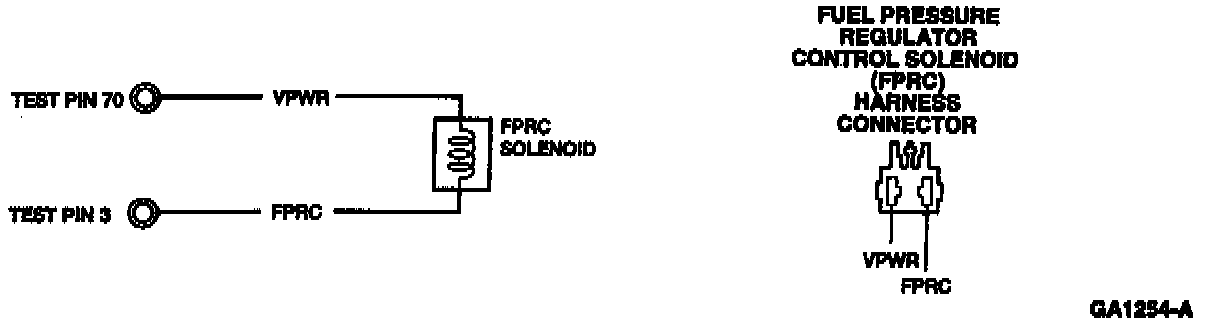

Pinpoint Test Schematic

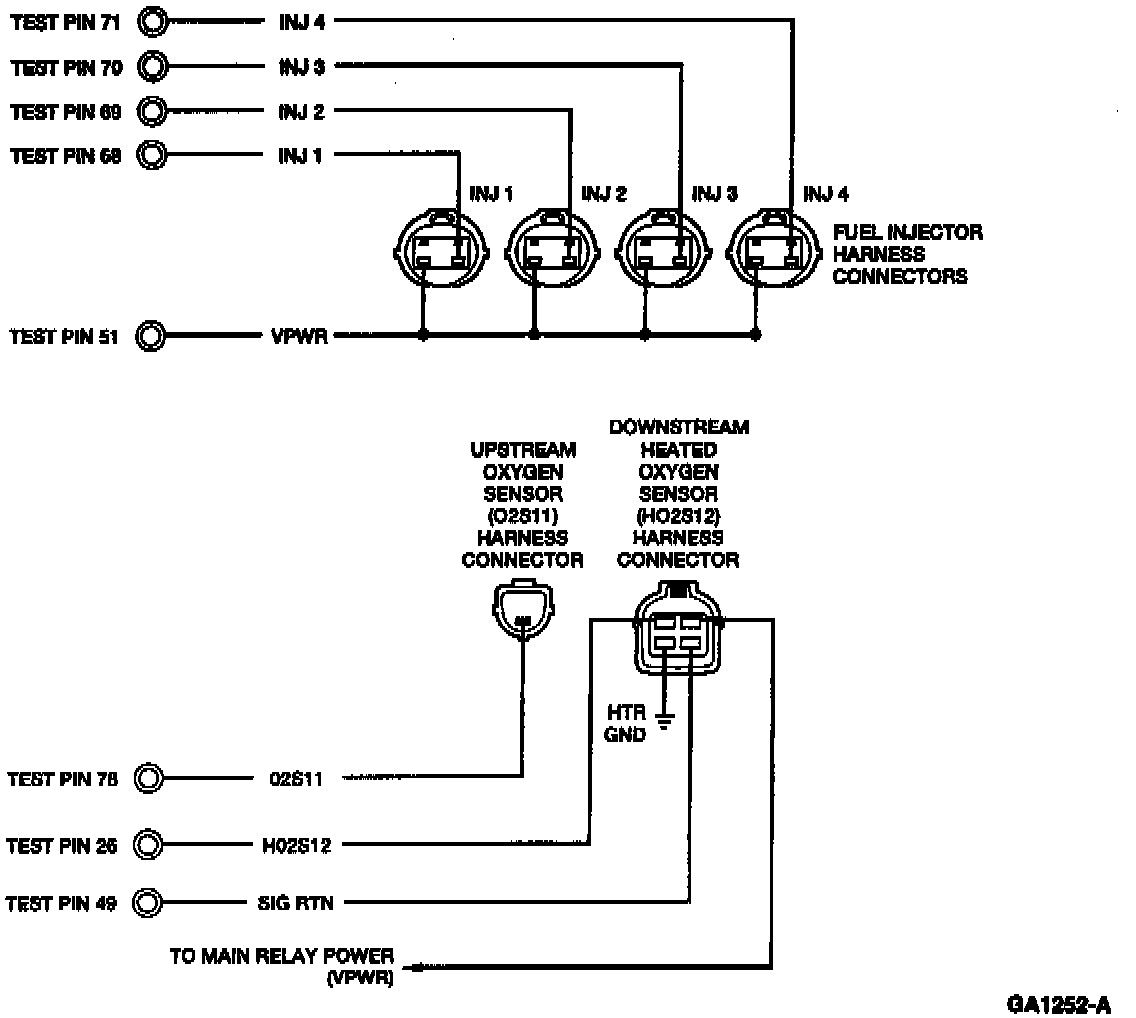

Pinpoint Test Schematic
