Component Locations

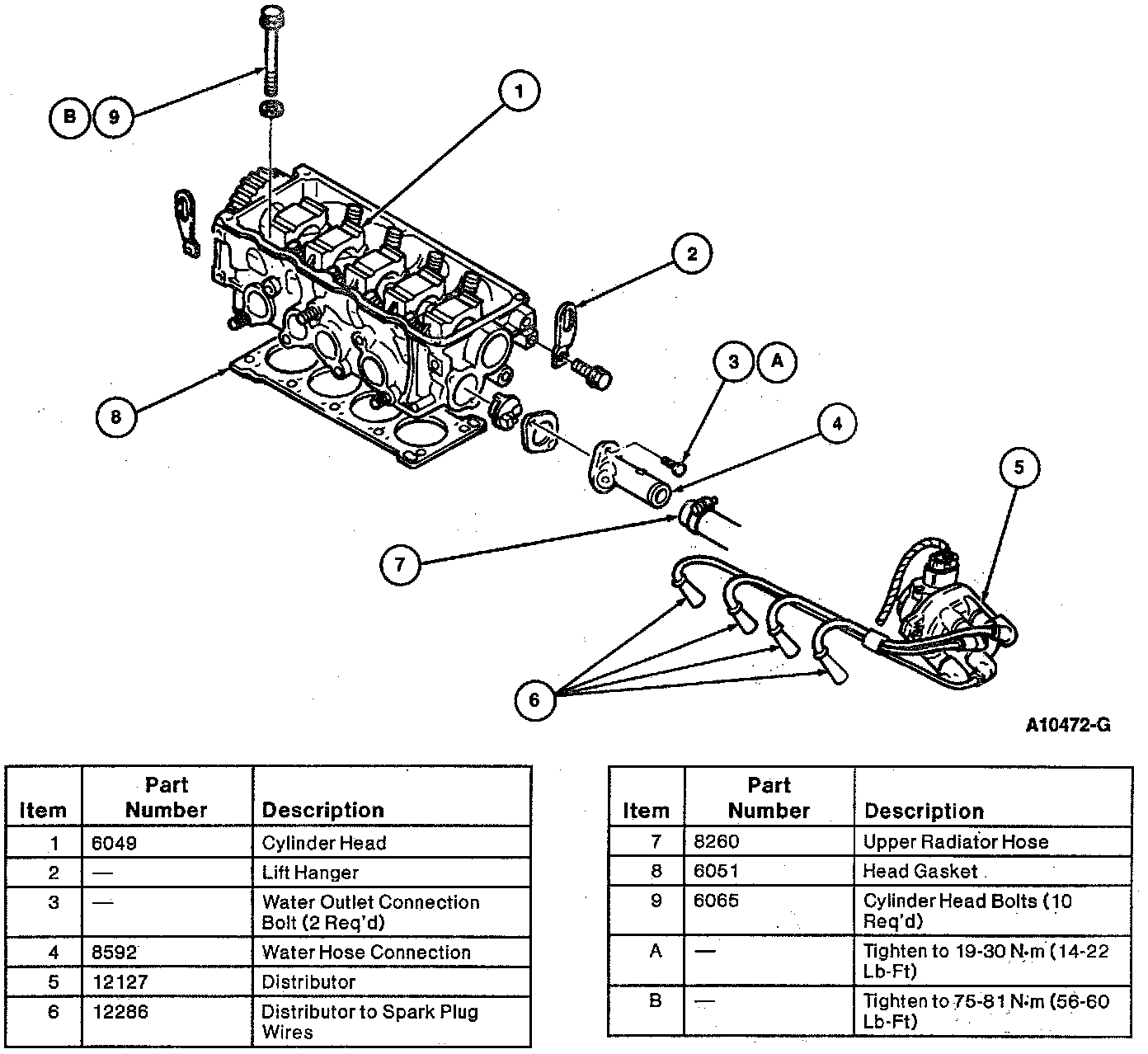

Distributor:









The distributor is mounted on the rear (flywheel end) of the cylinder head.
