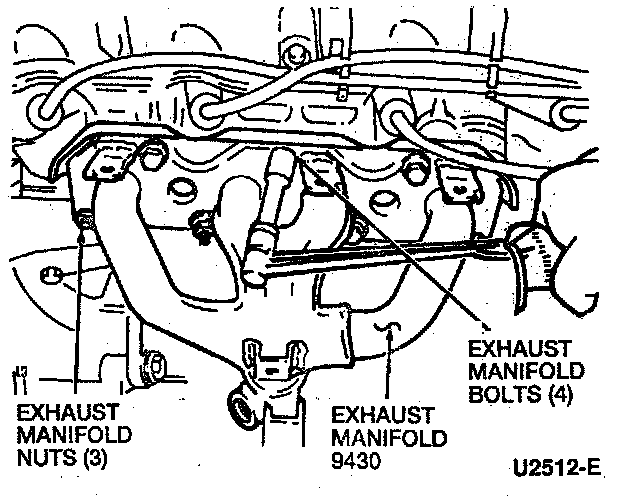

Exhaust Manifold
Mounting bolts: 16-23 Nm (12-17 ft. lbs.)
Mounting nuts: 16-23 Nm (12-17 ft. lbs.)
Shield Bolts: 16-23 Nm (12-17 ft. lbs.)
Inlet Pipe-To-Manifold Nuts: 31-46 Nm (23-34 ft. lbs.)
Muffler Pipe Bracket Bolts: 38-56 Nm (28-41 ft. lbs.)
Mounting bolts: 16-23 Nm (12-17 ft. lbs.)
Mounting nuts: 16-23 Nm (12-17 ft. lbs.)
Shield Bolts: 16-23 Nm (12-17 ft. lbs.)
Inlet Pipe-To-Manifold Nuts: 31-46 Nm (23-34 ft. lbs.)
Muffler Pipe Bracket Bolts: 38-56 Nm (28-41 ft. lbs.)
