Home >> Ford >> 1997 >> Probe L4-121 2.0L DOHC VIN A MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cruise Control Module >> With Manual Transmission

With Manual Transmission

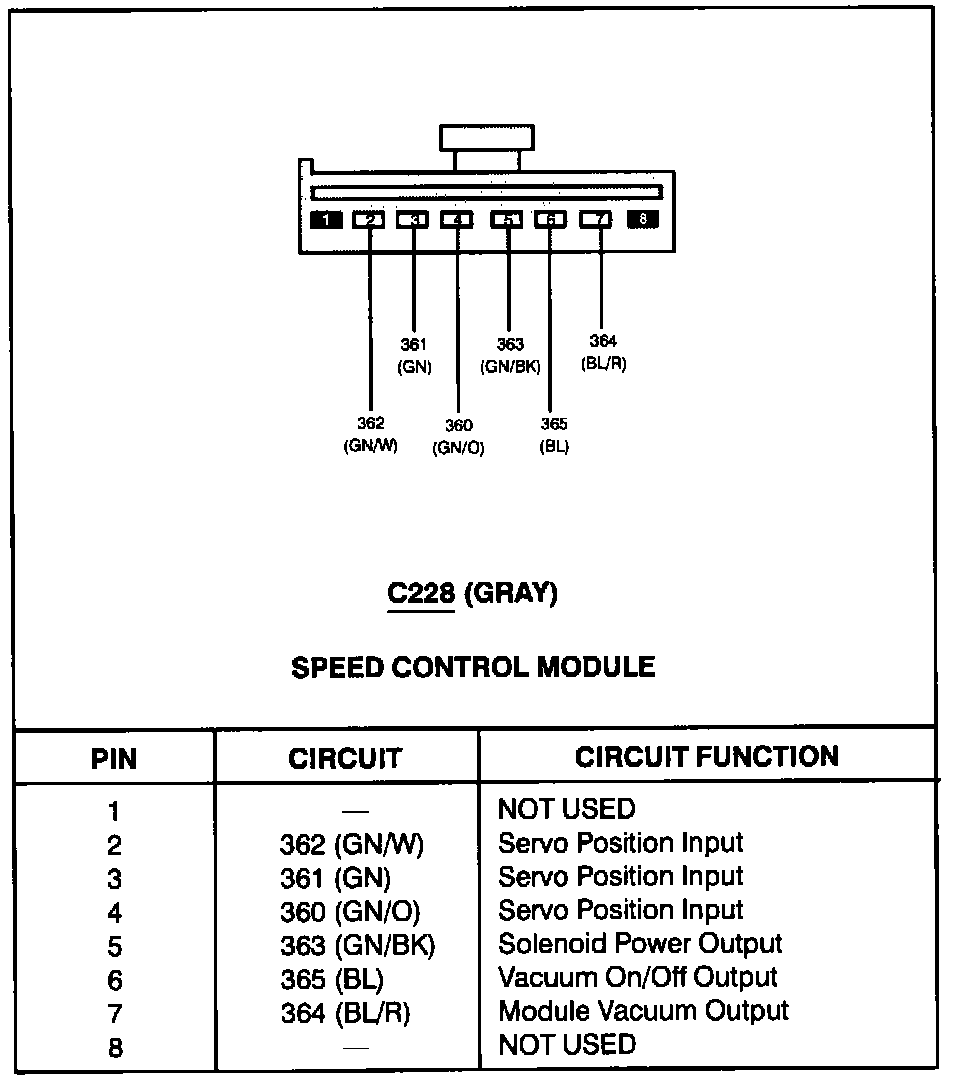

Speed Control Module (C228):

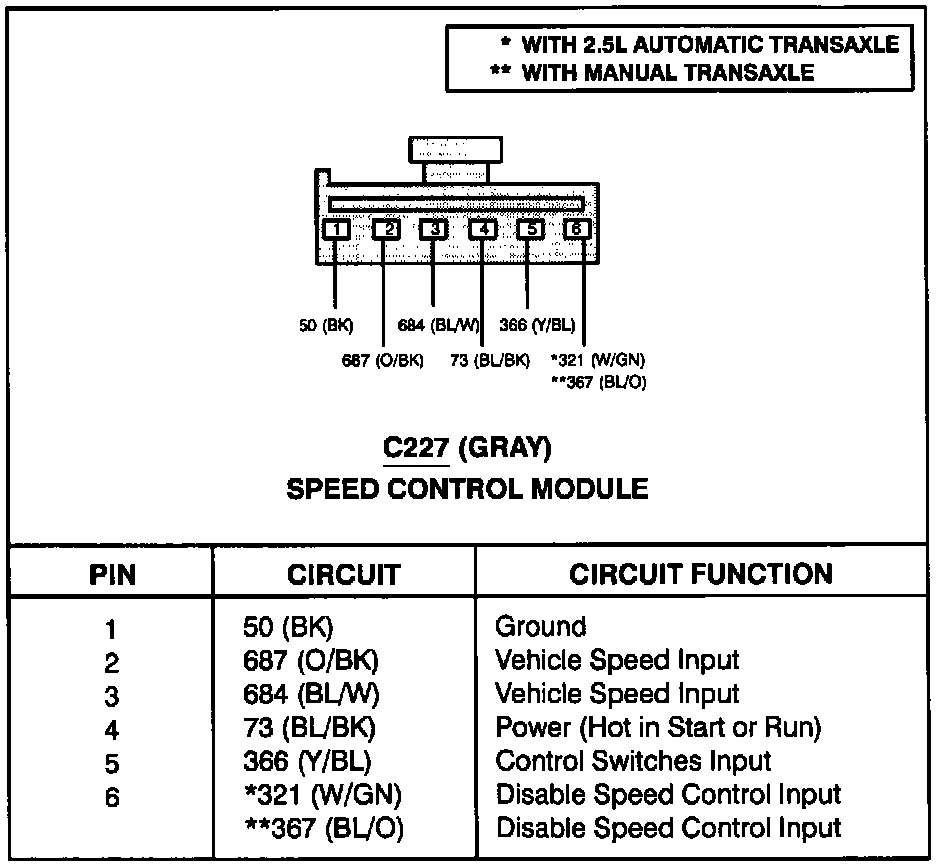

Speed Control Module (C227):
