System Diagram

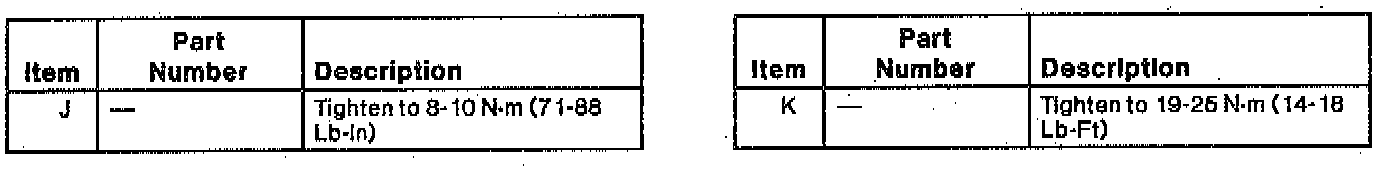

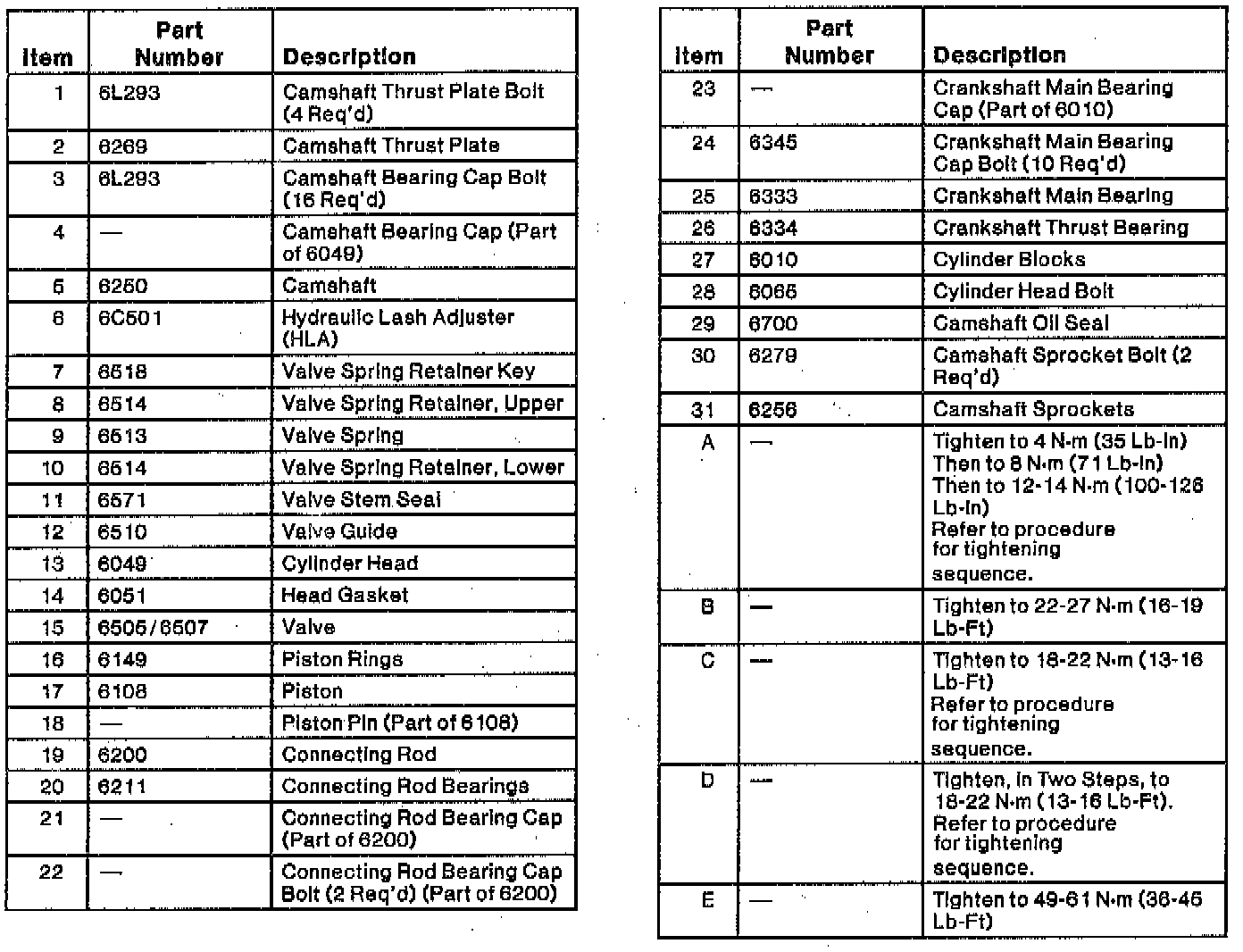

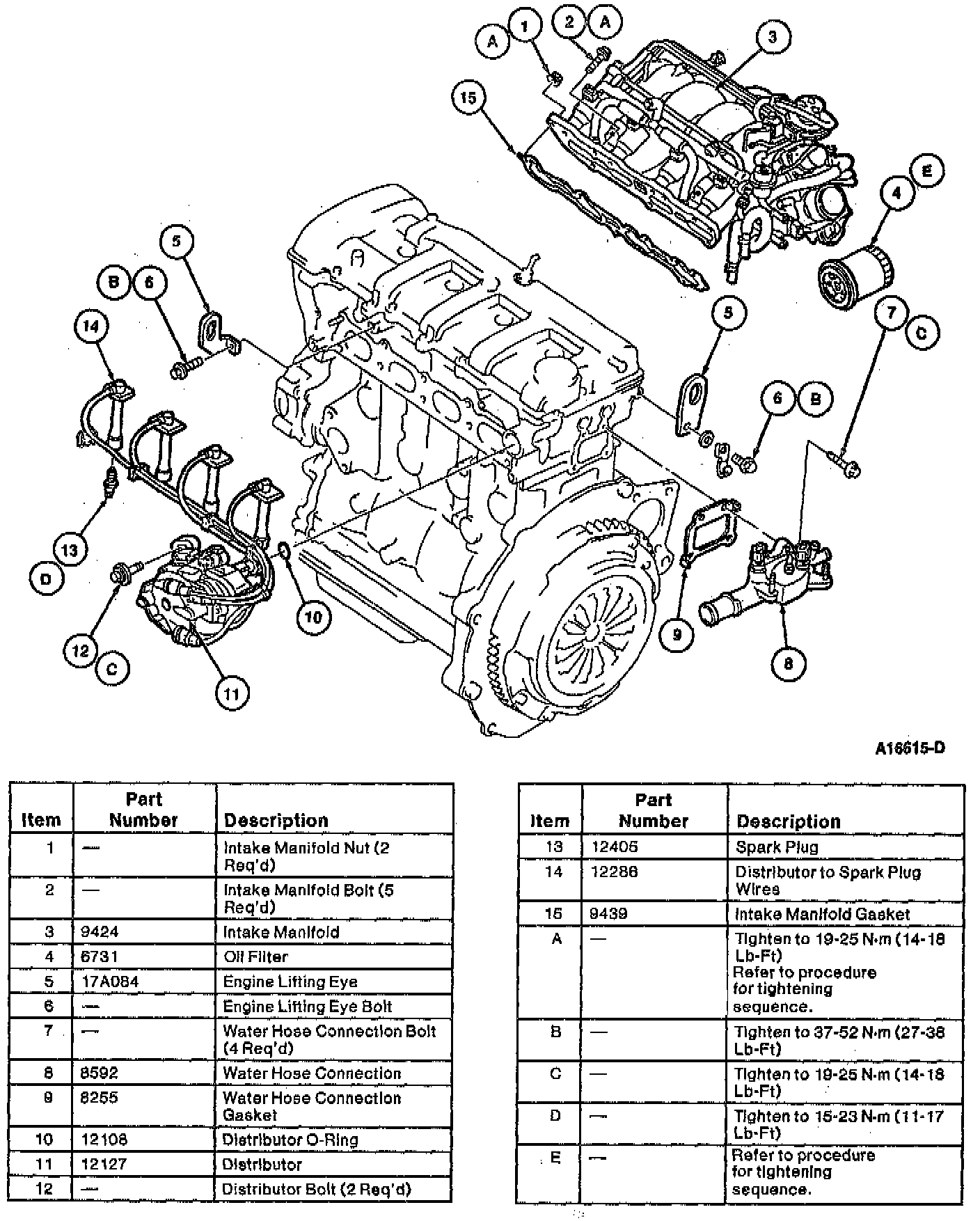

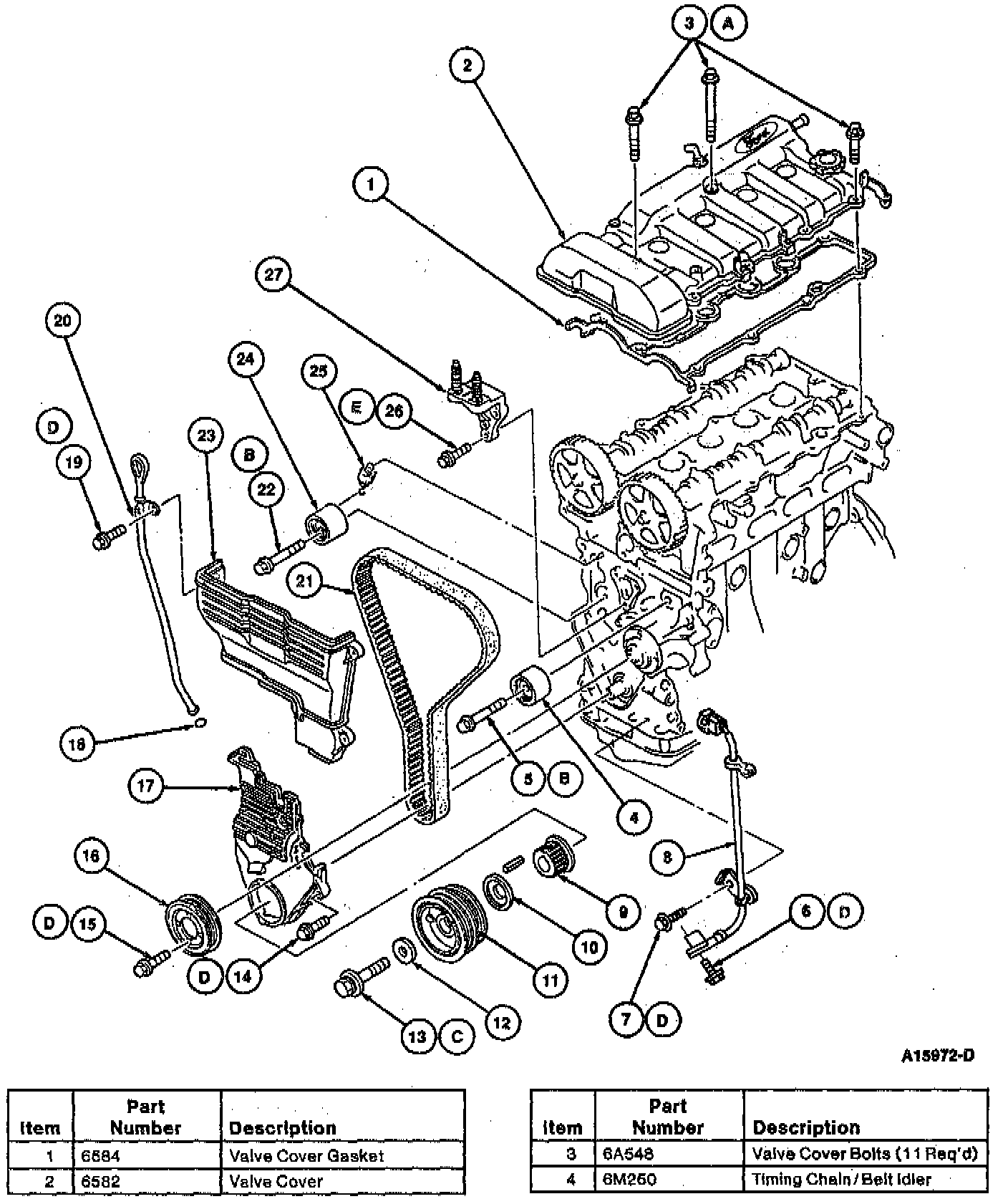

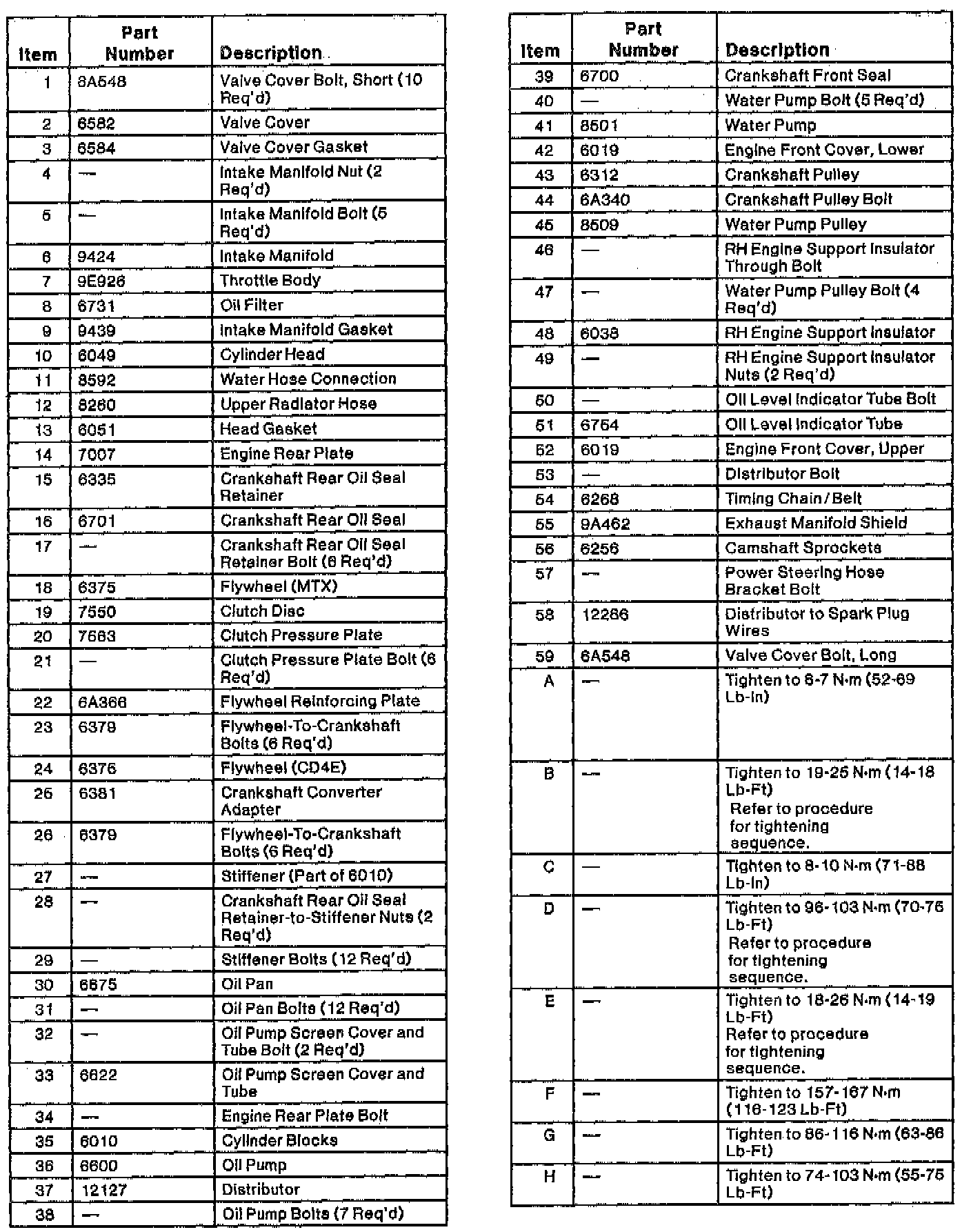

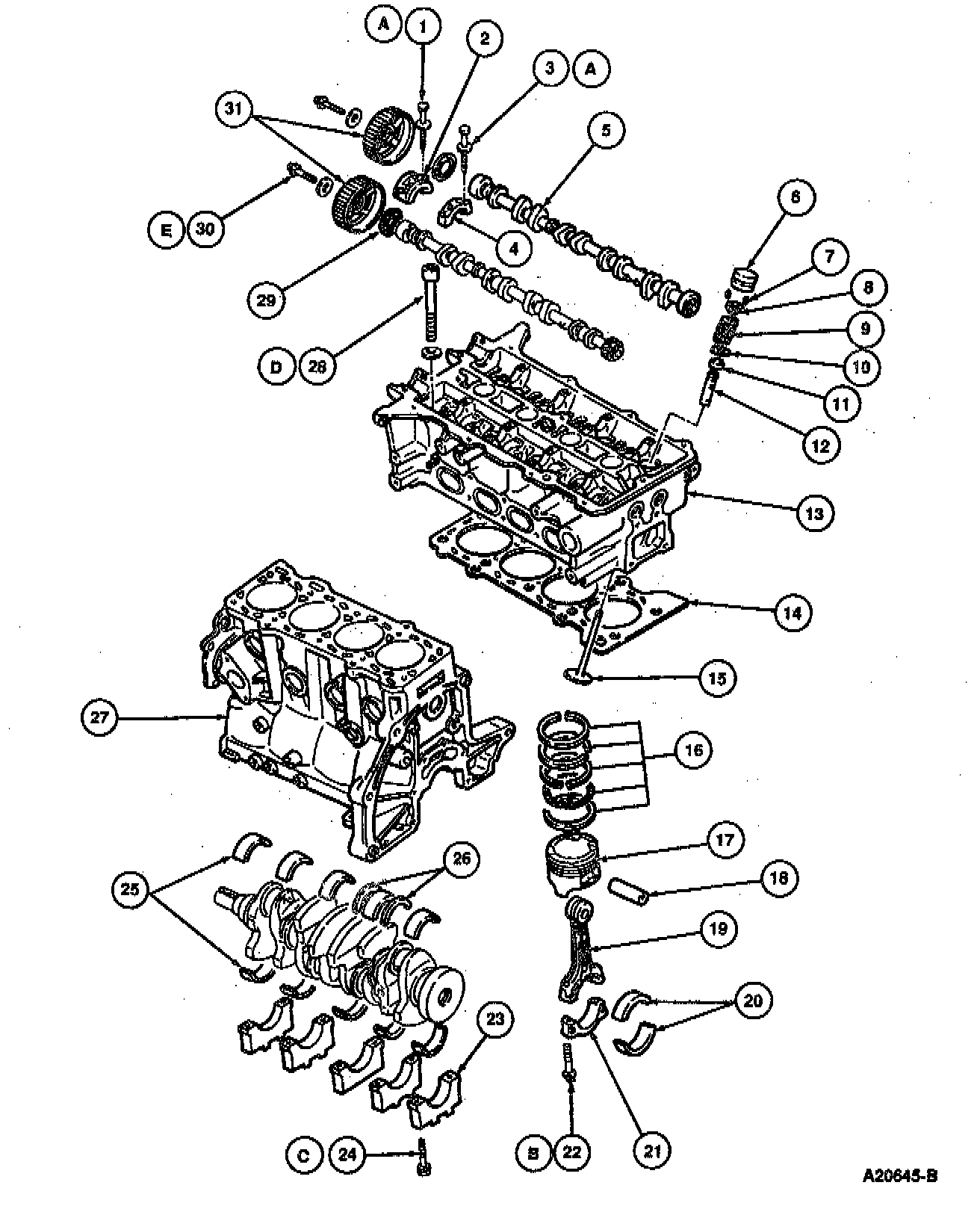

(Part 1 Of 3):



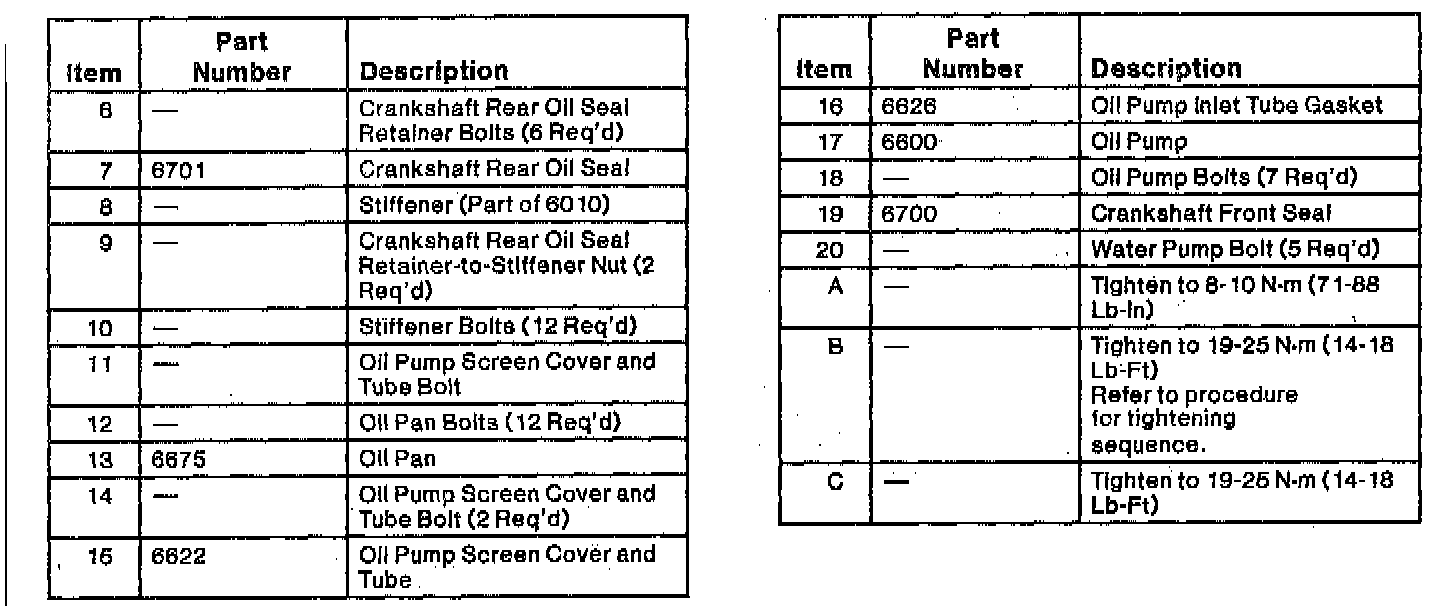

(Part 2 Of 3):



(Part 3 Of 3):

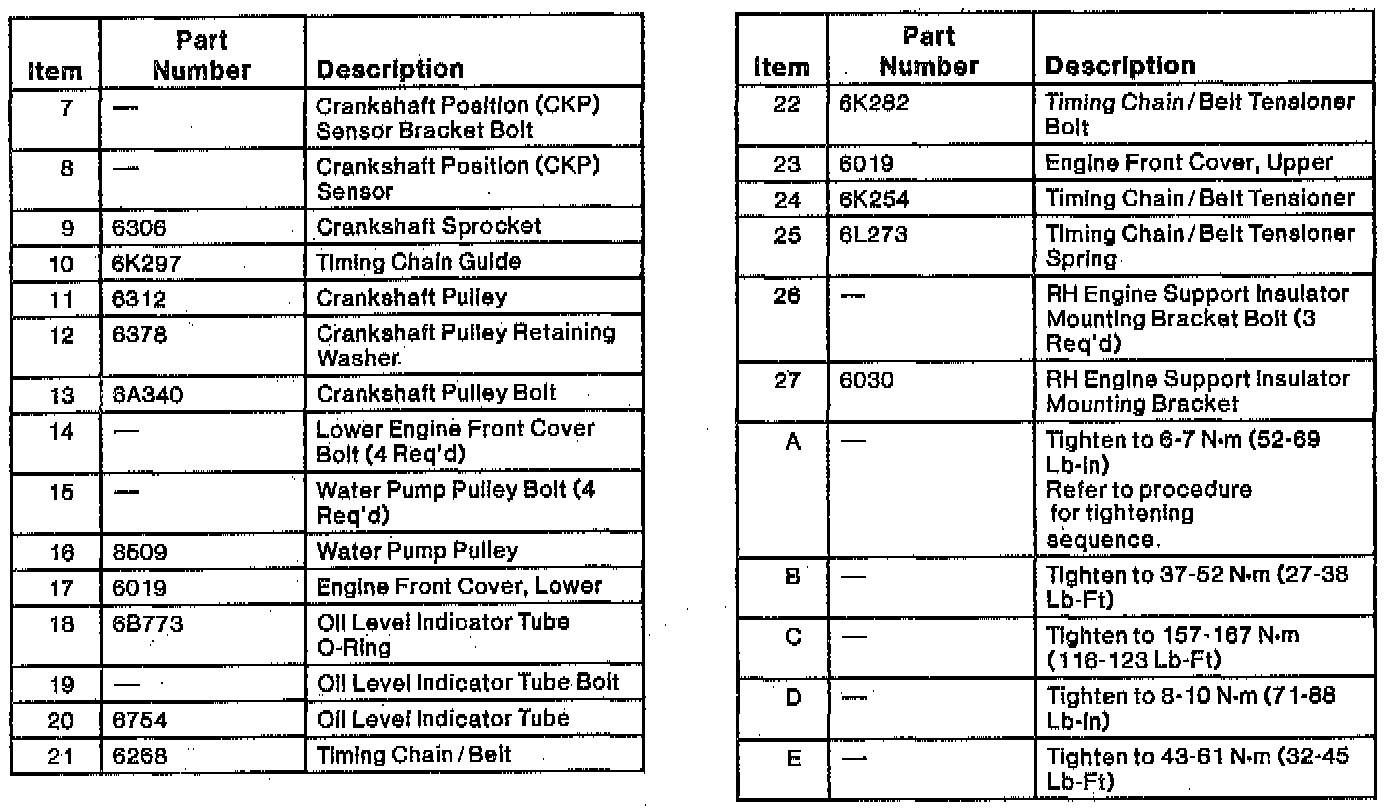

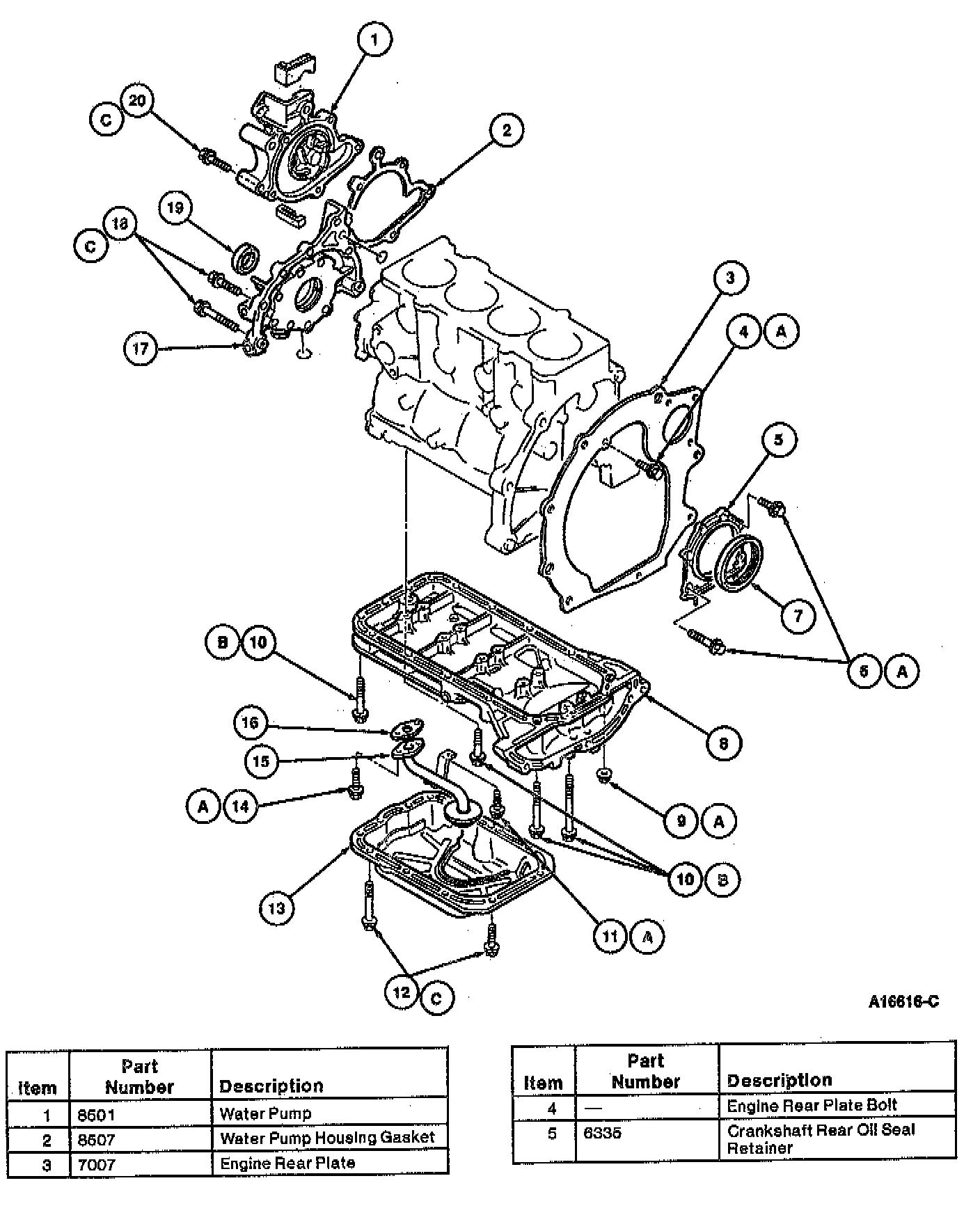

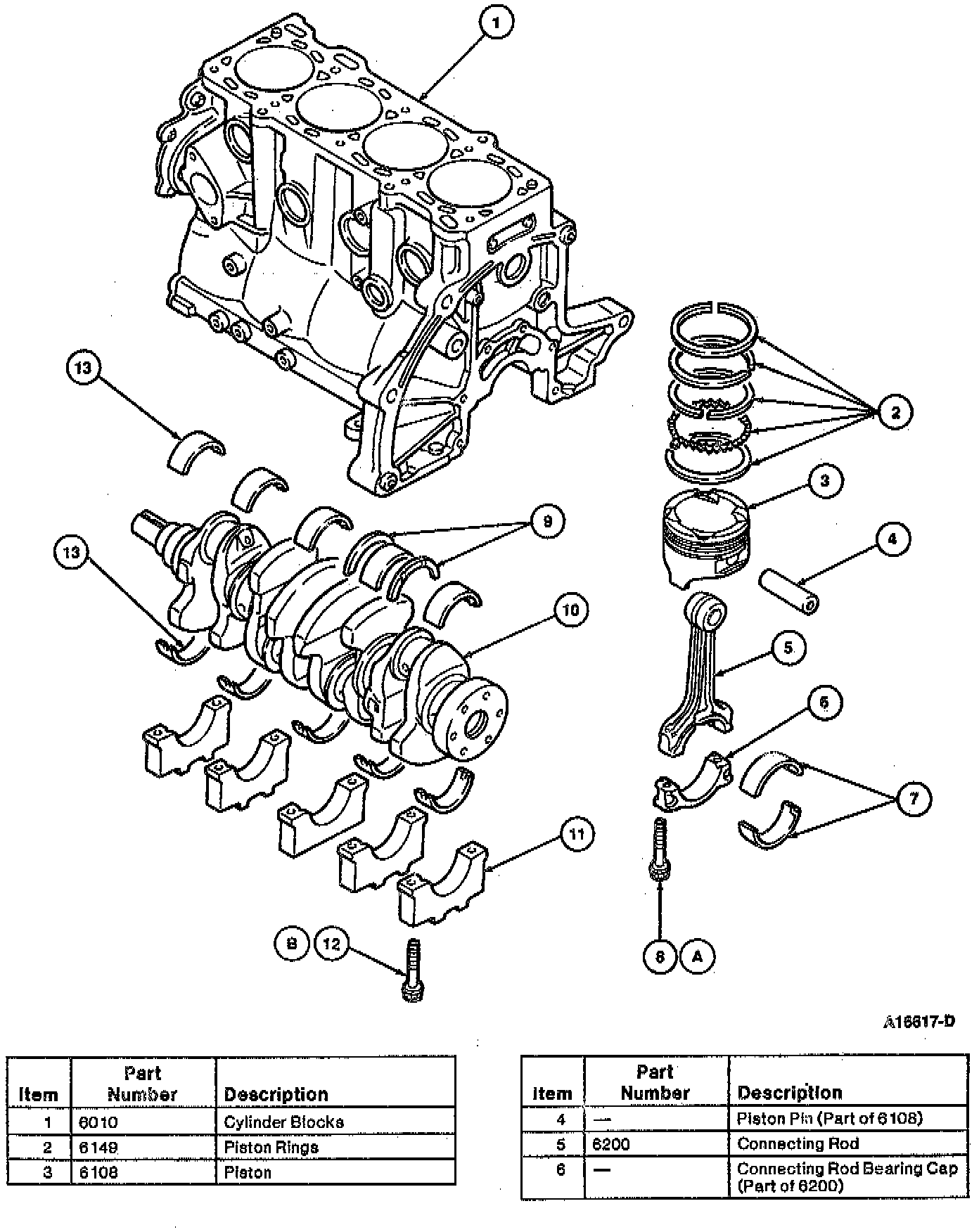

(Part 1 Of 2):

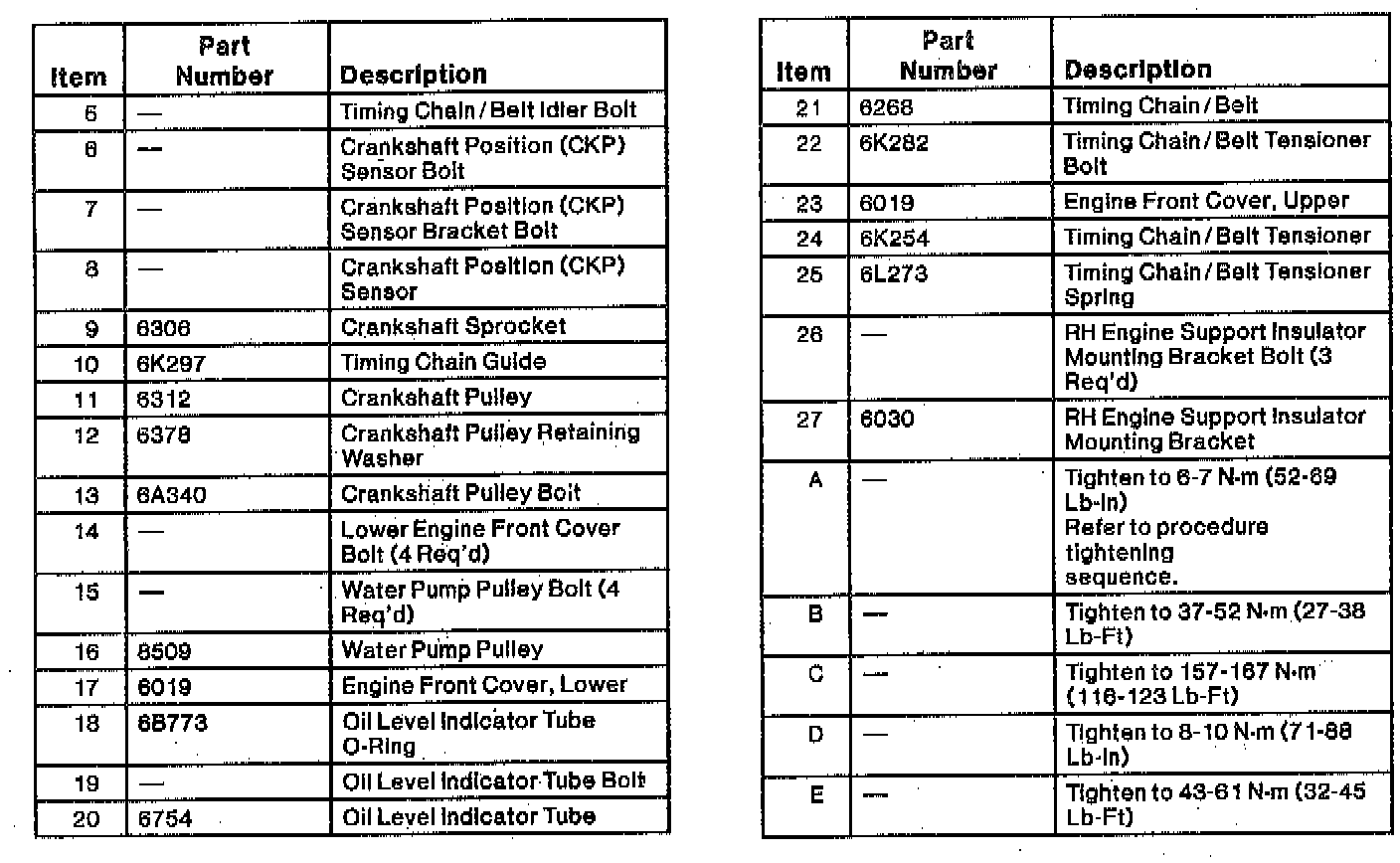

(Part 2 Of 2):



(Part 1 Of 2):



(Part 2 Of 2):





(Part 1 Of 2):



(Part 2 Of 2):



(Part 1 Of 2):



(Part 2 Of 2):



(Part 1 Of 2):



(Part 2 Of 2):
