Ignition Timing Connector: Locations

Engine View - Transmission Temperature Sensor/Switch, A/T:

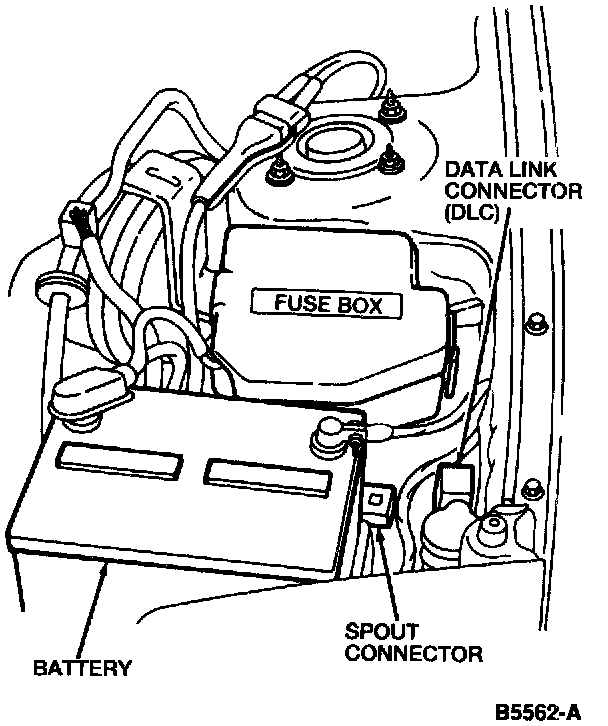

The Spark Out Test Connector is located at the LH side of the engine compartment, near data link connector.
