Cylinder Head Assembly

TORQUE SPECIFICATIONS

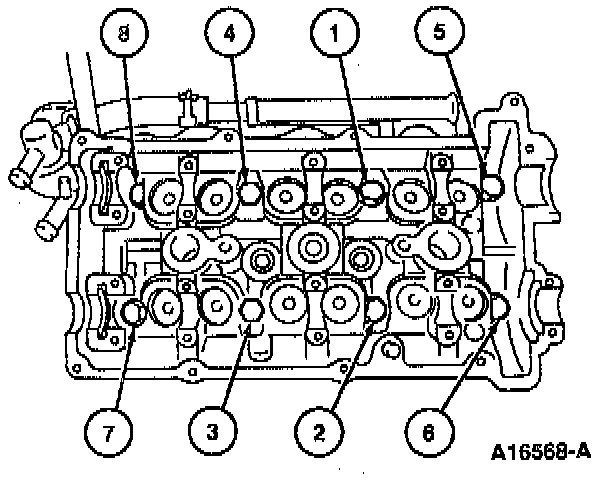

Tighten the cylinder head bolts in three steps in the sequence shown:
Step 1: 23-26 Nm (17-19 ft. lbs.).
Step 2: Tighten an additional 90 ± degrees
Step 3: Tighten an additional 90 ± degrees
