Oil Pump

DESCRIPTION
Oil Pump Type: Trochoid

DIMENSIONS
Oil Rotor-to-Oil Pump Housing Clearance Max.: 0.22 mm (0.0087 inch)
Rotor Tooth Tip Clearance Max.: 0.20 mm (0.0078 inch)





TORQUE SPECIFICATIONS

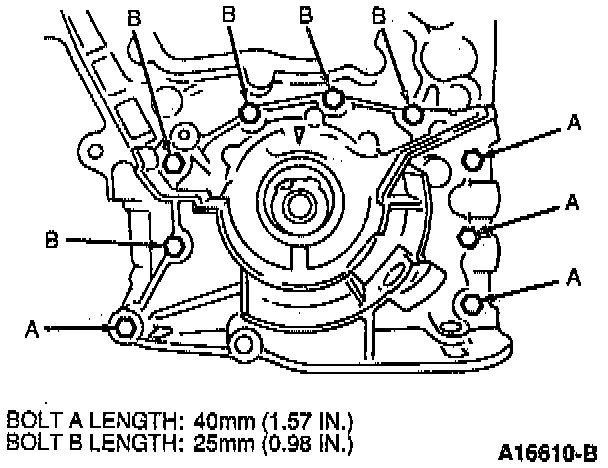

Oil Pump Bolts A and B: 19-25 Nm (14-18 ft. lbs.)
Oil Pump Cover Bolts: 6-9 Nm (52-78 inch lbs.)
