Axle Shaft

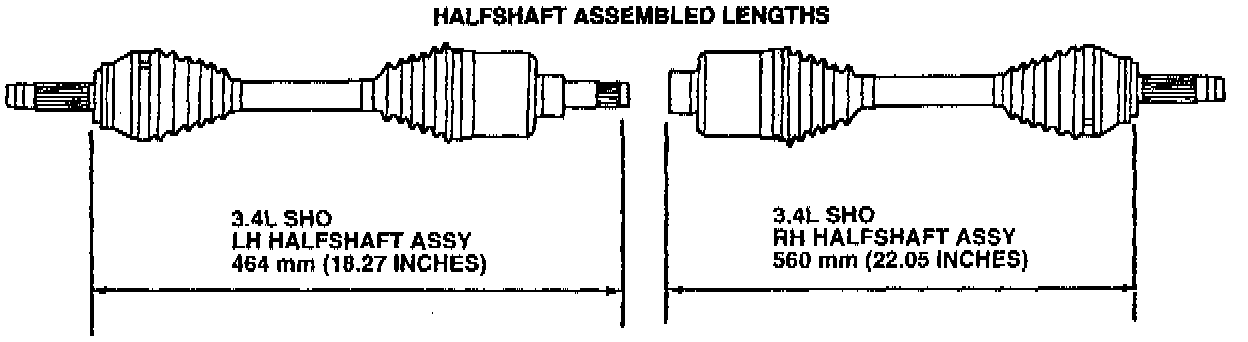

Halfshaft Assembled Length Specifications:






Assembled Length
Left Hand 464 mm (18.27 inch)
Right Hand 560 mm (22.05 inch)
