Alternator
Alternator

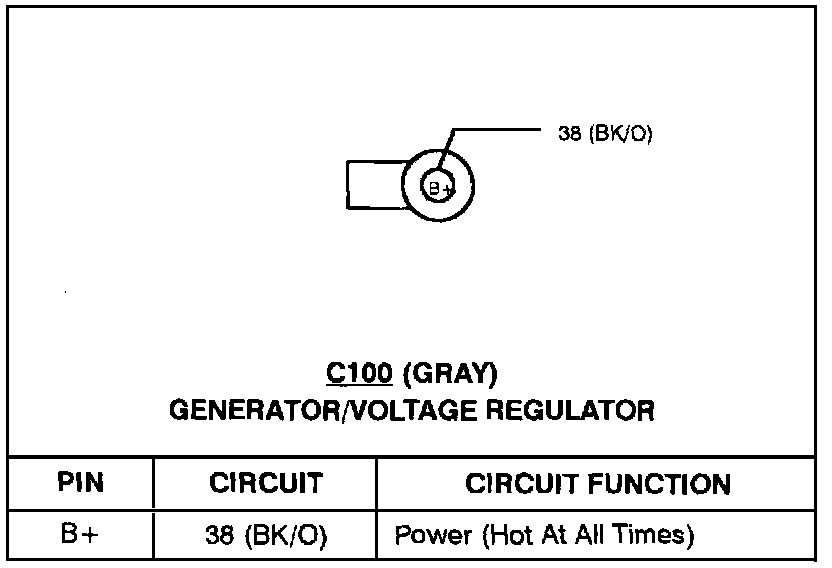

Generator/Voltage Regulator (C100):

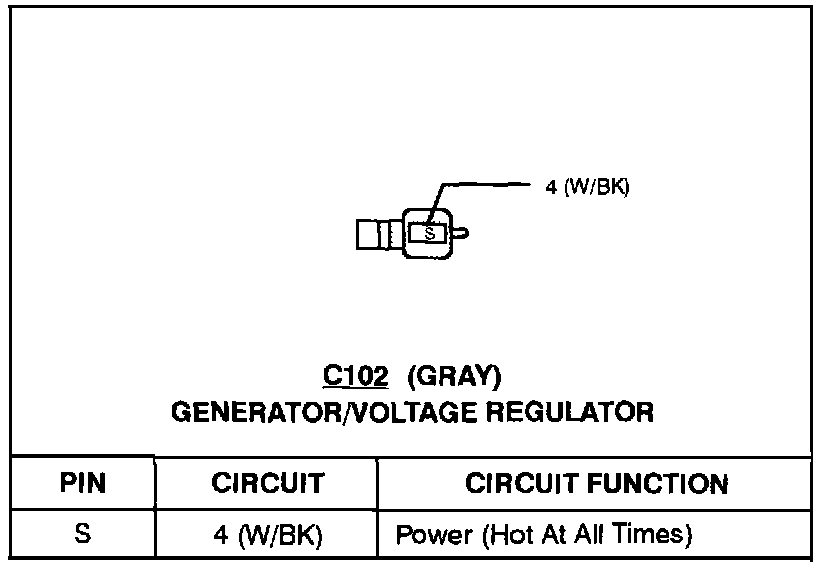

Generator/Voltage Regulator (C102):

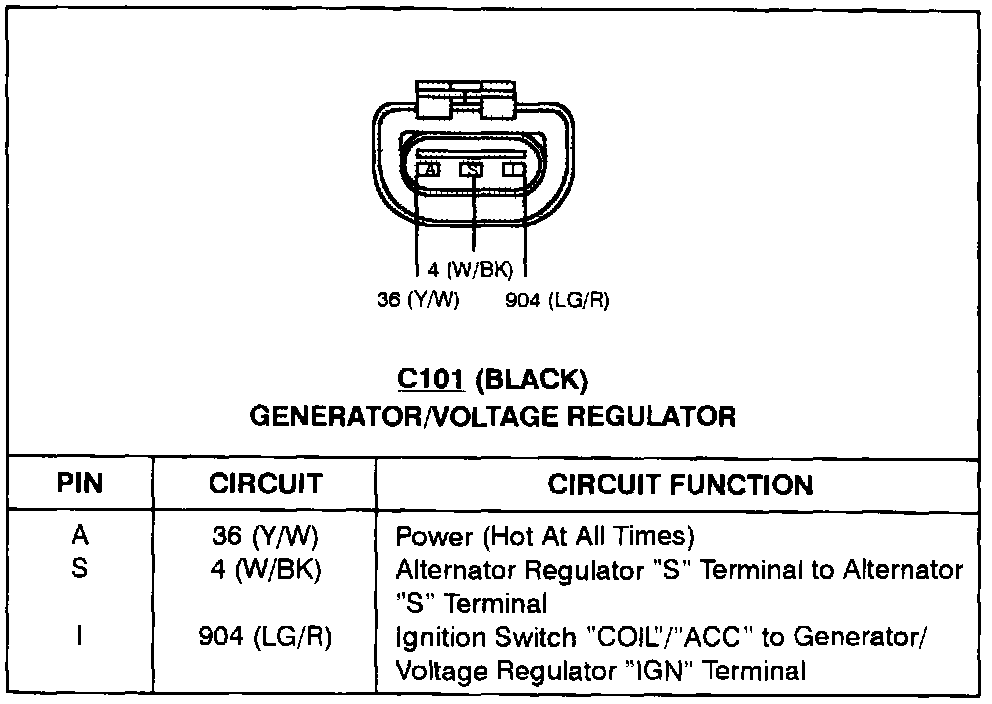

Generator/Voltage Regulator (C101):
