Sunroof / Moonroof Module
Sunroof / Moonroof Module

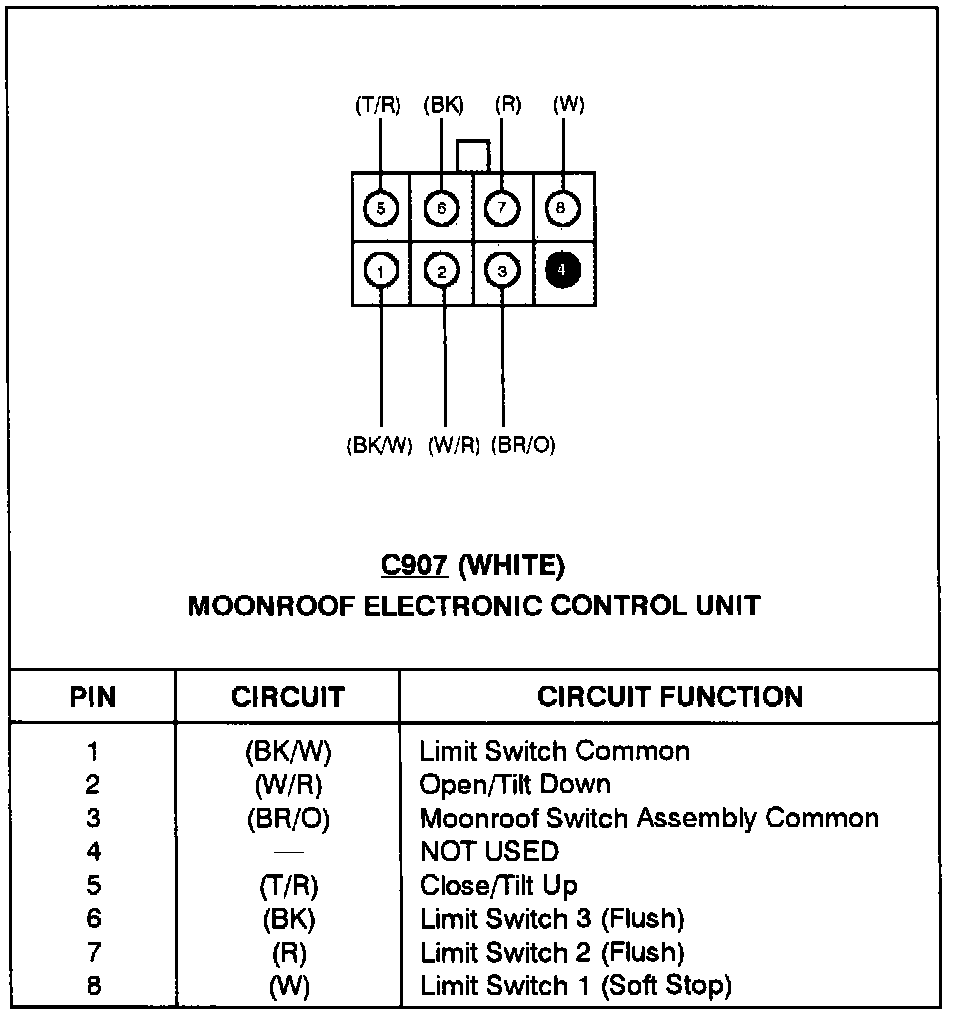

Moonroof Electronic Control Unit (C907):

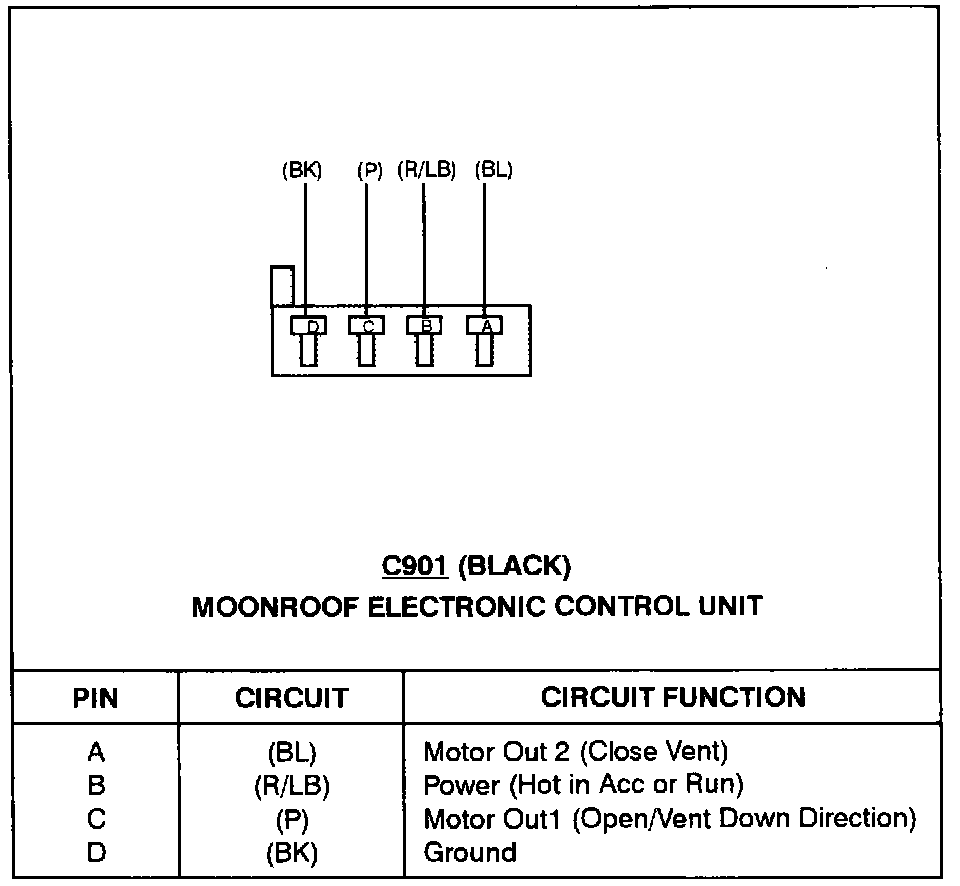

Moonroof Electronic Control Unit (C901):
