Right






REMOVAL
1. Open glove compartment.

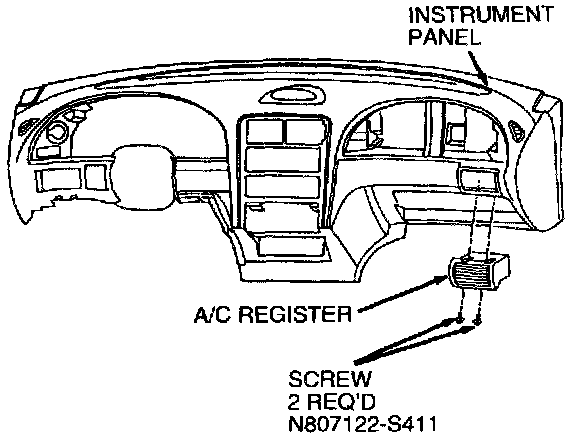

2. Remove two retaining screws from RH A/C register.
3. Pull A/C register out of instrument panel opening.

INSTALLATION
1. Follow removal procedure in reverse order.
