Ignition Switch Component Test
Ignition Switch Component Test

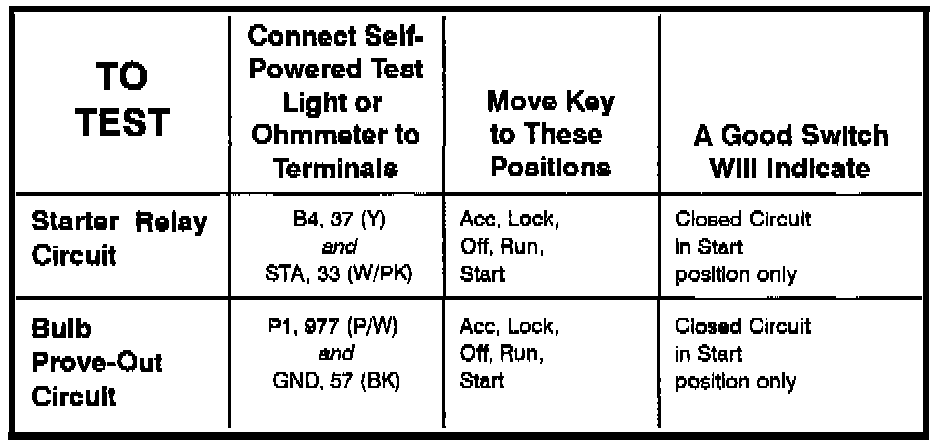

Ignition Switch - Component Testing Procedure:

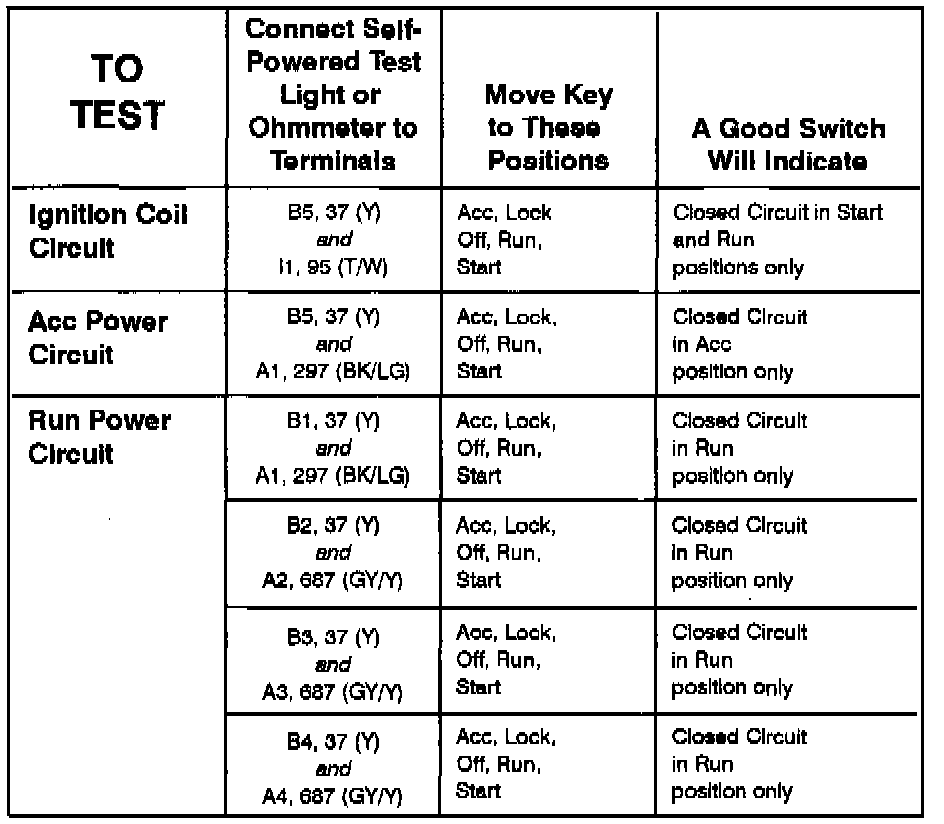

Ignition Switch - Component Testing Procedure:

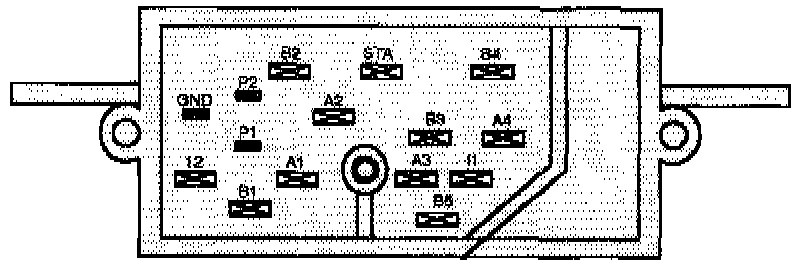

Ignition Switch - Terminal Locations:

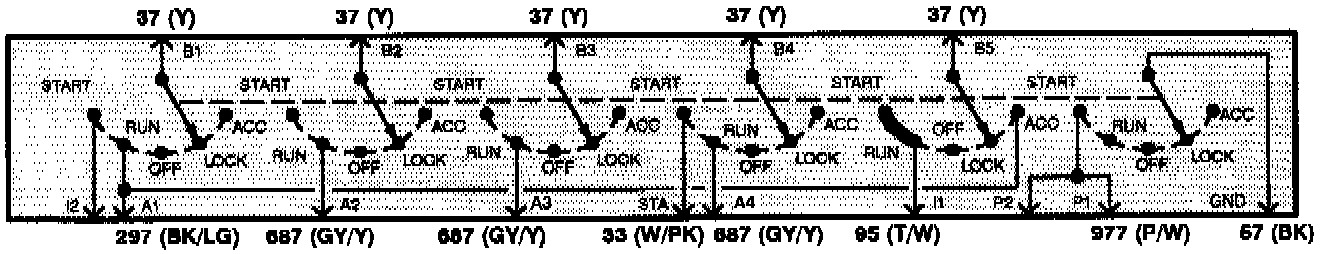

Ignition Switch - Schematic:
