Power Steering Line/Hose: Service and Repair

Removal
1. Refer to the illustration provided for the hose routing and retention points.

Installation





1. When connecting a fitting with a seal ring, a new seal ring must be installed.

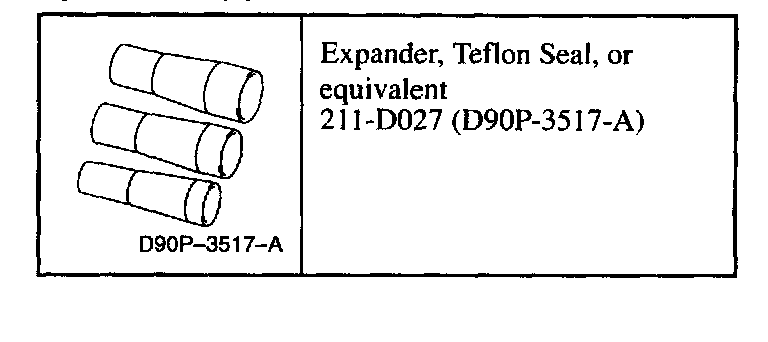

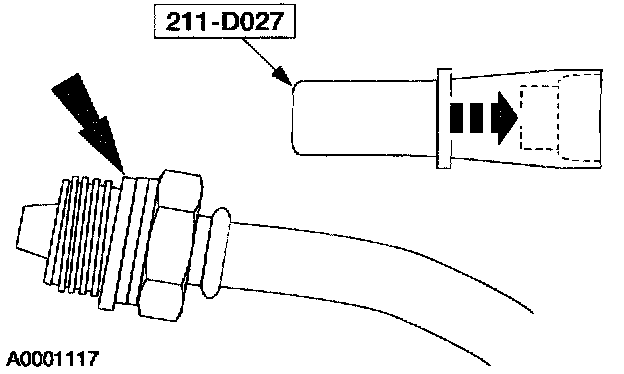

^ The special tool is used to install the return line connector seal and the pressure line connector seal.

2. Fill and leak check the system.
