Master Power Window Switch

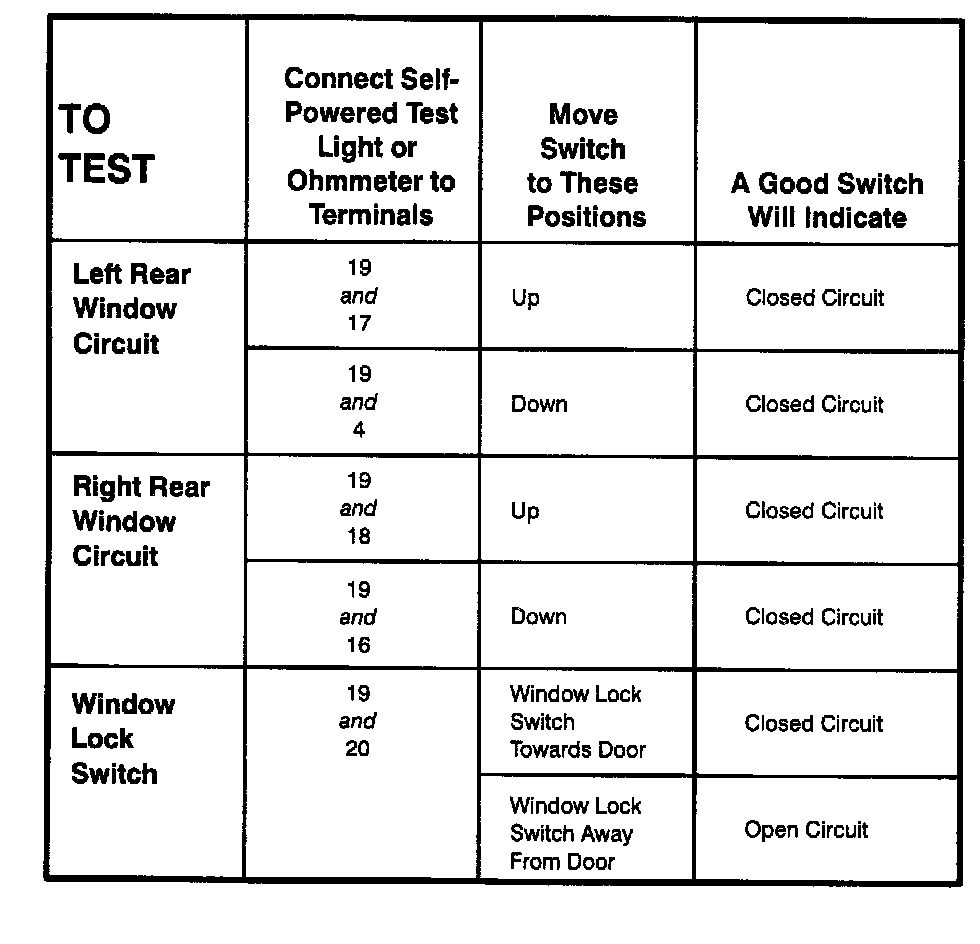

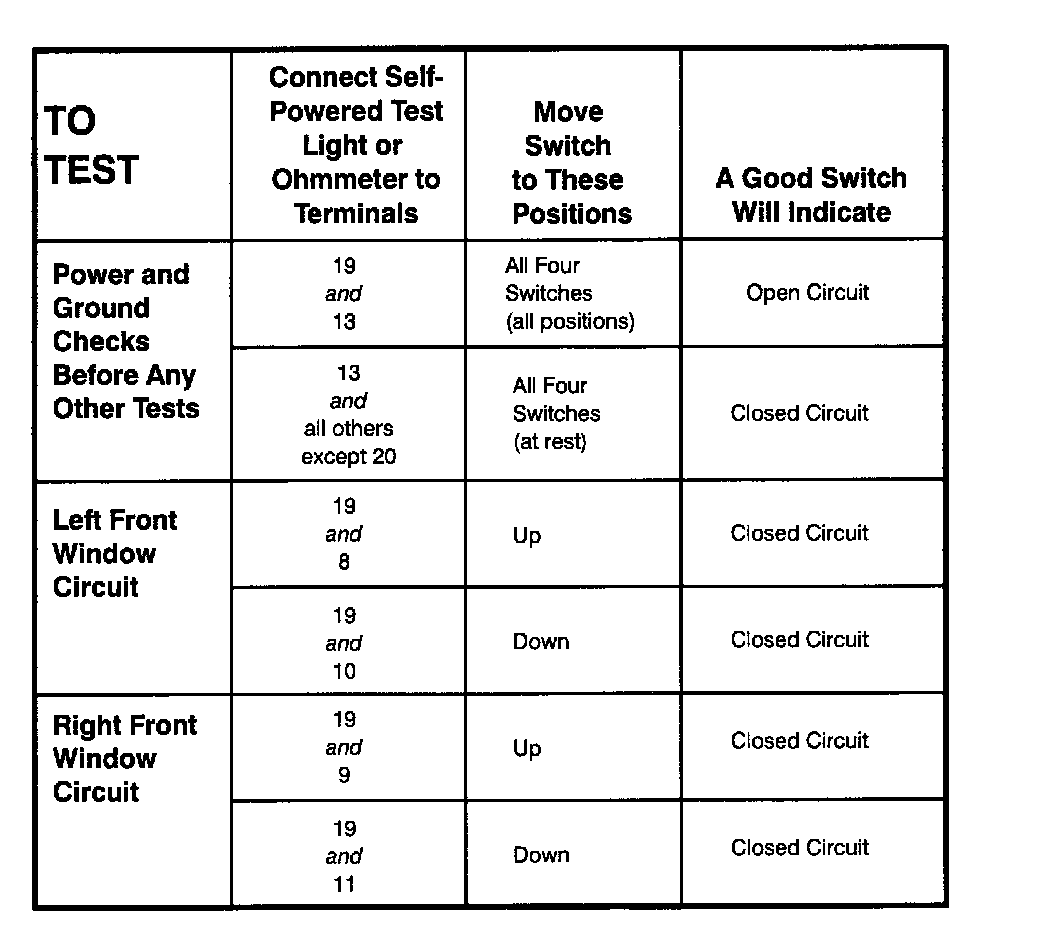

Component Testing Procedure:






Component Testing Procedure:

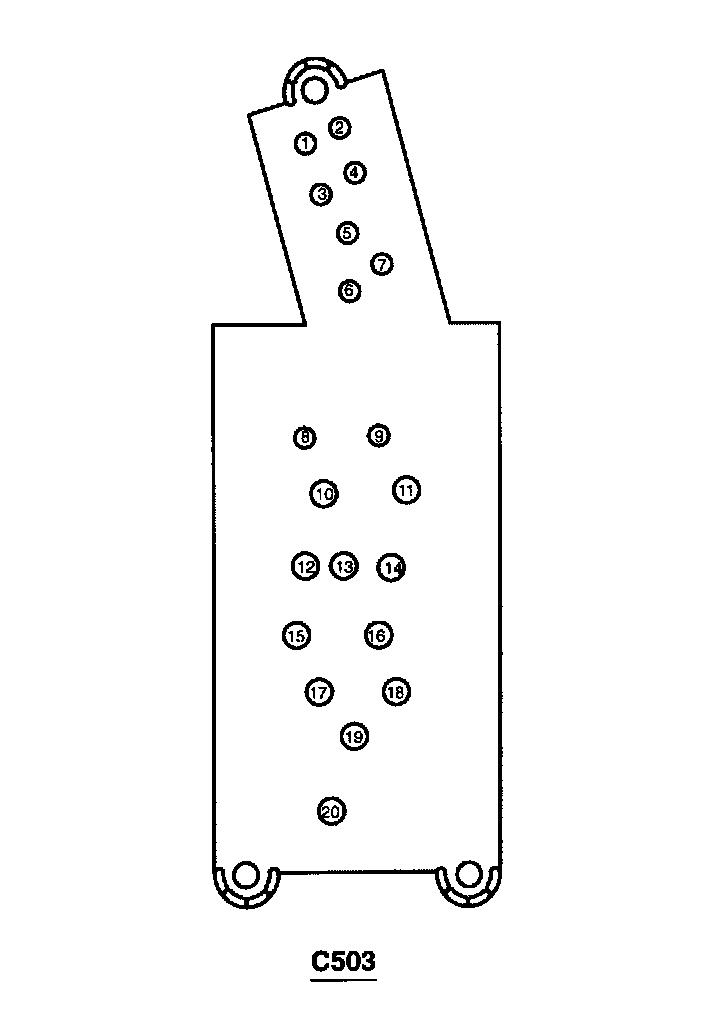

Terminals:

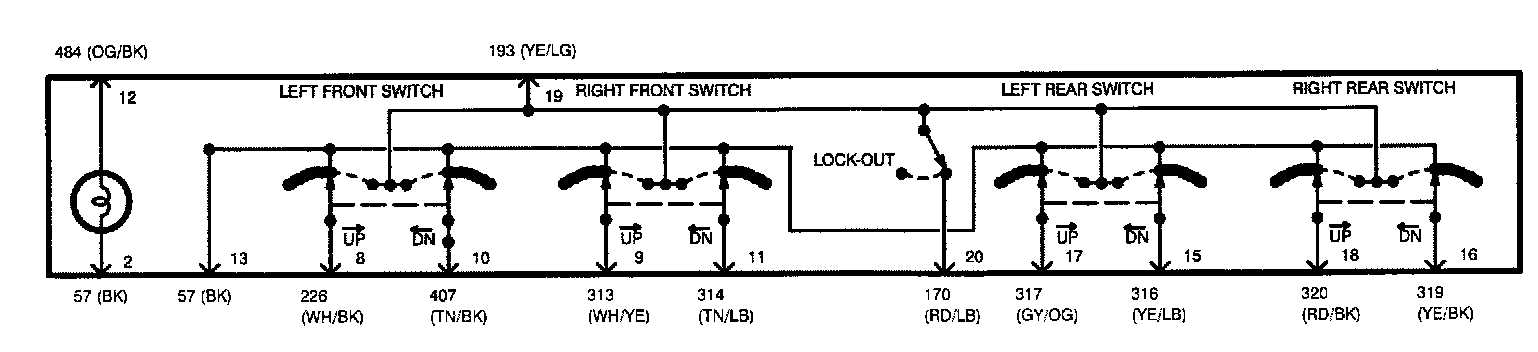

Schematic:
