Right Rear Power Window Switch
Right Rear Power Window Switch

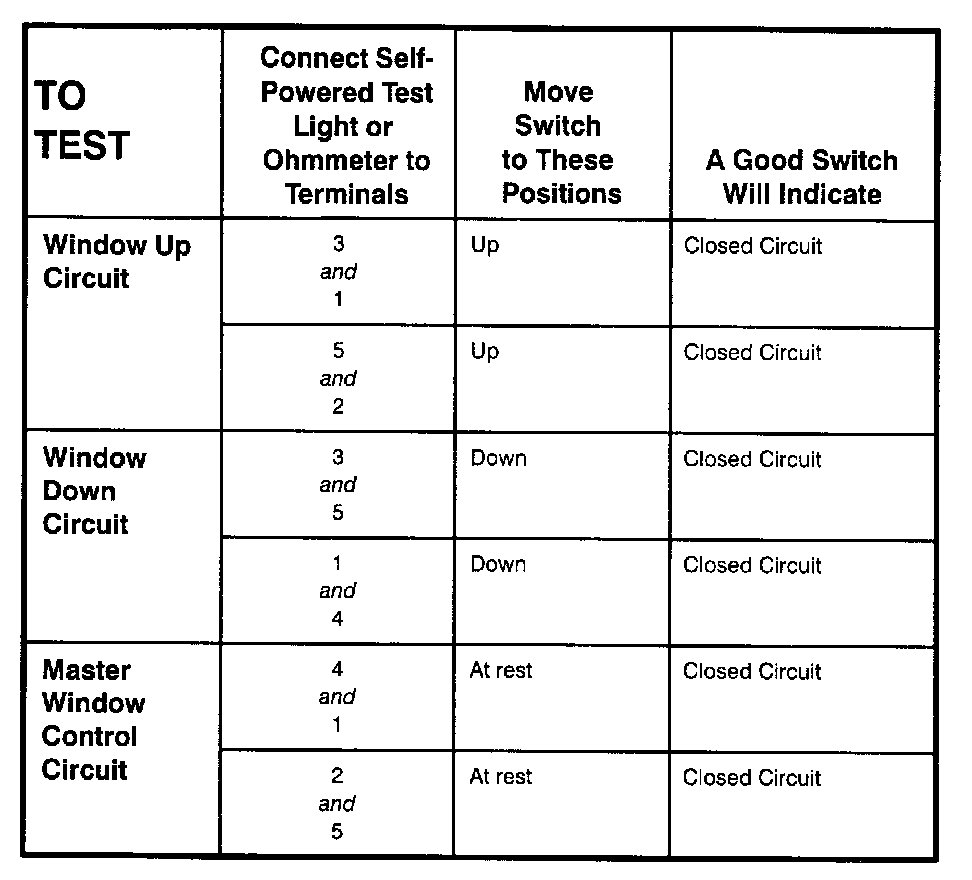

Component Testing Procedure:

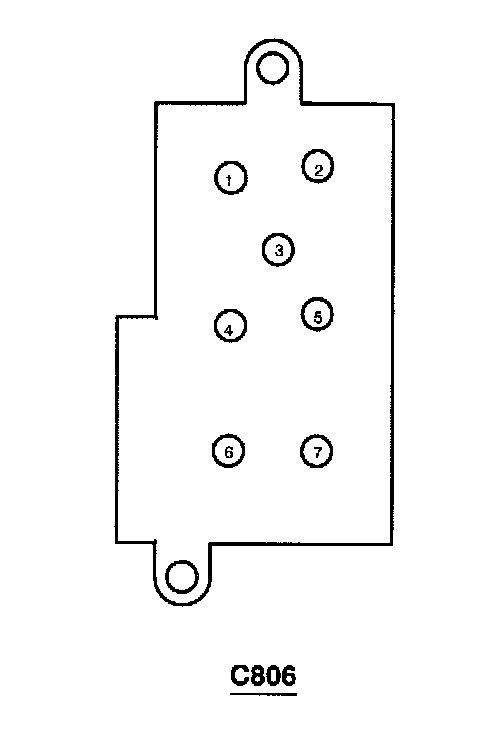

Terminals:

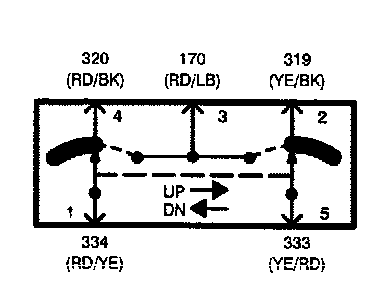

Schematic:
