Louvers

REMOVAL
RH and rear A/C register louvers can be removed without removing the A/C register.

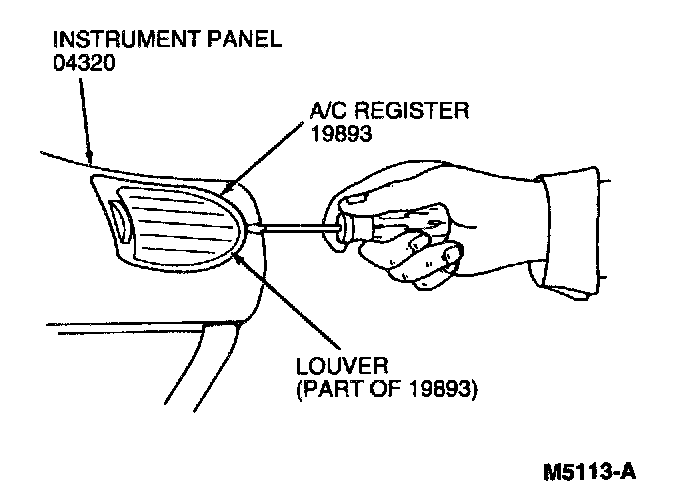

1. Remove all A/C register barrel assemblies by flexing until pivot pin disengages from side of A/C register housing.

INSTALLATION
1. Install new barrel assembly into A/C register opening by engaging pivot pin in side of A/C register.
