System Diagram
System Diagram

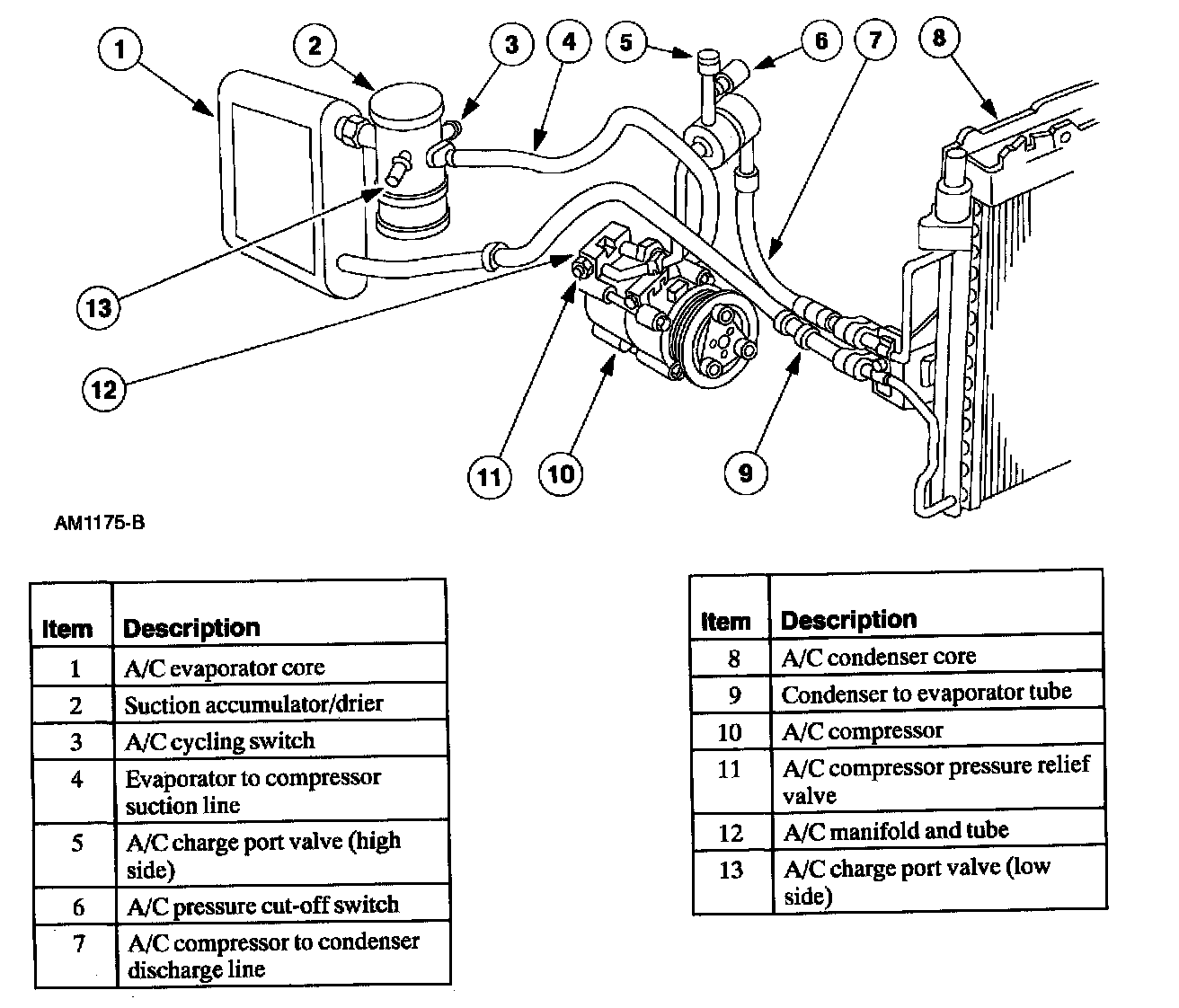

Refrigeration System Components:

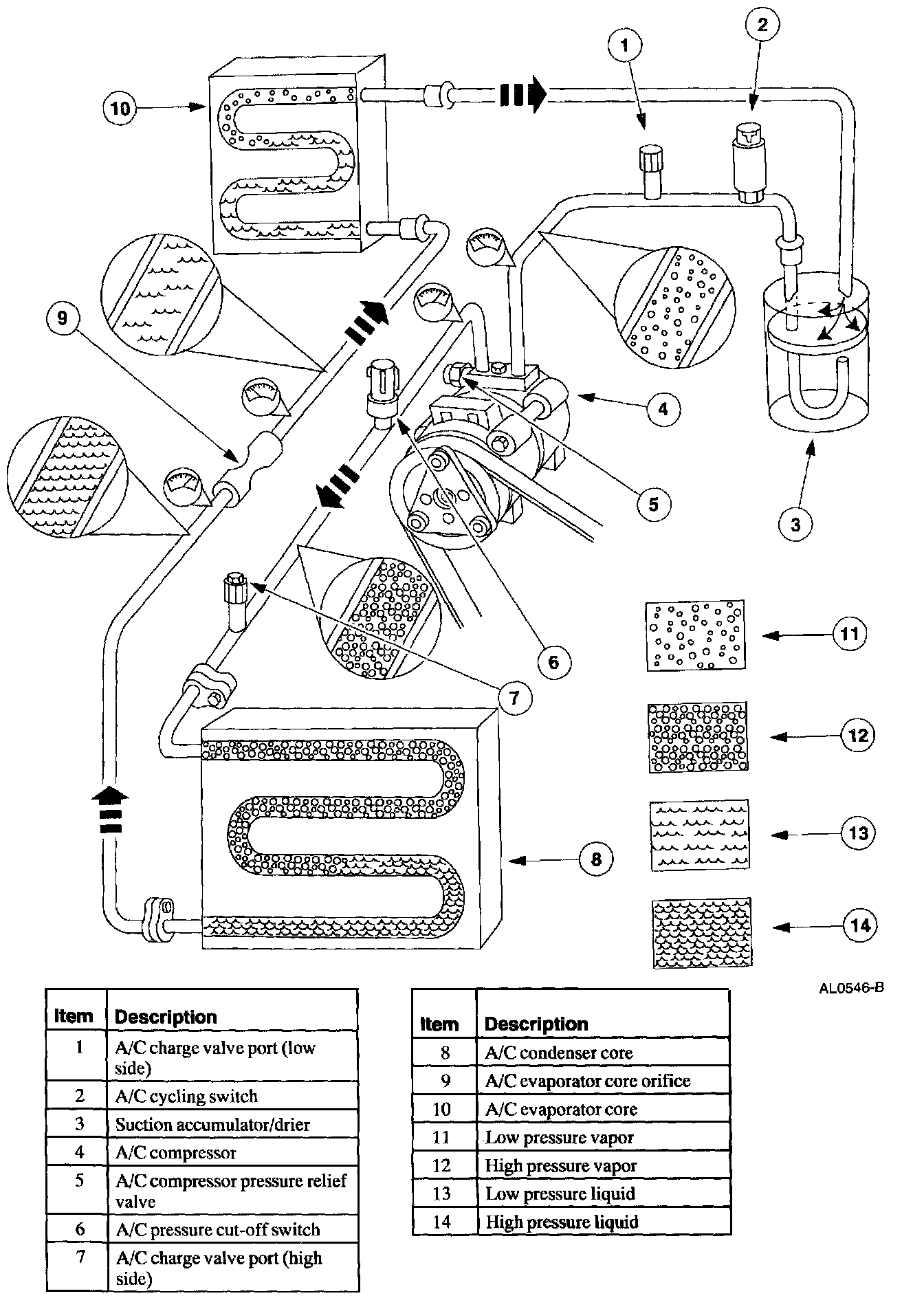

Clutch Cycling Orifice Tube Type Refrigerant System:
