Passenger Side

REMOVAL
1. Remove the passenger side airbag. For additional information, refer to Air Bag Systems.

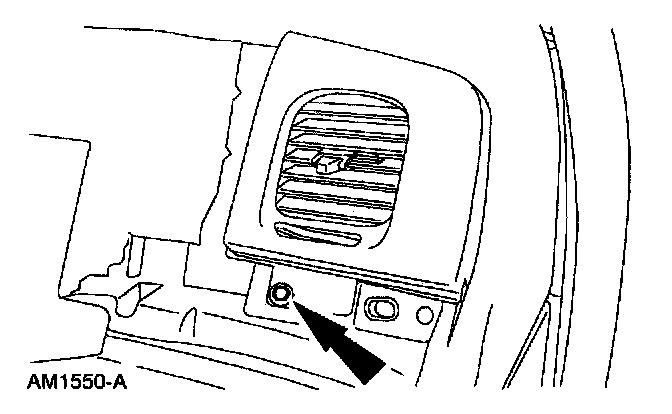

2. Remove the screw and the RH instrument panel register.

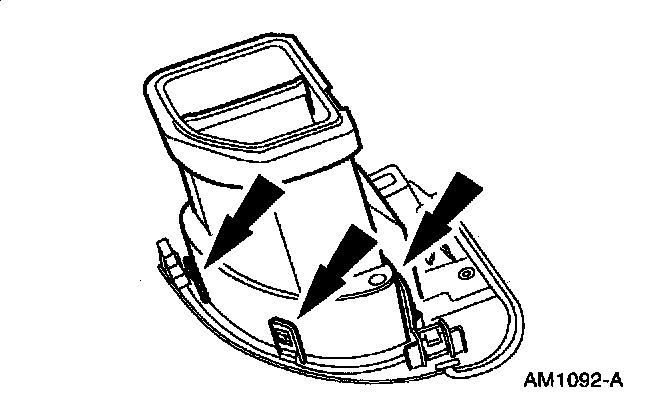

3. Disengage the lock tabs and remove the register assembly.

INSTALLATION
1. To install, reverse the removal procedure.
