Heater Core: Diagrams

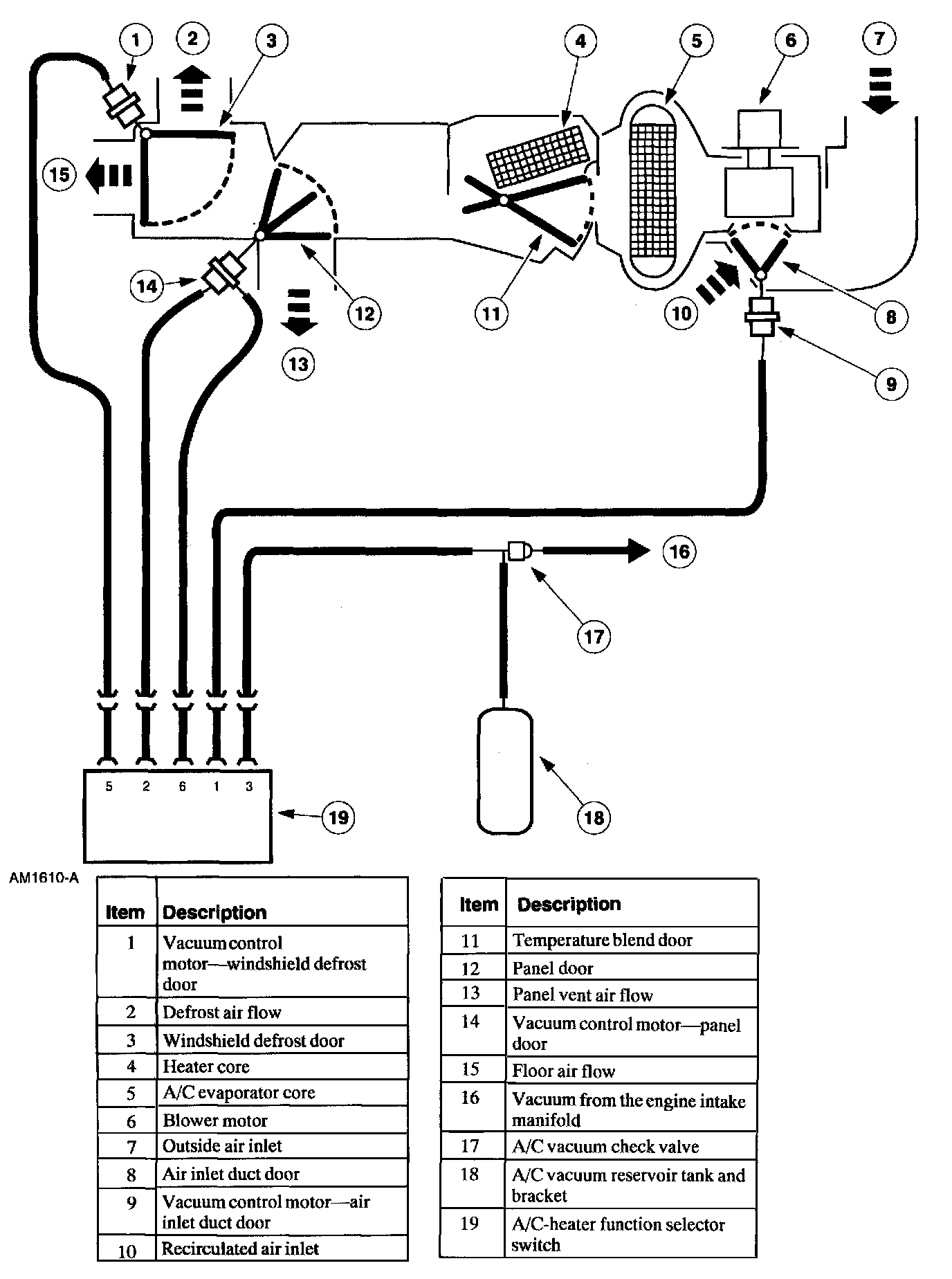

Vacuum Schematic - Manual A/C:

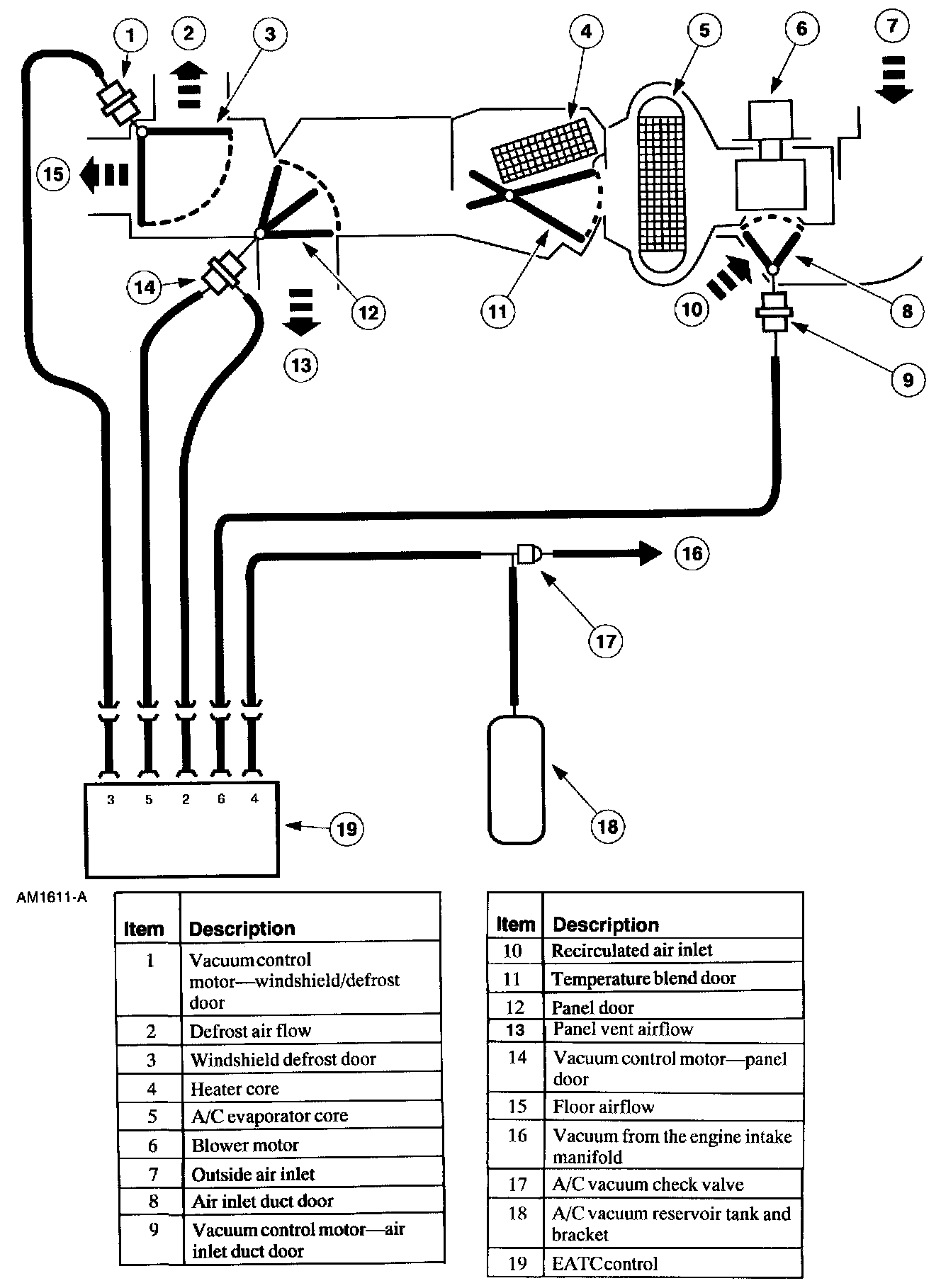

Vacuum Schematic - Electronic Automatic Temperature Control:
