Locations
>>
Connector Locations
Connector Locations

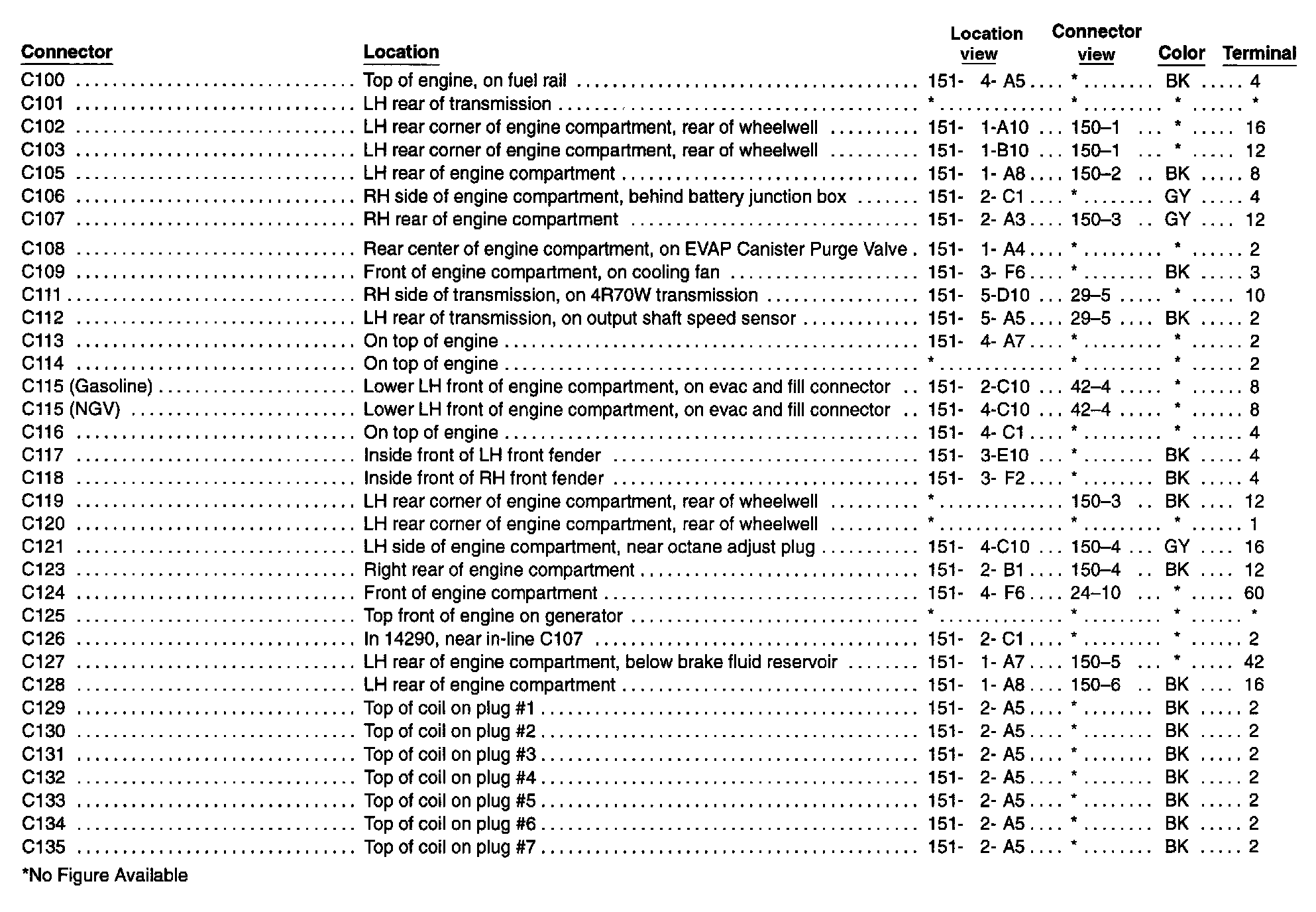

C100-C135:

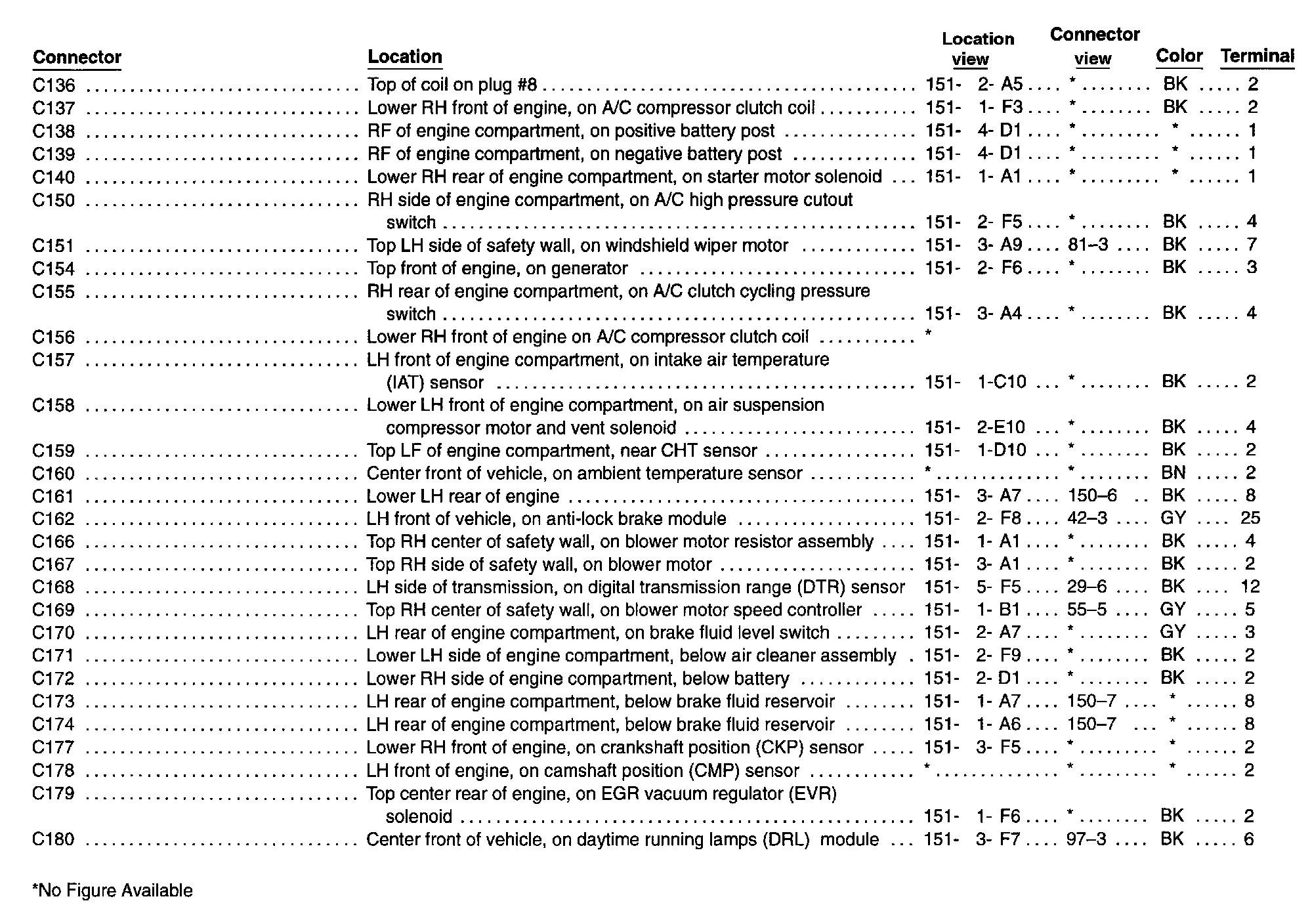

C136-C180:

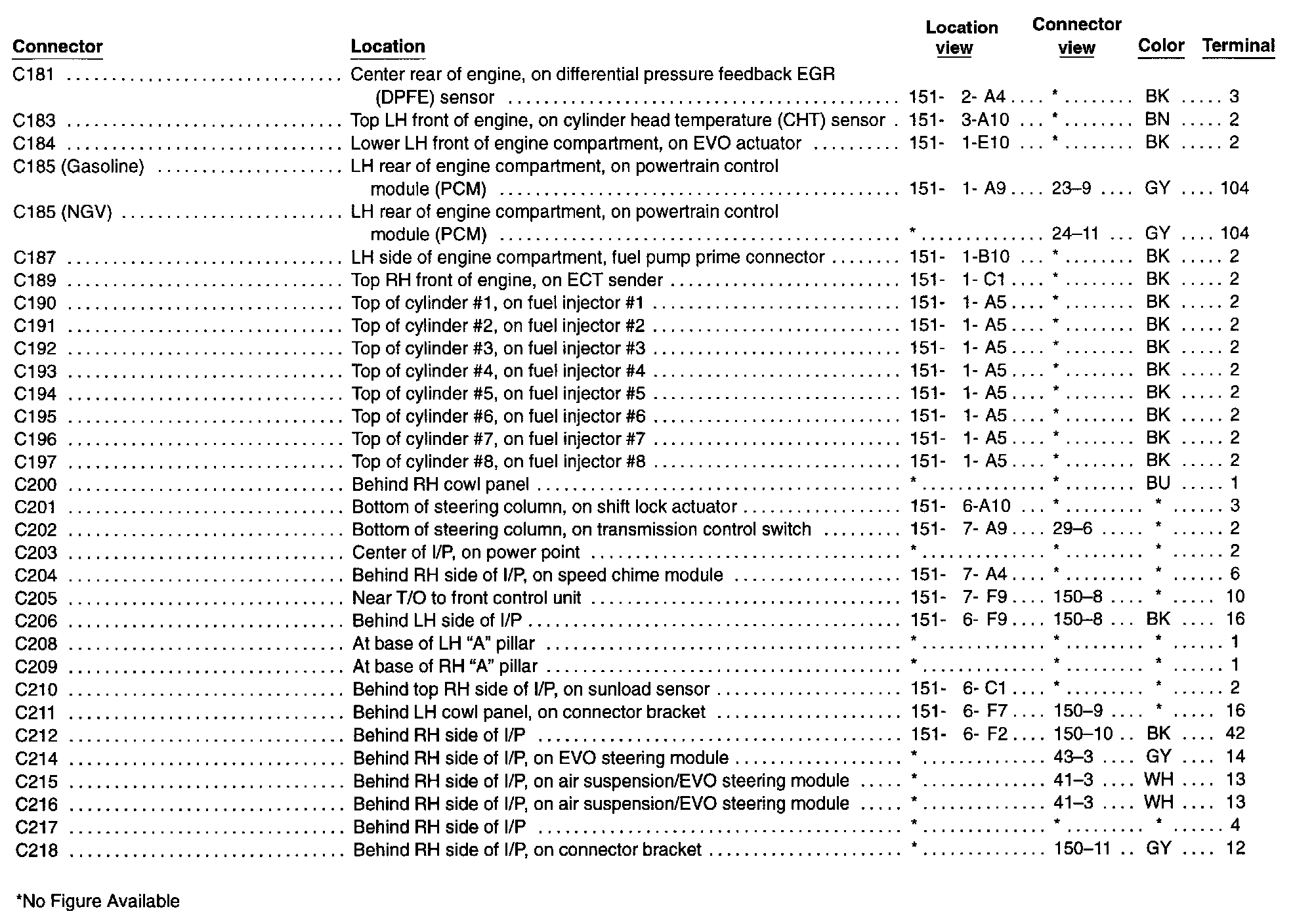

C181-C218:

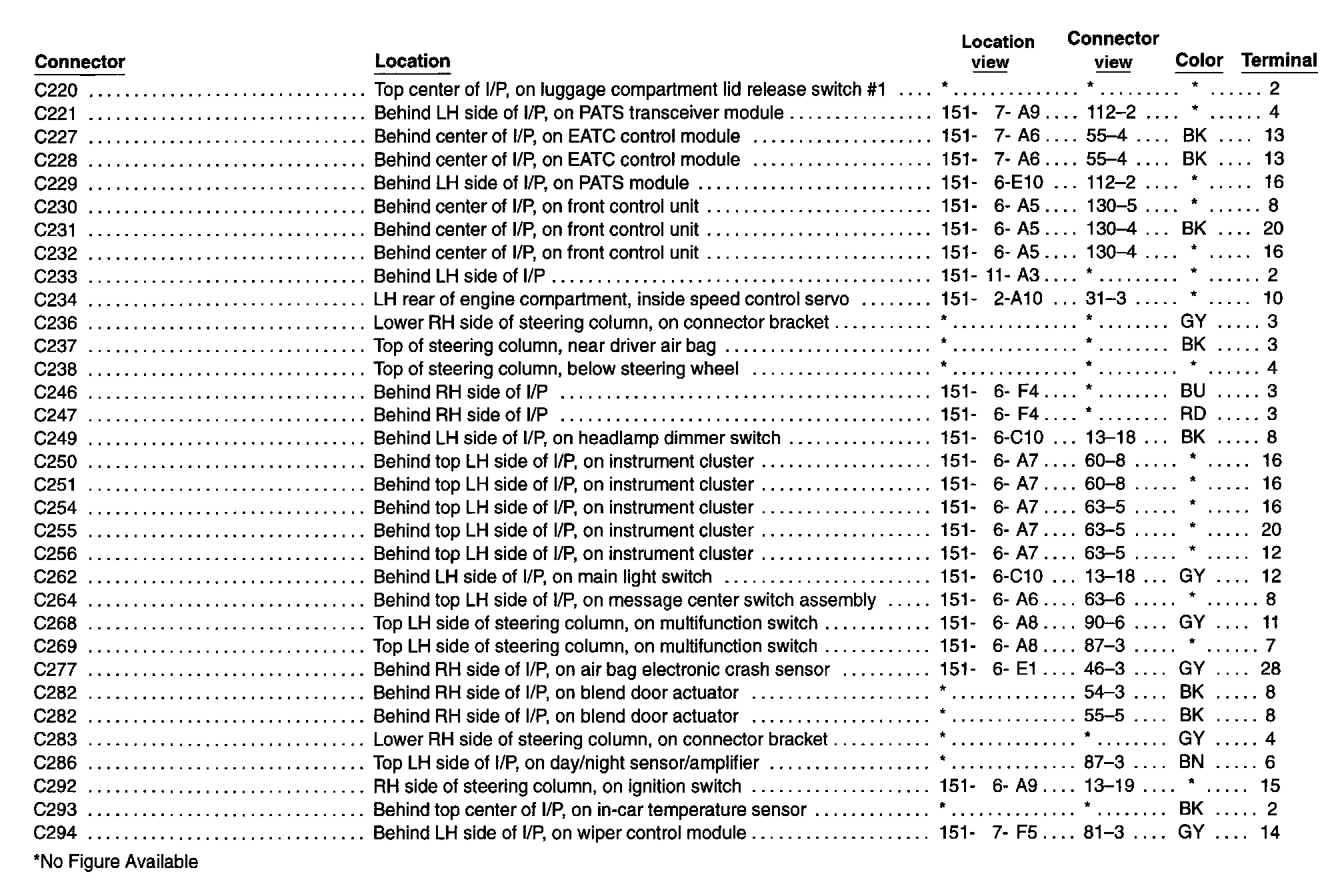

C220-C294:

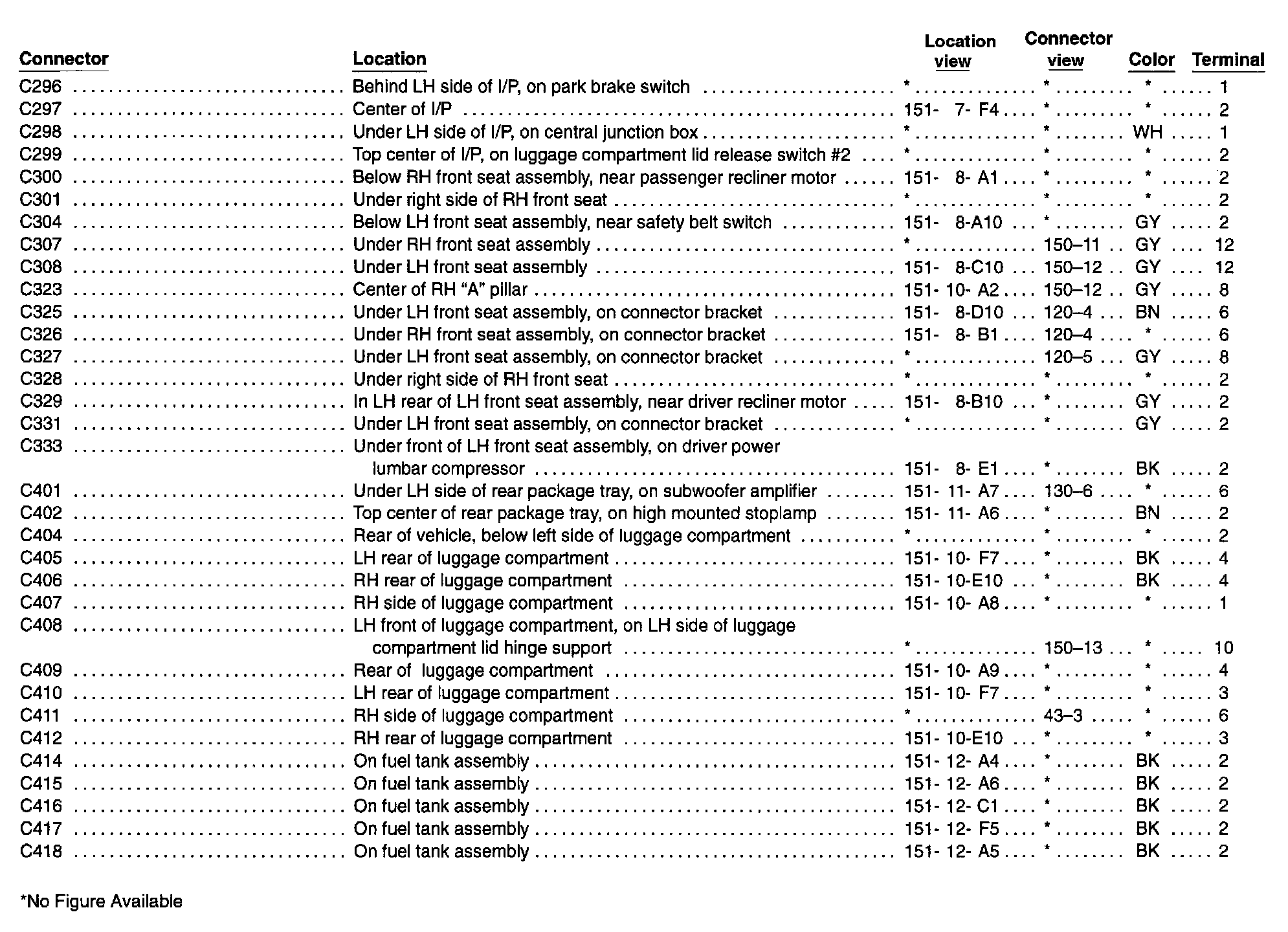

C296-C418:

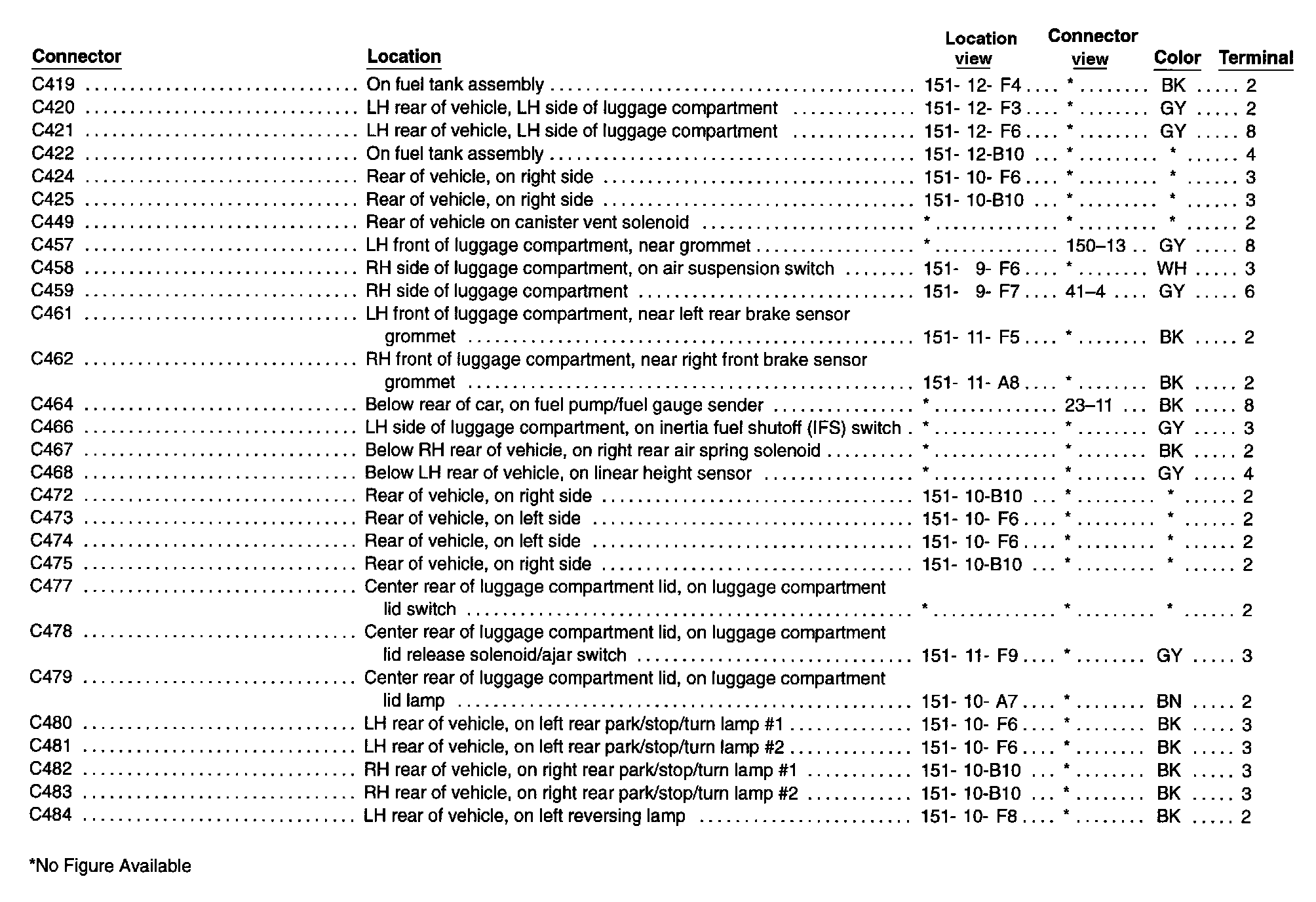

C419-C484:
C485-C610:

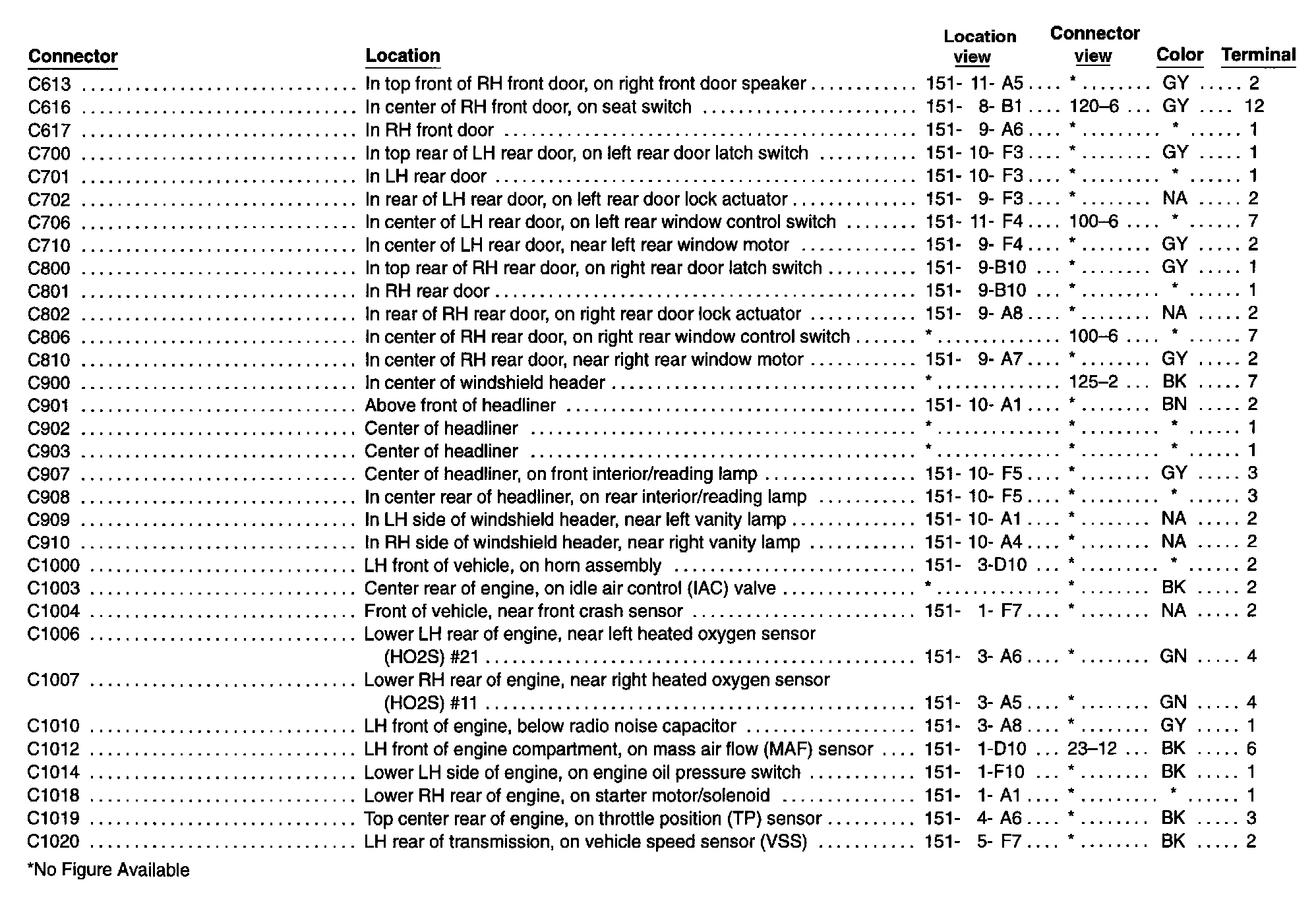

C613-C1020:

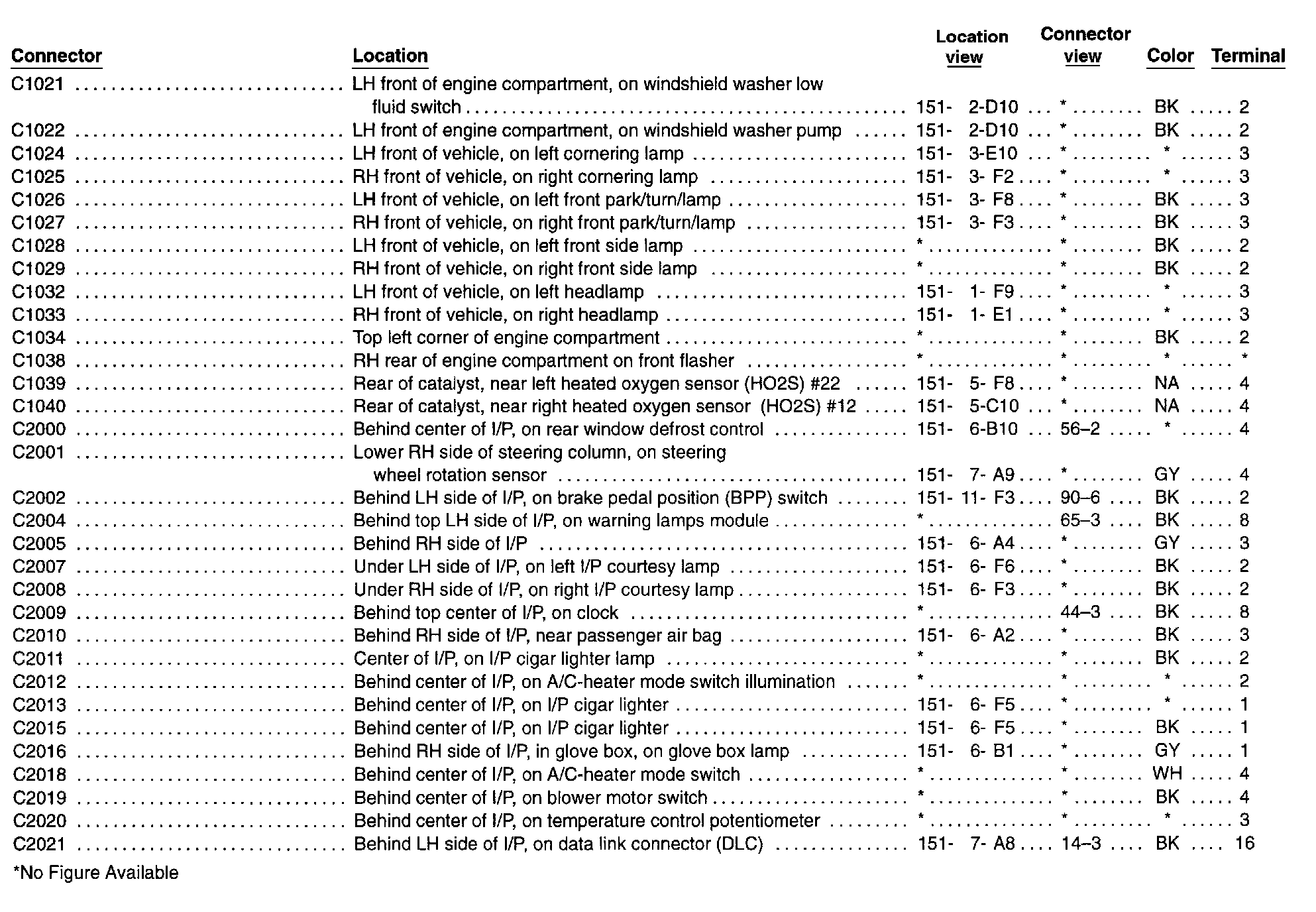

C1021-C2021:

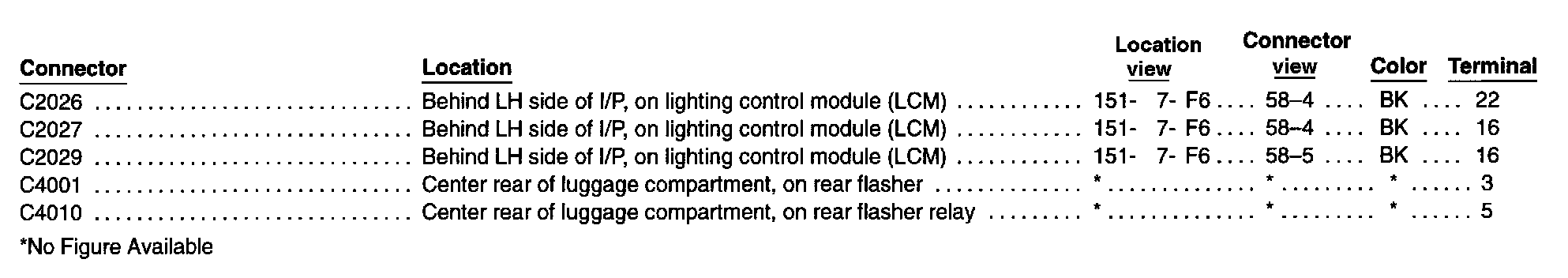

C2026-C4010:
