RF Window/Door Lock Control Switch

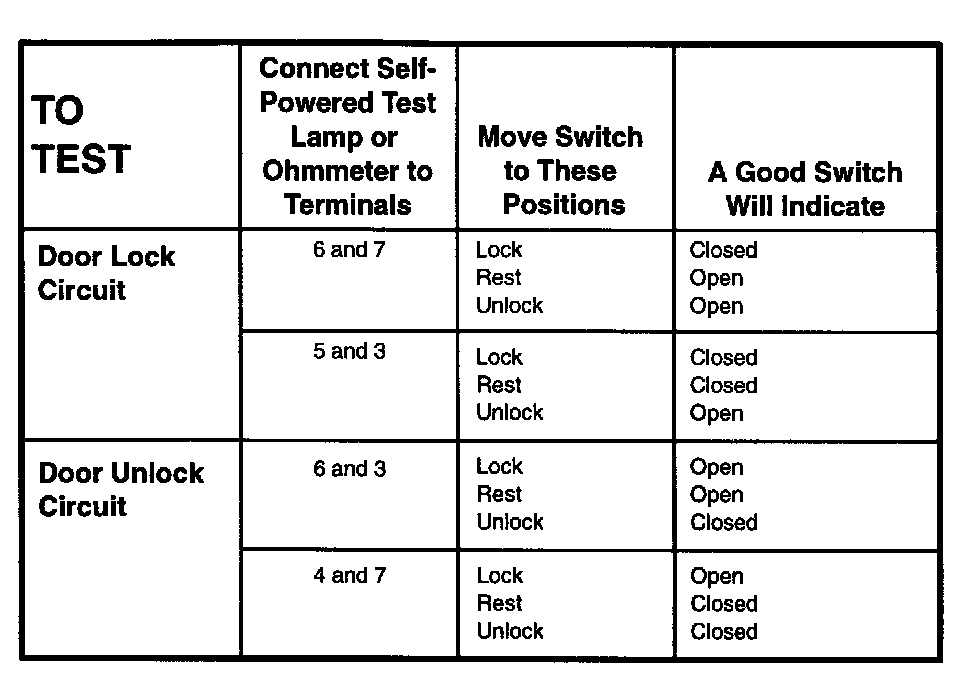

Component Testing Procedure:

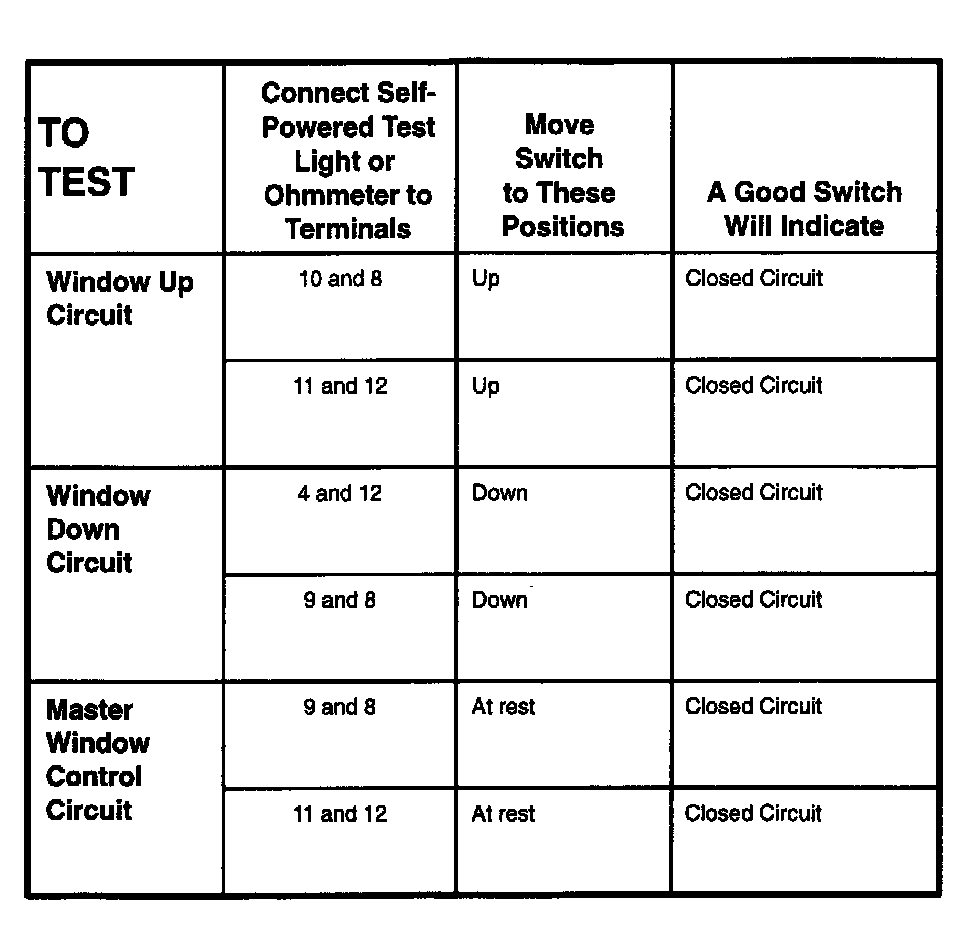

Component Testing Procedure:

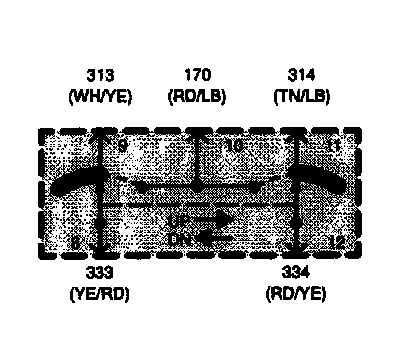

Schematic:






Terminals:

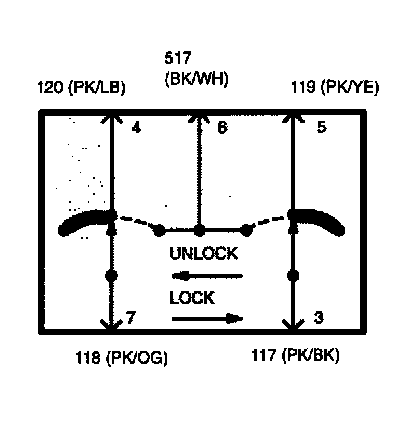

Schematic:
