Front

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.







2. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.

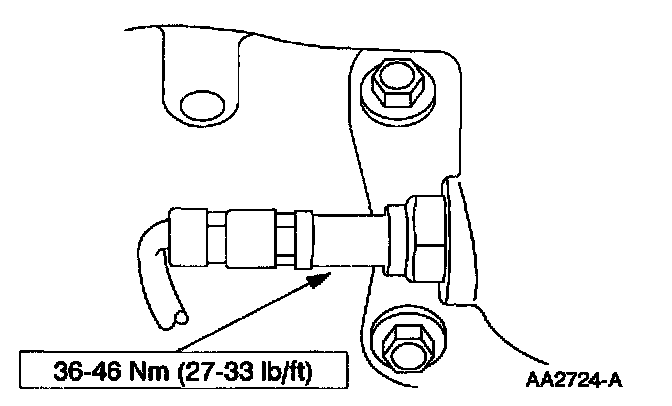

3. Remove the HO2S.

NOTE: The exhaust manifold heat shield is not shown for clarity.

INSTALLATION
1. To install, reverse the removal procedure.
