Rear

REMOVAL
1. Remove the LH front wheel and tire. For additional information, refer to Wheels, Tires, and Alignment.







2. Remove the LH splash shield.

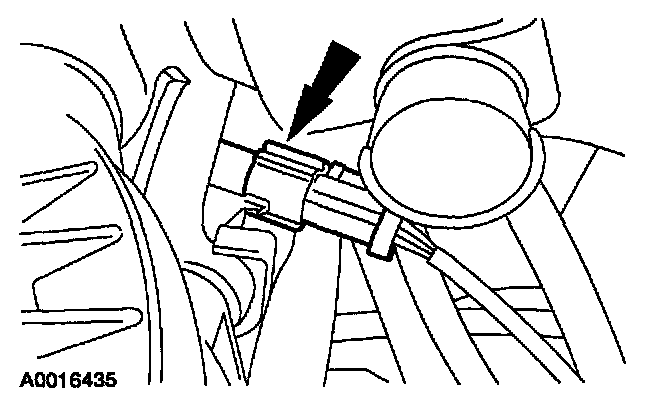

3. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.







4. Remove the HO2S.

INSTALLATION
1. To install, reverse the removal procedure.
