Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2000 >> Focus L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Input Shaft

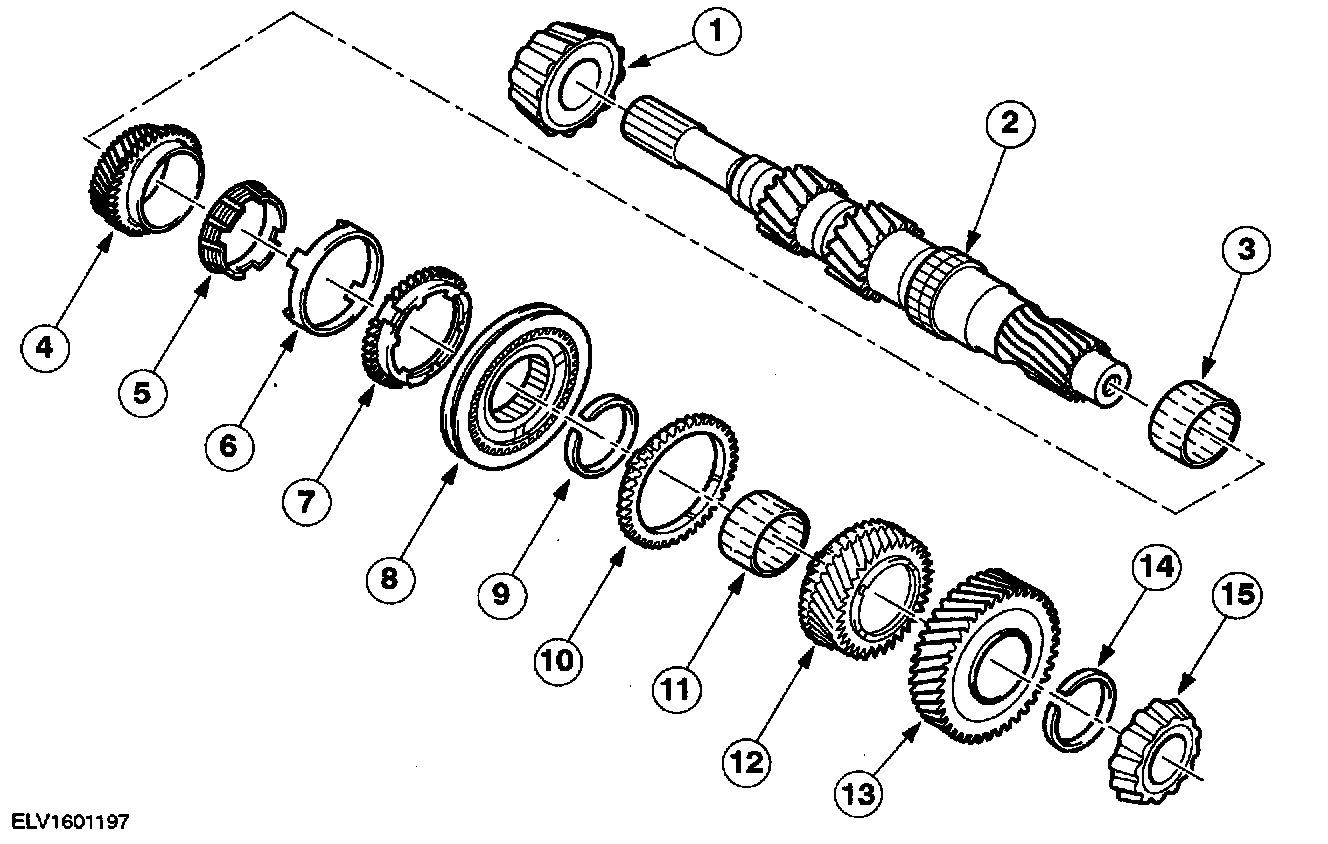

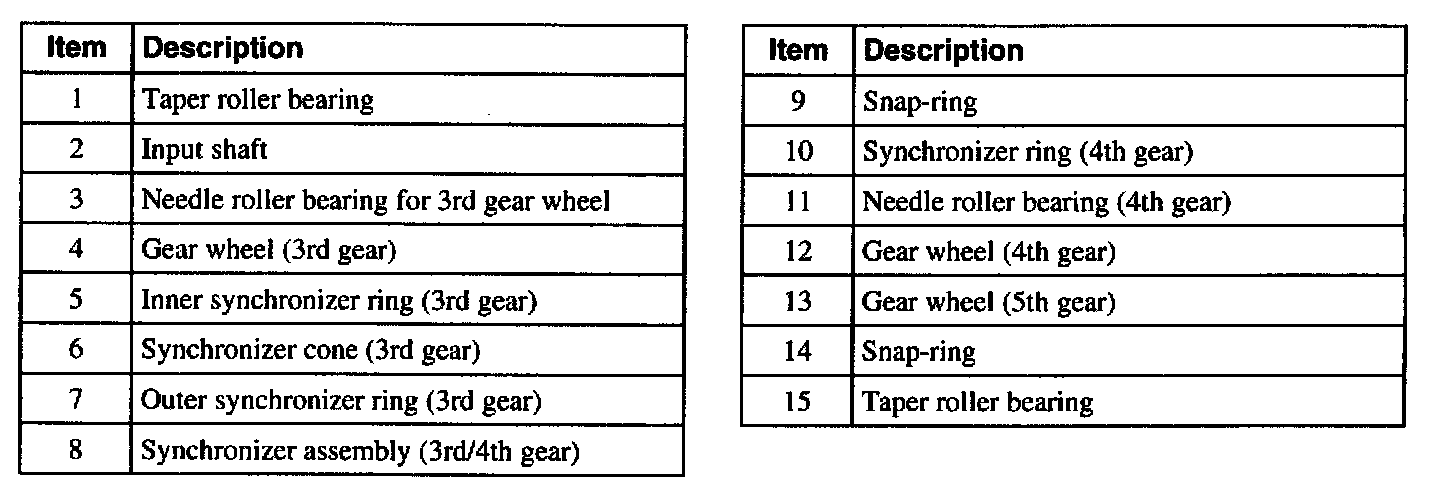

Input Shaft





1 of 2





2 of 2
