Timing Component Alignment Marks: Locations

NOTE: Ford does not provide camshaft gear timing marks, or information to perform timing belt service without the special tools shown in this procedure.

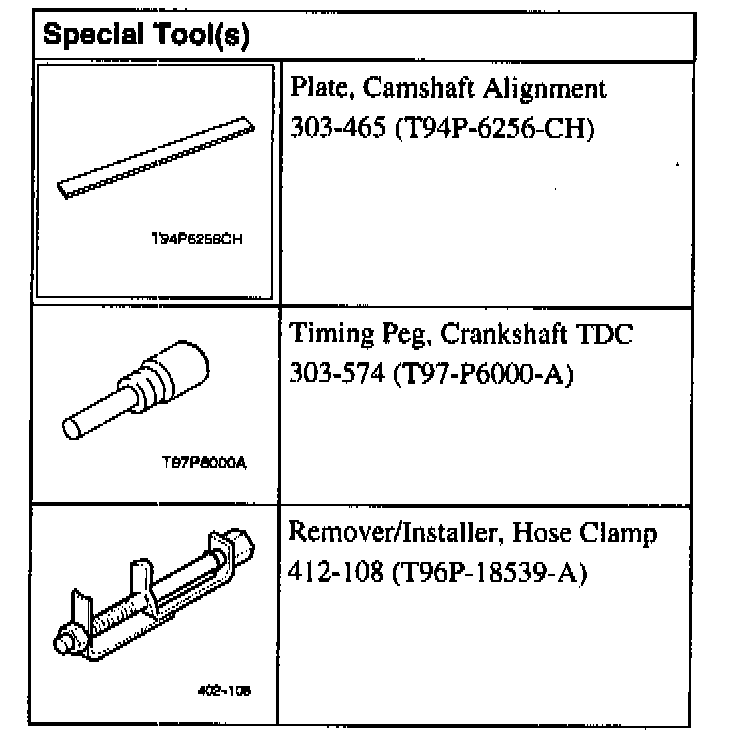

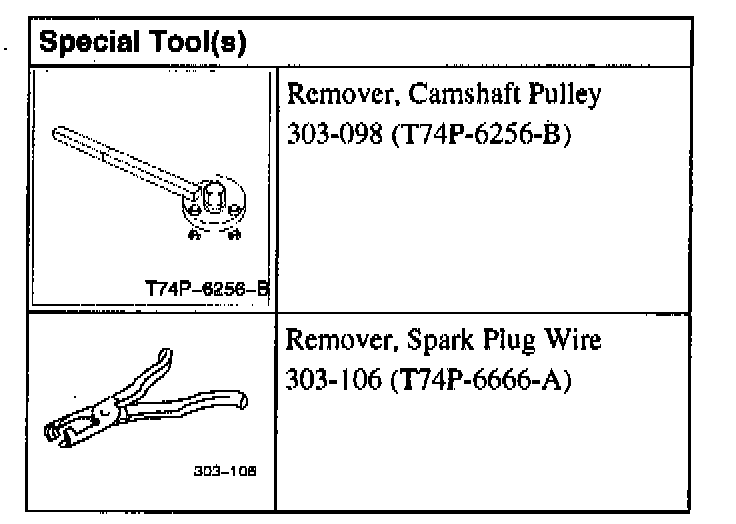

Special Tools:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

NOTE: Rotate the crankshaft clockwise.

- Rotate the crankshaft to TDC on cylinder number 1.
- Cylinders No 1 and No 4 are at TDC when the Woodruff key points straight up.

For complete Timing Belt Removal and Installation information: Service and Repair
