Heated Oxygen Sensor

REMOVAL







1. Remove the exhaust heat shield.

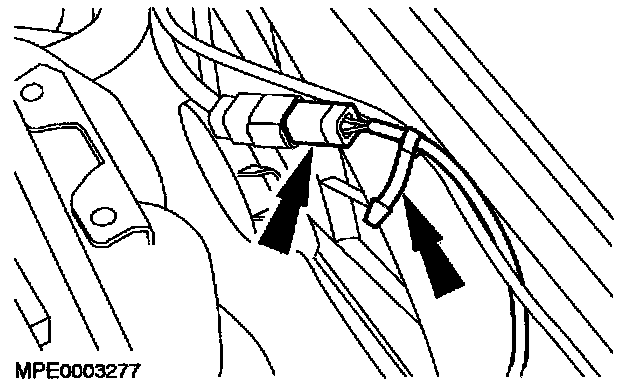

2. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector and release the tie strap.

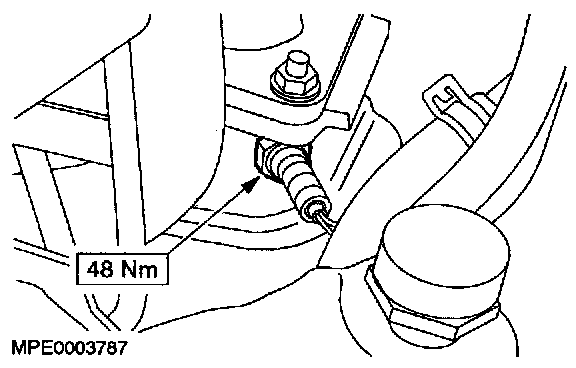

3. Remove the HO2S.

INSTALLATION












1. To install, reverse the removal procedure.
