Coupler HVAC: Service and Repair

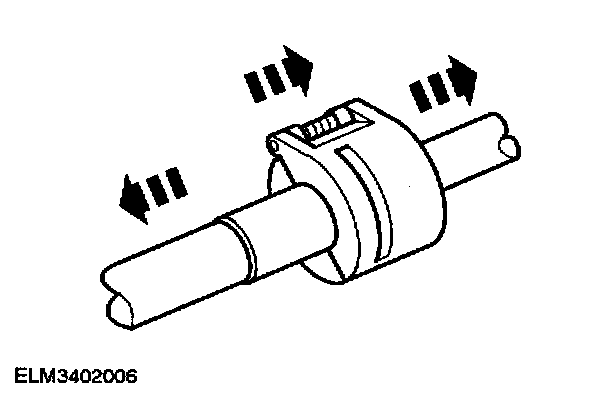

1. Fit the special tool.
- Fit the special tool in such a way that the inner collar can be inserted into the locking spring.

NOTE: Choose the special tool according to the line diameter.

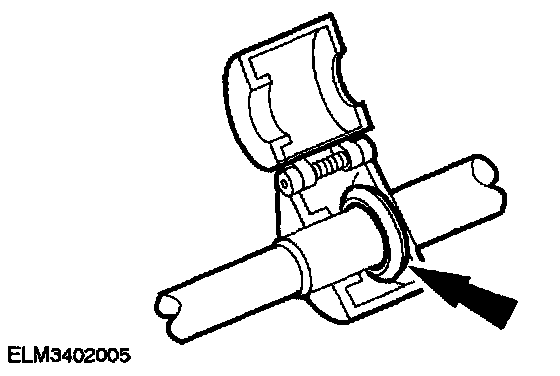

2. Separate the refrigerant line.
- Press the special tool into the locking spring.
- Separate the refrigerant lines.

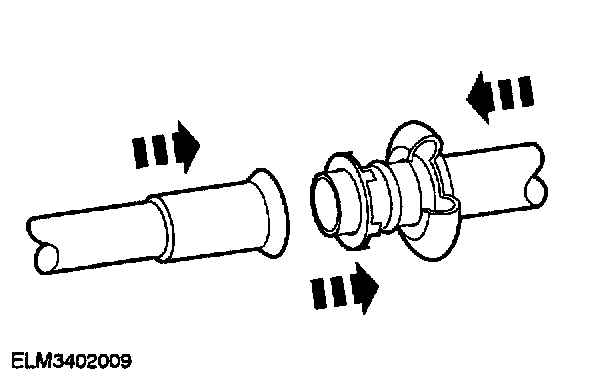

3. Connect the refrigerant line.
- Check the locking spring for damage.
- Carefully remove damaged locking springs with a thin wire, and renew them.

NOTE: Wear lint-free gloves only to avoid getting dirt on the O-rings.

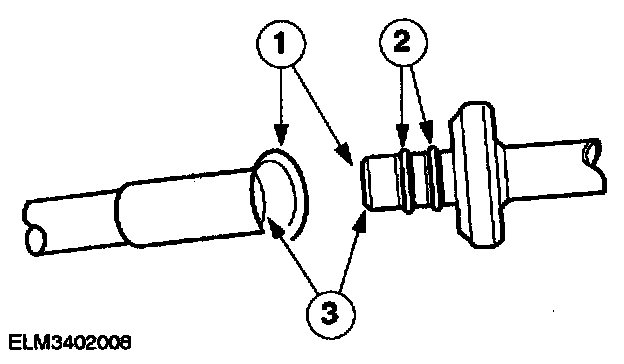

4. Connect the refrigerant lines (continued).
- Detach the O-rings using Special Tool 100-010.
1. Clean the connections using refrigerant oil and a lint-free cloth.
2. Insert new O-rings.
3. Lubricate the connections and O-rings with refrigerant oil.

CAUTI0N: Never lubricate connections and O-rings with mineral oil.

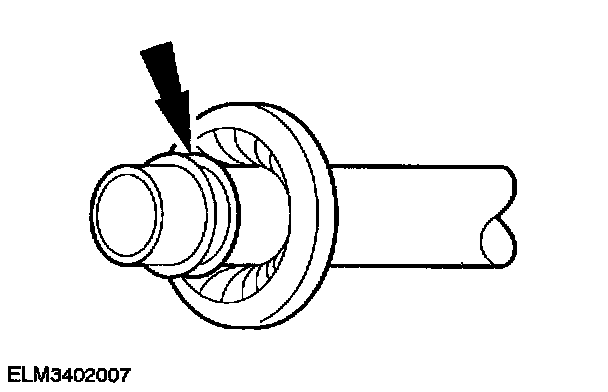

5. Assemble the refrigerant line.
- Press the indicator ring into the locking spring and assemble the refrigerant line.
- Check that the locking spring is engaged, i.e. that the indicator ring has jumped out.
