Home >> Ford >> 2000 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test H: CTM Does Not Respond to the Scan Tool

Test H: CTM Does Not Respond to the Scan Tool

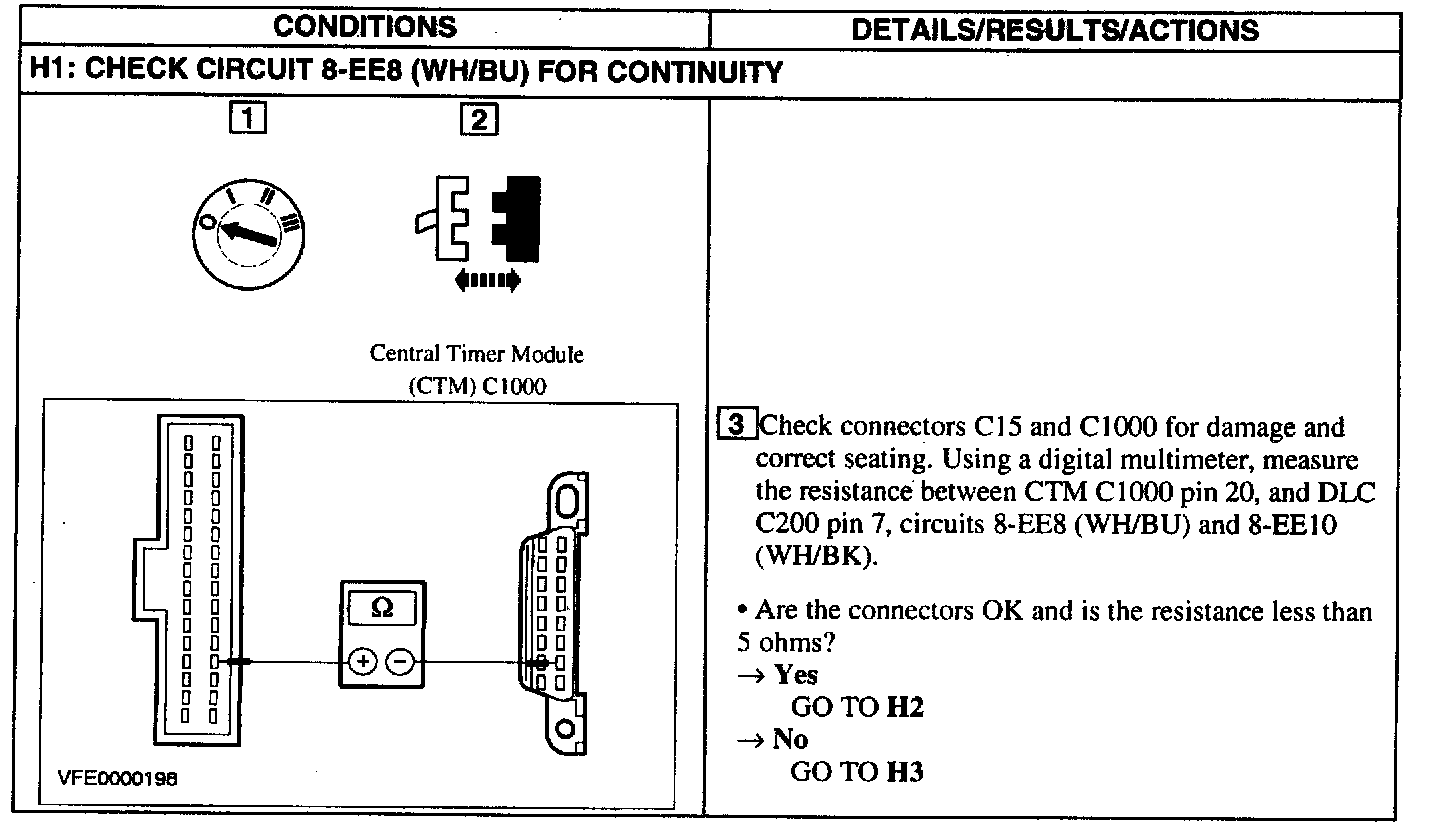

H1:

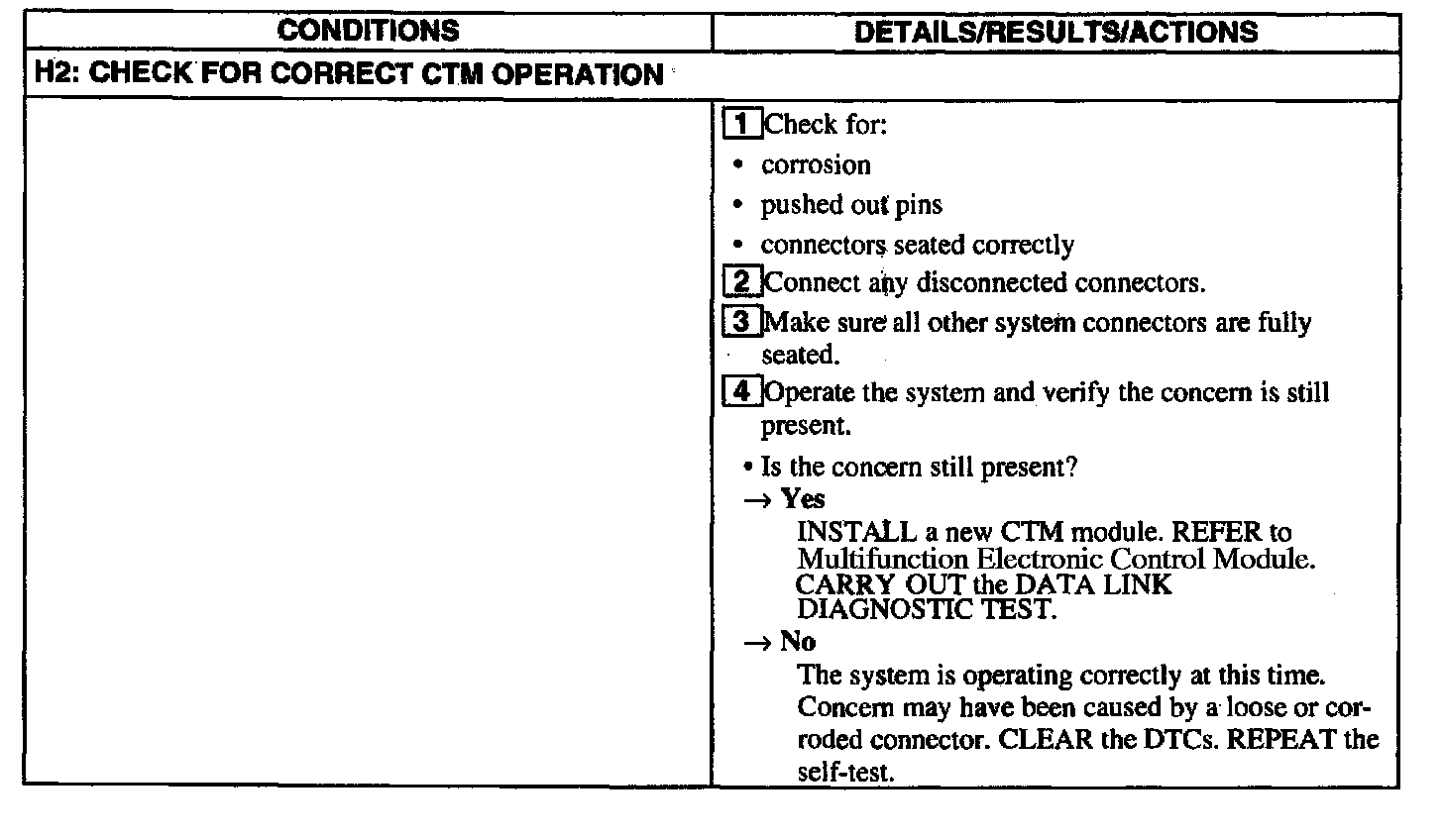

H2:

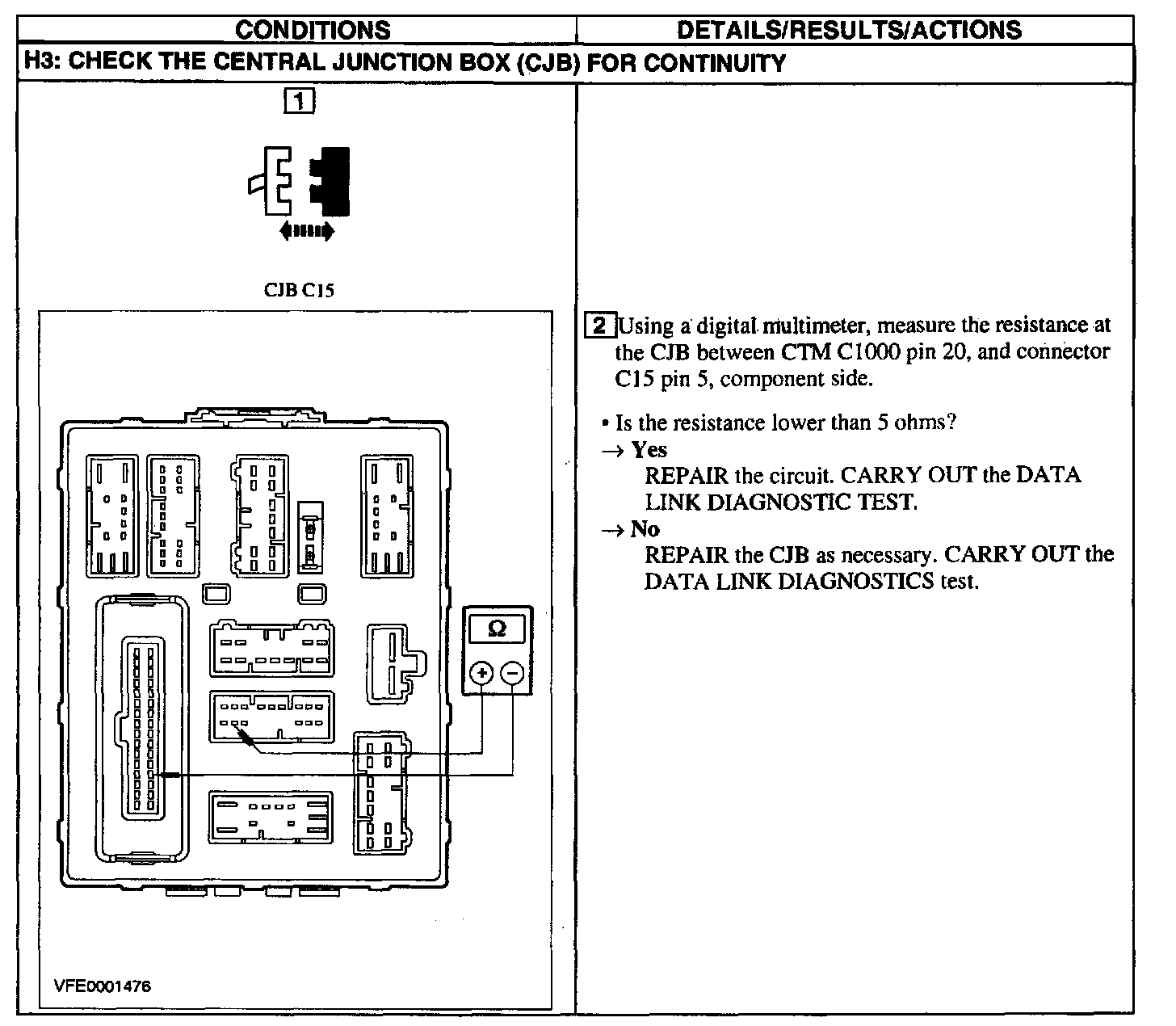

H3:
