Battery Tray

REMOVAL
1. Remove the battery. For additional information, refer to Battery.

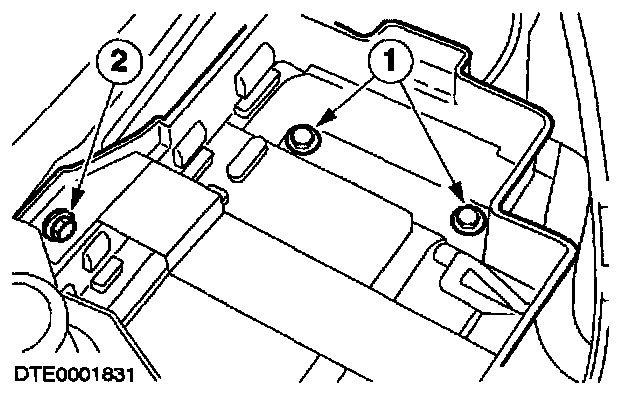

2. Remove the battery tray.
1. Remove the lower bolts.
2. Remove the upper bolt.
^ Remove the battery tray.


NOTE: Remove the bolts in the sequence shown to avoid damaging the battery tray.

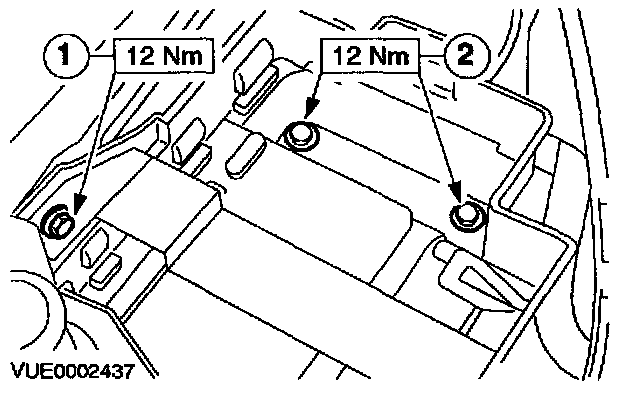

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Loosely install all bolts and tighten in the correct sequence.
